Wire Rod Sheet Uncoiler Uncoiling Leveling Machine For Making And Knives And Scissors

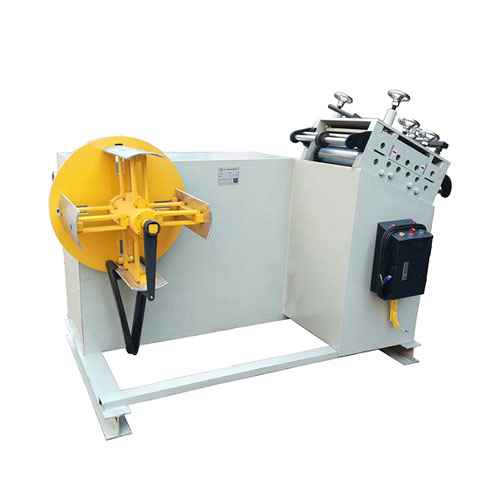

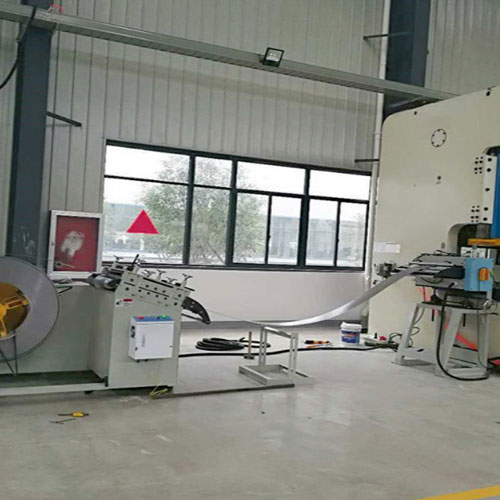

By combining the uncoiler and leveling machine into one frame, the TL series eliminates the transition section between standalone units. This reduces total line length, simplifies material threading, and removes a common source of strip misalignment that can cause downstream stamping defects.

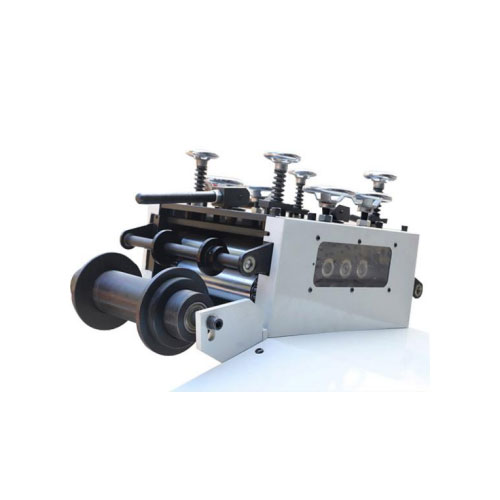

Adjustable straightening rollers remove coil set and crossbow from strip material, delivering consistently flat stock to the punch press. Accurate leveling is critical in cutlery manufacturing where uneven blanks lead to dimensional errors during grinding and sharpening.

Ten models span widths from 200 mm to 600 mm and two thickness ranges (0.5–4.5 mm and 1.0–6.0 mm). Whether you produce paring knife blanks from thin-gauge 420-series stainless or heavy scissor forgings from thicker coil, there is a matching configuration without paying for excess capacity.

The machine frame is built from heavy-gauge steel plate to resist deflection under coil loads up to 2,000 kg. Pneumatic-assisted mandrel engagement and hydraulic expansion options reduce operator fatigue and speed up coil changeovers on multi-shift production floors.

Every machine ships with a one-year warranty covering replacement parts for quality-related issues at no charge. NTBOBO maintains an inventory of over 300 mould sets and standard wear components, keeping lead times short for spare parts ordered at cost after the warranty period.
