Spiral Filter Core Tube Seam Welding Machine
Automated spiral forming, welding, and cutting for filter core tubes in one machine.
Industrial tube forming machine designed for filter manufacturers and heat exchanger producers requiring consistent spiral-welded stainless steel tubes. Consolidates multiple production steps into one automated line, reducing equipment investment and floor space while maintaining precise weld quality across diameter ranges from 25mm to 350mm.
Key Specs
Key Specs
Overview Points
Universal Diameter Range
Material Flexibility
Continuous Production Line
Extended Runtime Capacity
Finished Tube Handling
Adjustable Processing Speed
Modular Installation Design
Key Features
A single machine handles tube diameters from 25mm to 350mm, eliminating the need for multiple units on the production floor. This consolidation reduces capital expenditure, floor space requirements, and changeover time between product runs.

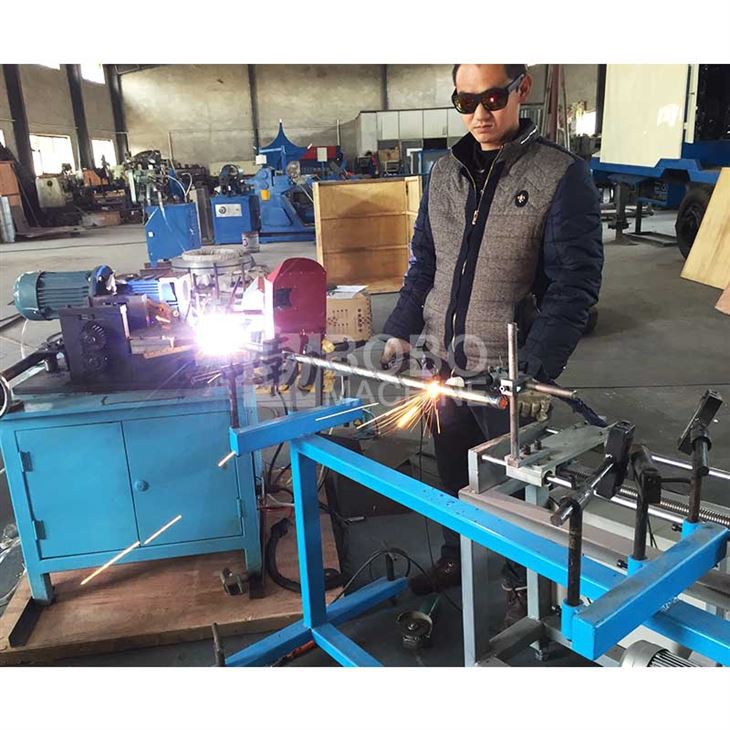

The machine performs spiral strip forming, argon arc welding (RL-300), and plasma cutting without manual intervention between stages. Operators load the coil, set parameters on the control panel, and the system delivers finished, cut-to-length welded tubes continuously.

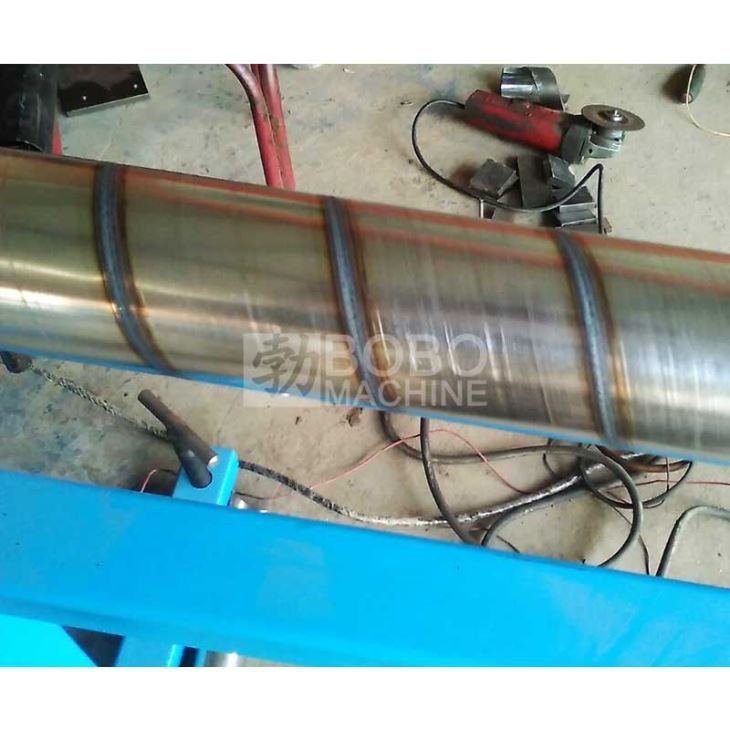

Automated argon arc welding with an integrated wire feed mechanism ensures uniform seam penetration and bead appearance across every tube. Adjustable speed control lets operators fine-tune heat input for different strip thicknesses, preventing burn-through on thin material and incomplete fusion on heavier gauges.
The 1,000kg decoiler accommodates large coils for longer uninterrupted runs, while the 2,000mm unloading rack provides stable support for finished tubes. Together, these reduce downtime from coil changes and manual tube removal.
The painted steel frame is built for continuous industrial use. Modular sections — forming, welding, cutting, and material handling — allow targeted maintenance without shutting down the entire line, keeping uptime high.
Technical Specifications
Applications
Filter core tube manufacturing for water, oil, and air filtration systems
Heat exchanger housing tube production
Perforated spiral tube fabrication for industrial screening
Thin-wall stainless steel tube production for food and beverage processing equipment
Spiral tube manufacturing for environmental and chemical filtration
General thin-wall SS pipe production for industrial applications
Video
FAQ
Spiral Filter Core Tube Seam Welding Machine is widely used in: Filter core tube manufacturing for water, oil, and air filtration systems; Heat exchanger housing tube production; Perforated spiral tube fabrication for industrial screening; Thin-wall stainless steel tube production for food and beverage processing equipment.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
