Semi-rigid Stainless Steel Duct Machine
Produce high-quality semi-rigid stainless steel ducts in continuous, unlimited lengths.
Industrial forming machine that spirally converts 304 stainless steel strip into corrugated semi-rigid ducts from 80-500mm diameter. Designed for HVAC manufacturers requiring continuous production without joints, serving exhaust, kitchen, and chemical-resistant ventilation applications.
Key Specs
Key Specs
Overview Points
Complete Diameter Range
Continuous Coil Operation
PLC Touchscreen Control
Material Flexibility
Regional Standards
Compact Installation
Custom Roller Profiles
Production Speed
Key Features

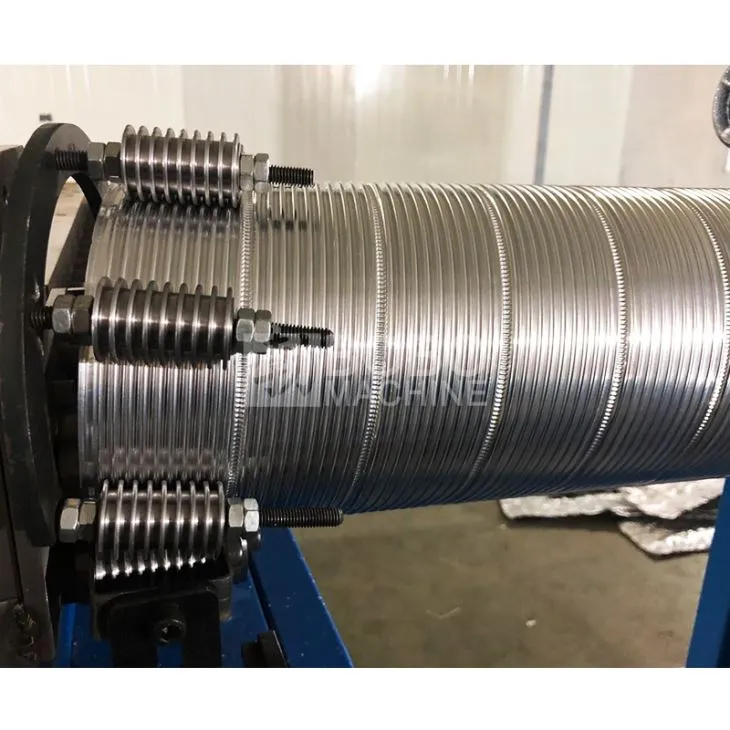

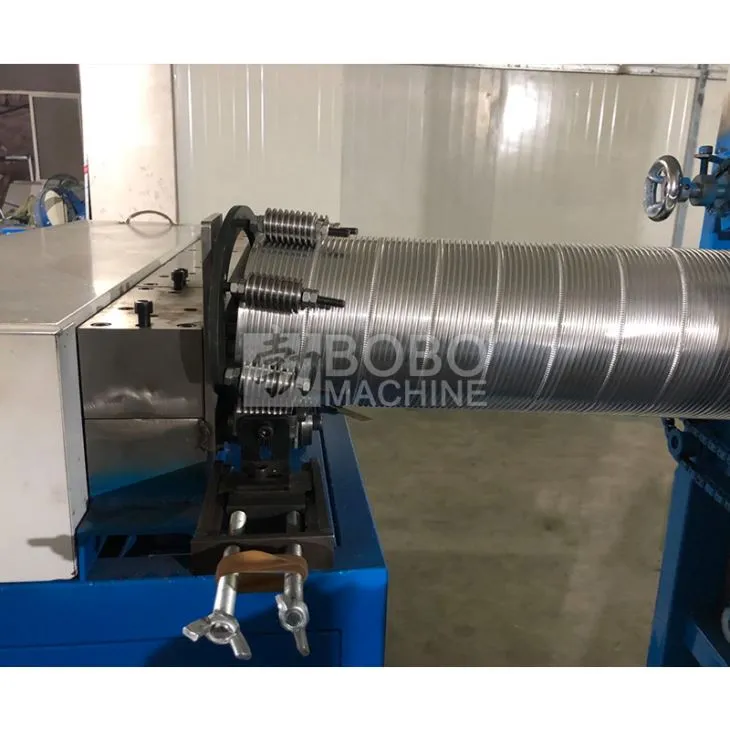

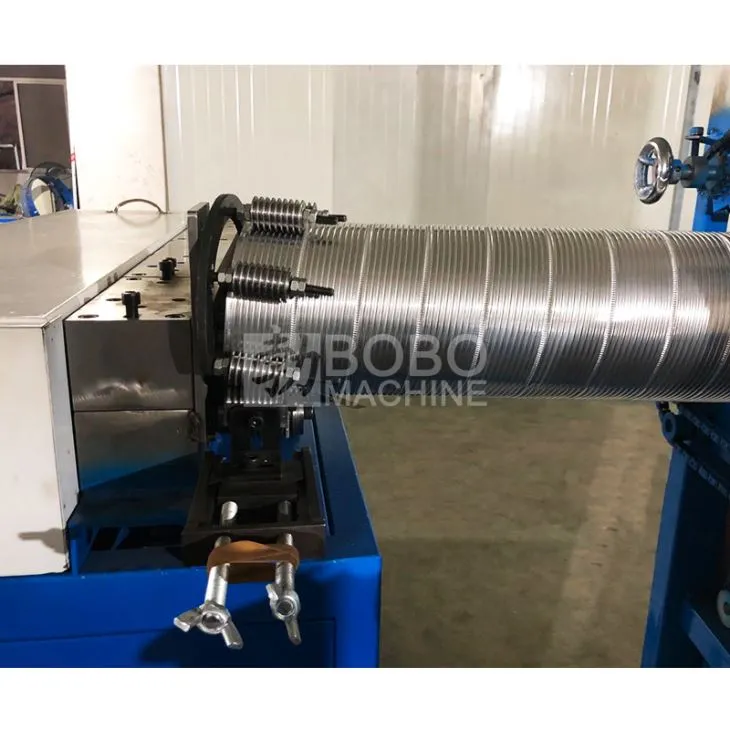

The forming head uses custom-machined rollers to spirally interlock stainless steel strip into a uniform corrugated profile. Each rib is consistently shaped, ensuring the finished duct maintains its rated flexibility and pressure resistance across the full 80–500mm diameter range.
A Delta PLC paired with a touchscreen panel gives operators direct control over feed speed, forming parameters, and diagnostics. Setup changes between duct diameters are straightforward, reducing downtime between production runs.
Designed for 304 stainless steel strip from 0.05mm to 0.20mm thick, the machine handles the material grades demanded by high-temperature exhaust, chemical-resistant ventilation, and food-grade kitchen ducting — all on one platform.

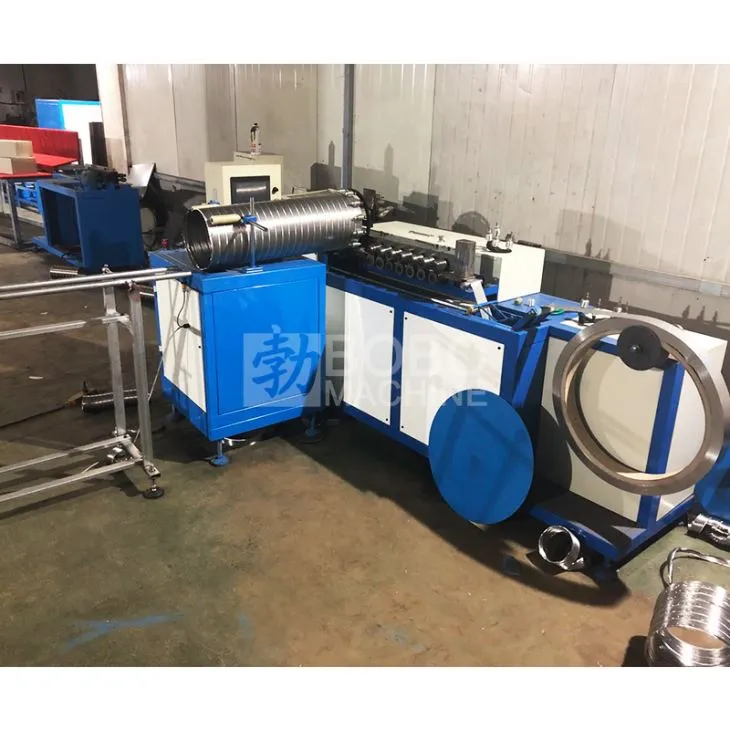

Built on a rigid painted steel frame, the machine weighs 450kg and requires only 3 kW of motor power. Its 2300mm × 800mm footprint allows integration into tight workshop layouts without sacrificing structural stability during continuous operation.
Lock seam tooling is available in both CN and EU configurations, enabling manufacturers to produce ducts that meet the installation standards of their target markets without retooling from a separate supplier.
Technical Specifications
Applications
HVAC exhaust and ventilation duct manufacturing
Kitchen and stove liner duct production
High-temperature industrial exhaust piping
Chemical-resistant ventilation systems
Building and construction smoke extraction ducts
Factory equipment air extraction and vacuum lines
Video
FAQ
Semi-rigid Stainless Steel Duct Machine is widely used in: HVAC exhaust and ventilation duct manufacturing; Kitchen and stove liner duct production; High-temperature industrial exhaust piping; Chemical-resistant ventilation systems.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
