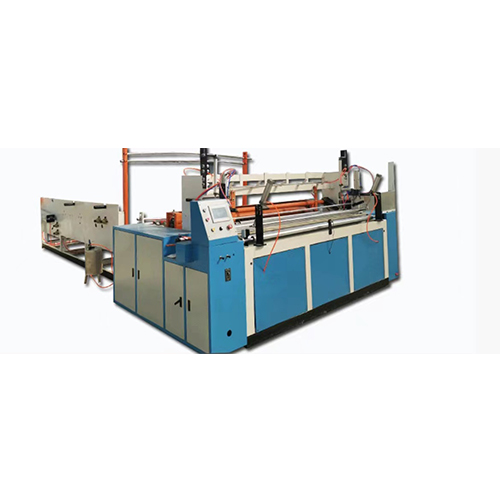

Toilet Paper Rewinding Machine
Automatic toilet paper rewinding with coreless roll capability and integrated glue, seal, and trim.
Industrial toilet paper rewinding system designed for converting plants requiring multi-format flexibility. Features pneumatic feeding, independent tension control, and integrated PLC automation to streamline coreless roll production while maintaining consistent quality across centerless, solid-core, and roll-up formats.
Key Specs
Key Specs
Power
Weight
Speed
Voltage
Overview Points
Multi-Format Flexibility
Pneumatic Belt Feeding
Independent Tension Control
Integrated PLC Automation
Variable Speed Control
Compact Footprint
Standard Power Requirements
Production Capacity
Key Features
Switch between centerless, solid-core, and roll-up toilet paper production without retooling. The quick-changeover design lets operators respond to order variations within minutes, not hours, keeping utilization rates high across mixed-product schedules.
Each base paper feed and the rewinding shaft feature independent tension adjustment mechanisms. This granular control prevents wrinkles, telescoping, and uneven density — critical for producing rolls that meet retail packaging and consumer quality standards.
The PLC programming system coordinates automatic glue spraying, edge sealing, and trimming in a continuous sequence. By eliminating separate manual stations, the machine reduces labor requirements and delivers repeatable results roll after roll.
A frequency-controlled 5.5 kW motor drives the line from 0 to 180 m/min, giving operators precise speed matching for different paper grades. The modest power rating keeps per-unit energy costs well below those of comparable-capacity machines.
Built on a rigid painted-steel frame weighing 2 tons, the machine maintains stability during high-speed operation. Its 5.4 m × 3.5 m footprint is sized for integration into standard tissue-converting workshops without structural reinforcement.
Technical Specifications
The automatic paper reeling machine adopts pneumatic belt feeding, and the rewinding shaft and each base paper have an independent tension adjustment mechanism. Equipped with processing centerless, solid, and roll-up toilet paper, the switch between products can be completed in an instant. The machine adopts PLC computer programming technology to automatically spray glue, frequency control, edge sealing and trimming at one time.
| NO. | Item | Parameter |
| 1 | Mother roll width | less than 2200MM |
| 2 | Sub-roll width | less than 2200MM |
| 3 | Mother roll diameter | less than 1200MM |
| 4 | Sub-roll diameter | less than 200MM |
| 5 | Sub-roll mandrel mode | automatic coreless roll |
| 6 | Sub-roll off machine | manual |
| 7 | Embossing function | none |
| 8 | The maximum width of the whole machine | 3.5 meters |
| 9 | The maximum length of the whole machine | 5.4 meters |
| 10 | Working voltage | 380V |
| 11 | Motor power | 5.5KW |
| 12 | Mechanical line speed | 0-180M/min |
| 13 | Machine weight | 2T |
Applications
Toilet paper and bathroom tissue converting
Coreless toilet roll production
Tissue paper rewinding and slitting for private-label brands
Small to mid-scale tissue converting plants
Paper product manufacturing for retail and institutional supply
Video
FAQ
The key specifications of Toilet Paper Rewinding Machine include: Power: 5.5KW, Weight: 2T, Speed: 0-180M/min, Voltage: 380V. Contact us for the full specification sheet.
Toilet Paper Rewinding Machine is widely used in: Toilet paper and bathroom tissue converting; Coreless toilet roll production; Tissue paper rewinding and slitting for private-label brands; Small to mid-scale tissue converting plants.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
