Three Axis Foam Injection Machine

Automated three-axis polyurethane seal pouring with precision dispensing and programmable path control.

Industrial polyurethane foam dispensing system for manufacturers producing weatherproof seals and gaskets. Servo-controlled three-axis gantry eliminates manual positioning while precision metering pumps deliver consistent bead dimensions from 0.5-5 g/s across 2200×1200mm work areas.

View Products

Key Specs Overview Technical Specifications Applications Video FAQ Contact Related

Key Specs

Speed

8-25

Capacity

0.5-3

Overview Points

Servo Gantry System

Three-axis servo gantry pours square, rectangular, custom shapes via LCD control on 2200×1200mm area

Precision Mini Pouring

0.5–5 g/s output with fine adjustment produces Shore A10–20 self-skinned seals with smooth finish

Dual Configuration Models

GZ20F-I flat-type and GZ20F-II groove-type handle 8–25 m/min head speeds across full work envelope

Automated Material Tanks

Three-layer stainless tanks with mixers, auto-feed, temperature control maintain 100:20–32 ratio

High Precision Metering

Low-speed metering pumps with numerical display ensure repeatable dispensing and temperature control

Multi Mode Injection

Head switches between pouring, recirculation, cleaning modes with pneumatic positioning system

Computer Parameter Control

Hydraulic pressure, temperature, volume parameters eliminate manual adjustment and operator dependency

Wide Viscosity Range

Handles 1000–3000 CPS mixed material viscosities across polyurethane sealing formulations

Key Features

Precision Dispensing System

The low-speed, high-precision metering pump paired with a dedicated mini pouring head delivers output as fine as 0.5 g/s with numerical display feedback. Fine-adjustment controls allow operators to dial in exact bead dimensions, producing consistent self-skinned sealing strips at Shore A10–20 hardness across every cycle.

Programmable Three-Axis Motion

Servo motor-driven X, Y, and Z axes follow LCD computer-programmed paths at speeds from 8 to 25 m/min across a 2200 × 1200 mm working area. This enables fully automatic pouring of square, rectangular, and irregular seal profiles without manual head repositioning.

Automated Material Management

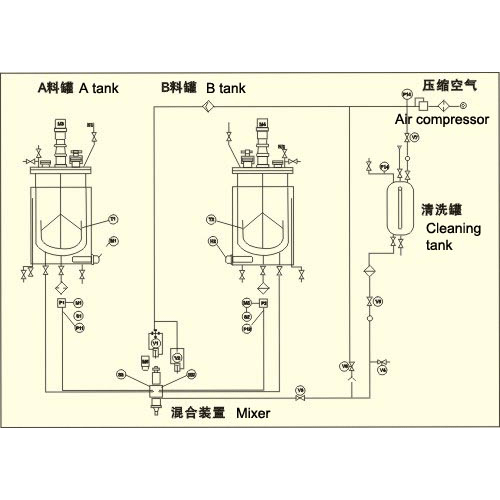

Dual three-layer stainless steel tanks maintain component temperature automatically while integrated mixers, auto-feeding, and level indicators keep the 100:20–32 mix ratio stable. Cooling systems on the pump side prevent premature reaction in the feed lines, protecting material integrity throughout long production runs.

Self-Cleaning Injection Head

The pouring head transitions automatically between pouring, back-cycle, and cleaning positions. After each pour, pneumatic actuation moves the head to a cleaning station where a program-controlled sequence flushes residual material — reducing manual maintenance and preventing nozzle blockage between cycles.

Integrated Process Control

Hydraulic pressure, material temperature, and pour volume are monitored and regulated through a centralized computer control system. Operators set parameters once; the machine maintains them automatically, delivering repeatable seal quality with minimal intervention across flat-type and groove-type applications.

Technical Specifications

1. The main performance of this machine has reached the advanced level of same line of imported equipment, and with features such as full automation, reliable performance, convenient operation and maintenance.

2. This machine can pour sealing strip with different shape on a plate or groove to meet the requirement, its thin self-skinned surface id smooth and elastic, its Shaw hardness id A10~20. In order to pour sealing strip reliably, the machine had equipped with a precise mini pouring system with features of fine adjustment and reliable pouring.

3. The auto serve motor drive system equipped with LCD computer control automatically the pouring process to meet the shape required by customer.

Items	GZ20F-I(Flat type)	GZ20F-II(Groove type)
Output Capacity (g/s)	0.5-3	3-5
Mixture Ratio	100:20-32	100:20-32
Effective Working Size X/Y (mm)	2200 x 1200	2200 x 1200
Moving Speed (m/min)	8-25	8-25
Viscidity Of Mixed Material (CPS)	1500-3000	1000-1500

Applications

Foam-in-place gasket sealing for electrical enclosures and control cabinets

Polyurethane door and window seal strip production

HVAC panel and air handling unit gasket pouring

Automotive filter and lighting housing seal application

Refrigerator and freezer door seal manufacturing

Industrial equipment cover and lid gasket forming

Video

FAQ

What are the main specifications of Three Axis Foam Injection Machine?

The key specifications of Three Axis Foam Injection Machine include: Speed: 8-25, Capacity: 0.5-3. Contact us for the full specification sheet.

What applications is Three Axis Foam Injection Machine used for?

Three Axis Foam Injection Machine is widely used in: Foam-in-place gasket sealing for electrical enclosures and control cabinets; Polyurethane door and window seal strip production; HVAC panel and air handling unit gasket pouring; Automotive filter and lighting housing seal application.
