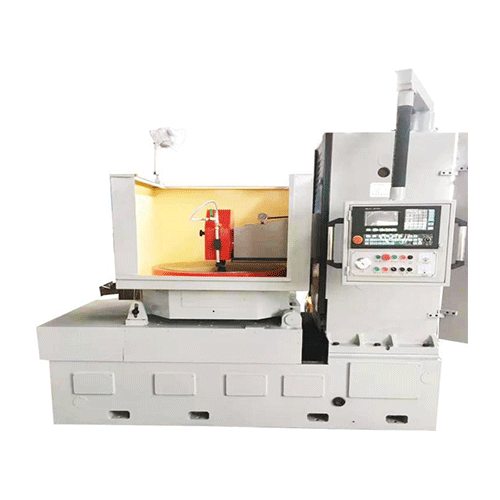

Surface Grinding Machine
Rotary surface grinder delivering 0.003mm flatness with operator-friendly automated controls.
Heavy-duty rotary surface grinder engineered for high-volume production environments requiring sub-micron flatness. Combines automated grinding cycles with intuitive controls, enabling operators without specialized training to achieve precision finishing on molds, bearings, and optical components.
Key Specs
Key Specs
Power
Weight
Dimension
Speed
Overview Points
Precision Tolerances
Heavy Capacity
Simple Controls
Automated Cycles
Powerful Spindle
Servo Precision
Wet Grinding
Vibration Resistance
Key Features
With a verified machining flatness of 0.003mm, this rotary surface grinder handles demanding applications in mold manufacturing, bearing finishing, semiconductor wafer processing, and optical component production. The heavy 3,500kg cast-iron construction minimizes vibration and thermal drift, ensuring dimensional consistency even during extended grinding cycles.

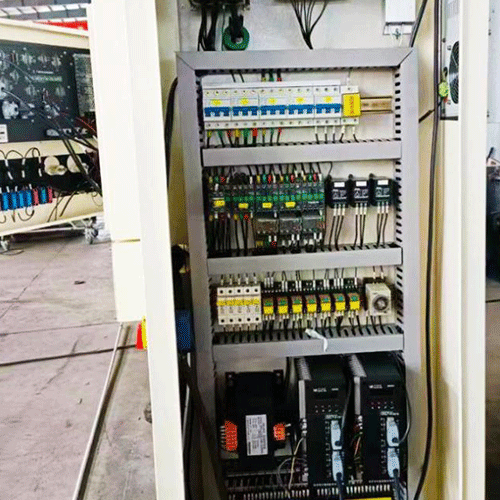

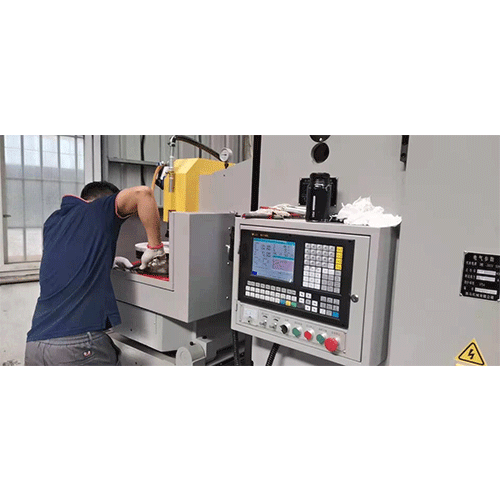

The built-in control system lets operators define grinding parameters through a clear, dialogue-based interface, then executes the entire procedure automatically. Cycle automation reduces idle time between passes, improves throughput, and eliminates the variability that comes with manual operation.
Unlike conventional surface grinders that demand years of hands-on experience, this machine’s preset grinding modes guide operators step by step. New staff can produce precision results quickly, reducing training costs and dependence on specialized labor. NTBOBO provides free training at our facility in China and offers on-site installation support worldwide.
The Φ630mm rotary table handles workpieces up to 250kg and adjusts from 40 to 450 r/min, giving operators full control over surface speed for different materials — from hardened steel to carbide tooling. A dedicated 2.2kW table motor delivers stable rotation under load.
Both the vertical lift and worktable reciprocation use 1kW/6Nm servo motors, providing smooth, accurate motion control. Vertical rapid traverse reaches 300mm/min for quick positioning, while fine servo increments maintain precision during the grinding pass.
Technical Specifications
Surface Grinding machine applies to grind and process the general metal,super hard materials, molds and bearings in the field of saw
blade ,automobile parts,semi-conductor and optical.
The simple and concise dialogue operation and control system can let operator select grinding mode easily and enter the grinding parameters in accordance with the presetting interface to realize an relaxed auto grinding. The grinding procedure can not only be cycled automatically,but also can shorten working hours,improve working efficiency and realize consistent machining accuracy. This machine does not need any senior grinding technology or high academic qualifications;even for an operator who does know who to operate the grinding machine, he/she can easily learn and seize an extraordinary precision grinding technique from this machine.
We offer free training here in China. Also we can send technicians oversea for whole line installation and training. The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer.
The guarantee period is one year since the date B/L. During this period, we will offer free parts for changing if machine quality problem. Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.
| Diameter of workbench | Φ630mm |
| Max.dimension of allowable work piece(Diameter*Height) | Φ630mm*100mm |
| Rotating speed of workbench | 40-450r/min |
| Max.load of workbench | 250Kg |
| Rotating speed of main axis of grinding wheel | 1450r/min |
| Dimension of grinding wheel(external*width*inner diameter) | Φ350*40*Φ127mm |
| Vertical rapid lift | 300mm/min |
| Machning flatness | 0.003 |
| Power of motor of main axis of grinding wheel | 7.5KW |
| Servo motor of vertical lift | 1KW 6NM |
| Reciprocating servo motor of workbench | 1KW 6NM |
| Motor of water pump | 90W |
| Rotating motor of workbench | 2.2KW |
| Net weight of grinding machine | 3500Kg |
Applications
Mold and die surface finishing
Bearing race and face grinding

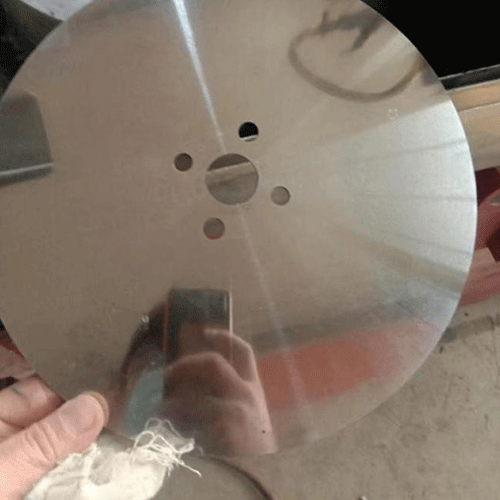

Saw blade blank processing
Automobile part precision grinding
Semiconductor substrate lapping
Optical component surface preparation
Video
FAQ
The key specifications of Surface Grinding Machine include: Power: 7.5KW, Weight: 3500Kg, Dimension: Φ630mm*100mm, Speed: 40-450r/min. Contact us for the full specification sheet.
Surface Grinding Machine is widely used in: Mold and die surface finishing; Bearing race and face grinding; Saw blade blank processing; Automobile part precision grinding.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
