PVC Label Suren Hot Shrink Sleeve Labeling Printing Machine

PVC Label Suren Hot Shrink Sleeve Labeling Printing Machine

Automatic sleeve labeling with integrated shrink tunnel for 150 bottles per minute.

PVC sleeve labeling system designed for high-volume packaging operations requiring tamper-evident or full-body branding. Handles diverse bottle geometries from 28-125mm diameter with integrated shrink tunnel eliminating secondary processing steps.

View Products

Key Specs Overview Technical Specifications Applications Video FAQ Contact Related

Key Specs

Power

2kw

Dimension

2000*1050*2000mm

Capacity

150 bottles/min

Voltage

380V/220V

Overview Points

Universal Bottle Compatibility

Labels bottles 28-125mm diameter including round, square, and irregular shapes on single line

Integrated Shrink Tunnel

Built-in heat distribution system ensures wrinkle-free label conformity to bottle contours

150 BPM Throughput

Processes 150 bottles per minute through synchronized conveyor for continuous production flow

Flexible Label Range

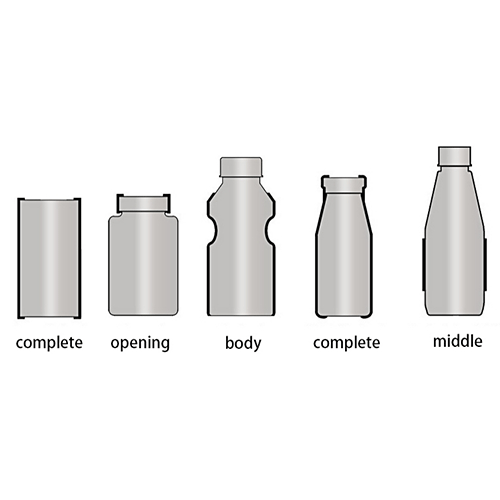

Accepts 30-250mm lengths, 0.03-0.13mm thickness for partial wraps to full-body sleeves

Motor Height Adjustment

Quick changeover between bottle sizes and label rolls reduces production downtime

Precision Cutting System

Specialized cutter head delivers clean film cuts, minimizing waste and eliminating ragged edges

PLC Touch Control

Touchscreen HMI with fault alarms enables monitoring and diagnostics with minimal intervention

Compact Design

2000×1050×2000mm footprint integrates into existing lines without major modifications

Key Features

Precise Label Application

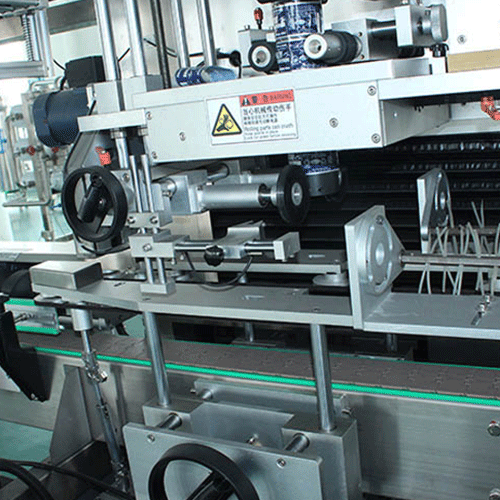

The dedicated cutter head geometry delivers clean, repeatable cuts across label thicknesses from 0.03mm to 0.13mm. Combined with servo-synchronized label feeding, each sleeve is positioned accurately before heat shrinking, producing consistent branding results across every bottle in a production run.

High-Throughput Continuous Operation

Rated at 150 bottles per minute, the machine uses a conveyor-fed workflow that keeps product moving from sleeve insertion through the integrated shrink tunnel without manual handling. This eliminates bottlenecks between labeling and shrinking stages.

Fast Format Changeover

Motor-driven height adjustment and adjustable paper core support (5″ to 10″) let operators switch between bottle diameters (28mm–125mm) and label sizes without tools. Changeover time stays short, which matters on lines running multiple SKUs per shift.

Operator-Friendly Controls and Diagnostics

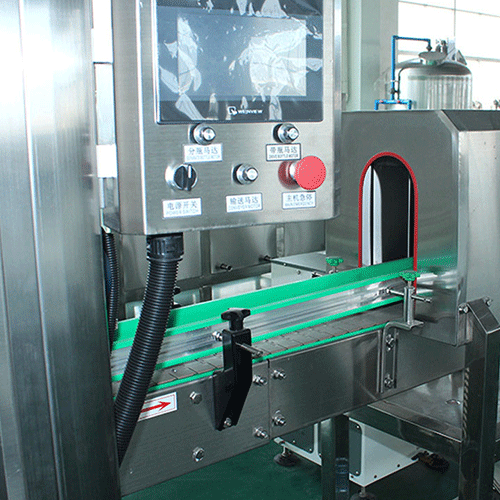

The PLC control system pairs with a touchscreen HMI panel that displays real-time machine status. Indicator lights and fault alarms flag issues immediately, allowing operators to resolve problems before they affect output quality or cause unplanned stops.

Safety and Build Quality

Transparent polycarbonate guarding around the labeling head gives operators full visibility while keeping hands clear of moving parts. An emergency stop button is prominently positioned on the control panel. The stainless steel frame and components resist corrosion in humid or washdown-prone packaging environments.

Technical Specifications

PVC Label Suren Hot Shrink Sleeve Labeling Printing Machine adopts international advanced technology, cover the different label on the different bottles, and then hot shrinking to fix on the position.

The height adjustment adopts motor fluctuating, it is convenient to replace the material. The special cutter head designing, make the film-rolling cut mor exactly and reliably.

We offer free training here in China.

Also we can send technicians oversea for whole line installation and training. The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer.

The guarantee period is one year since the date B/L.

During this period, we will offer free parts for changing if machine quality problem. Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.

Item	Description
Power	2kw
Voltage	380V/220V
Production Capacity	150 bottles/min
Dimension	200010502000mm
Applicable Diameter of Bottle	28mm-125mm
Applicable Length of Label	30mm-250mm
Applicable Thickness of Label	0.03mm~0.13mm
Applicable Internal Diameter of Paper	5”~10′ (Adjustable)

Applications

Beverage bottling lines — water, juice, soft drinks, and dairy products

Food packaging — sauces, condiments, and seasoning containers

Cosmetics and personal care product labeling

Pharmaceutical and health supplement bottle packaging

Household chemical and cleaning product labeling

Tamper-evident sleeve application for retail-ready products

Video

FAQ

What are the main specifications of PVC Label Suren Hot Shrink Sleeve Labeling Printing Machine?

The key specifications of PVC Label Suren Hot Shrink Sleeve Labeling Printing Machine include: Power: 2kw, Dimension: 2000*1050*2000mm, Capacity: 150 bottles/min, Voltage: 380V/220V. Contact us for the full specification sheet.

What applications is PVC Label Suren Hot Shrink Sleeve Labeling Printing Machine used for?

PVC Label Suren Hot Shrink Sleeve Labeling Printing Machine is widely used in: Beverage bottling lines — water, juice, soft drinks, and dairy products; Food packaging — sauces, condiments, and seasoning containers; Cosmetics and personal care product labeling; Pharmaceutical and health supplement bottle packaging.

What is the warranty for NTBOBO machines?

All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.

What payment terms does NTBOBO accept?

We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
