Portable Seam Locker
Close Pittsburgh seams in a single pass with a 500W portable electric tool.
Industrial handheld seamer for HVAC contractors and fabrication shops requiring precise Pittsburgh lock closure on rectangular ducts. Replaces manual hammering with automated roll-forming technology, enabling consistent seam quality in confined installation spaces where stationary equipment cannot operate.
Key Specs
Key Specs
Power
Speed
Overview Points
Automated Seam Closure
Material Range Coverage
True Field Portability
Production Speed Boost
Universal Flange Compatibility
Quiet Operation Power
Small Duct Access
Ergonomic Control System
Key Features

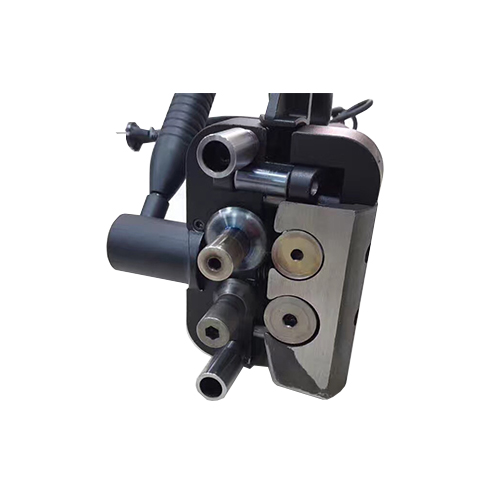

The roller assembly locks Pittsburgh seams in one continuous pass along the duct length, producing a uniform, airtight joint without repositioning. This eliminates the inconsistencies common with manual mallets and hand seamers, improving duct integrity and reducing air leakage across the system.
Unlike stationary seam-closing machines, this tool is designed to go where the ductwork is. Weighing only a few kilograms and powered through a standard electrical outlet, it can be carried up ladders, across rooftops, and into tight mechanical spaces — making it practical for both prefabrication shops and field installation crews.
With a working range of 0.6–1.5 mm plate thickness and 8–12 mm flange heights, the tool covers galvanized steel, aluminum, and stainless steel sheets used across residential, commercial, and industrial duct systems. No tooling swaps are needed within this range.
The 500W motor drives the forming rollers at 6–10 m/min, fast enough to maintain production pace yet controlled enough to follow curved duct profiles without deforming the seam. Motor-driven operation removes operator speed variation from the process.

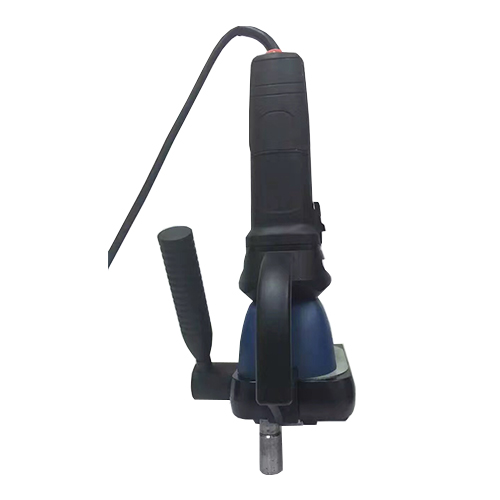

The dual-handle layout distributes reaction force between both hands, reducing wrist strain during long seaming runs. The auxiliary handle also acts as a guide lever, letting the operator steer the tool smoothly along straight or radiused seams.
Technical Specifications
The Tool is ideal for closing straight or curved Pittsburgh seam ducts. Using an automatic roll forming operation, the tool quickly and quietly closes the seam automatically in a single pass.
| Plate Thickness(mm) | 0.6-1.5 |
| Flange Height | 8-12mm |
| Minimum Inner Dia.(mm) | 300 |
| Minimum Outer Dia(mm) | 500 |
| Working Speed (m/min) | 6-10 |
| Motor Power(w) | 500 |
Applications
Commercial HVAC rectangular duct installation and on-site seaming
Prefabrication shops producing Pittsburgh-lock ductwork
Rooftop and mechanical room retrofit projects with limited workspace
Industrial ventilation system assembly and maintenance
Residential HVAC duct fabrication for custom fittings
Construction-site duct joining where stationary equipment is impractical
Video
FAQ
The key specifications of Portable Seam Locker include: Power: 500, Speed: 6-10. Contact us for the full specification sheet.
Portable Seam Locker is widely used in: Commercial HVAC rectangular duct installation and on-site seaming; Prefabrication shops producing Pittsburgh-lock ductwork; Rooftop and mechanical room retrofit projects with limited workspace; Industrial ventilation system assembly and maintenance.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
