Plasma Cutting Machine BTF-I

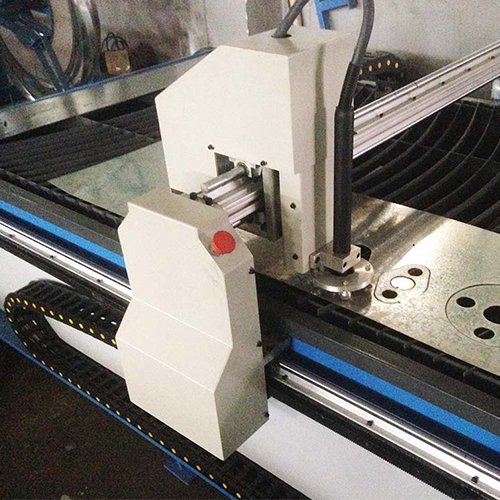

The X and Y axes ride on precision linear guide rails with a positioning tolerance of ±0.05 mm. Paired with Mitsubishi servo drives, the gantry delivers smooth, accurate torch travel — critical for tight-fitting duct elbows and transitions that must join without gaps or rework.

Operators can choose between Panasonic and Hypertherm plasma generators. Both brands are widely supported with consumables and service centers globally, so buyers can select the option that best fits their budget, local supply chain, or existing shop standardization.

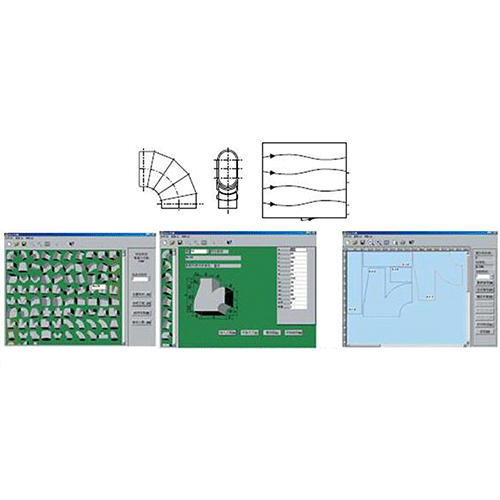

The DOS-based CNC controller displays cutting patterns and runs simulations before the torch fires. Operators can also program shapes manually, making the machine practical for both repeat production and one-off custom fittings without requiring external CAD/CAM software.

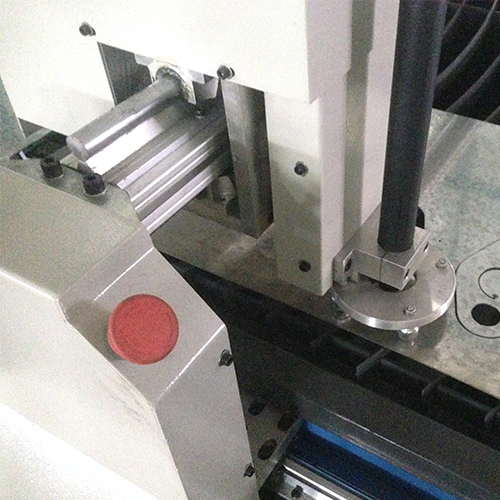

A float-sensing device continuously adjusts the cutting head height to maintain a consistent standoff distance from the sheet surface. This compensates for material bow or thermal distortion during cutting, producing uniform kerf width and clean edges across the full sheet.

The machine bed and gantry are fully welded steel construction — not bolted — providing high structural stability under continuous production loads. Frame rigidity minimizes vibration-induced inaccuracies, extending consumable life and maintaining cut quality over years of daily operation.
