Pittsburgh Lock Forming Machine

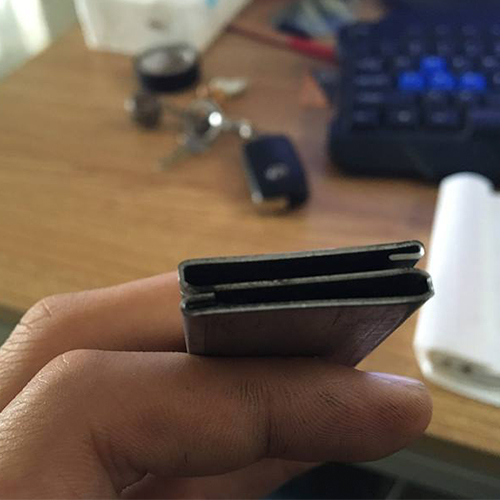

The progressive roller stations are machined to tight tolerances and hardened for long-term dimensional stability. Each pass incrementally forms the Pittsburgh lock geometry, producing uniform seam profiles that mate cleanly during duct assembly — reducing air leakage and rework on the production line.

Sheet metal feeds through the full roller train in one continuous pass, converting flat stock into a finished Pittsburgh lock edge without repositioning or secondary tooling. This streamlines workflow and helps fabrication teams meet daily output targets with fewer labor hours per duct section.

The painted steel frame, enclosed cabinet, and ventilated side panels protect internal drive components from the fine particulate generated during sheet metal processing. Bearings, gears, and the 2.1 KW motor are selected for continuous-duty operation in demanding manufacturing environments.

At 1230 × 660 × 1000 mm, the machine occupies minimal floor space. Lockable casters and integrated handles let operators wheel it between cutting stations, TDC flange formers, or directly to assembly areas — useful in both permanent shops and temporary job-site setups.

A clearly positioned control panel and straightforward sheet input guide reduce setup time and training requirements. Operators can begin producing quality Pittsburgh lock seams with minimal instruction, keeping new-line startups on schedule.
