PE Liner Extruding Line
Automated PE liner extrusion with integrated cooling, vacuum, and haul-off systems.
Industrial PE liner extruding line transforms raw plastic granules into continuous inner liners for conduit and cable protection applications. Designed for manufacturers requiring consistent wall thickness and dimensional accuracy in high-volume production environments.
Key Specs
Key Specs
Overview Points
Automated Feed Process
Precision Screw Design
Variable Speed Control
Four-Zone Heating
Vacuum Sizing System
Controlled Drawing
Low-Noise Operation
Centralized Controls
Key Features
The 70mm 38CrMoAlA screw with a 1:25 compression ratio delivers uniform plasticization of PE granules across the full 0–100 RPM speed range. Four independently controlled cast aluminum heating zones and matched cooling fans keep barrel temperatures stable, preventing material degradation and ensuring repeatable liner wall thickness from batch to batch.

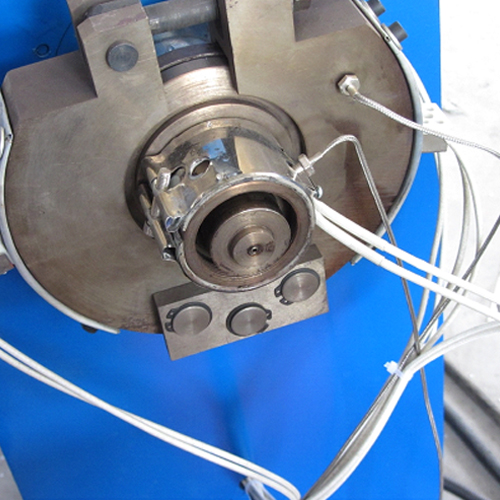

A dual-tank vacuum system with dedicated pump, ball valves, and vacuum gauge calibrates liner dimensions immediately after the die head. This closed-loop sizing process produces smooth, dimensionally accurate PE liners without secondary finishing, reducing scrap rates and downstream rework.
The haul-off unit combines a stainless steel spray-cooling tank, five pulley sets, a drawing ball, and a 1.5kW variable-speed motor. Synchronized pulling speed prevents stretching or wall thinning, while the spray cooling system rapidly solidifies the liner to lock in dimensional accuracy before spooling or cutting.
A hard-surface, low-noise decelerator pairs with the 15kW main motor to deliver high torque at low vibration levels. This extends gearbox and bearing service intervals, keeping unplanned downtime to a minimum during long production runs.
A centralized control cabinet governs the extruder, drawing machine, vacuum pump, and all heating zones from one interface. Automatic granule feeding eliminates manual hopper loading, allowing a single operator to monitor the entire line from material input to finished liner output.
Technical Specifications
The PE extruding machine is used to make PE inner liner. With automatic plastic granule feeding into material hopper, and screw thread conveyor into heating unit, melting and extruding out the PE liner.
Applications
PE inner liner production for outer casing conduits and cable protection tubing
Flexible conduit manufacturing for post-tension and prestressed concrete applications
Protective sheathing extrusion for HVAC refrigerant line sets
Spiral pipe inner lining for corrugated culvert and drainage systems
Continuous PE tube production for wire and cable jacketing lines
Video
FAQ
PE Liner Extruding Line is widely used in: PE inner liner production for outer casing conduits and cable protection tubing; Flexible conduit manufacturing for post-tension and prestressed concrete applications; Protective sheathing extrusion for HVAC refrigerant line sets; Spiral pipe inner lining for corrugated culvert and drainage systems.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
