Paper Bowl Making Machine
Fully automatic paper bowl machine producing up to 80 bowls per minute.
Industrial paper bowl forming machine engineered for food packaging manufacturers requiring consistent 150mm bowl production. Features cam-driven precision and table-top mold access that reduces changeover time while maintaining 60-80 bowls per minute throughput for high-volume disposable container operations.
Key Specs
Key Specs
Power
Weight
Speed
Overview Points
High-Speed Production
Table-Top Layout
Cam-Driven Efficiency
Automated Lubrication
Full Automation
Production Monitoring
Heavy-Duty Frame
Premium Components
Key Features
A cylindrical indexing cam paired with gear transmission replaces traditional connecting-rod linkages, reducing mechanical failure points while delivering repeatable, accurate motion across every forming station. The single-plate cam structure keeps cycle times short and consistent at 60–80 bowls per minute.
All forming molds sit on the table surface, fully separated from the drive system housed in the rack box below. Operators can inspect, clean, or swap molds without accessing the transmission, cutting changeover and maintenance time significantly compared to enclosed-frame designs.
The full square-steel body structure totals 3,300 kg, providing the mass and rigidity needed to dampen vibration during continuous high-speed production. This prevents station misalignment and extends the service life of tooling and bearings.
A timed automatic spray lubrication system keeps all cam surfaces and moving joints properly oiled without operator involvement. Photoelectric sensors and a fault alarm system detect paper feed errors, misfeeds, or station jams instantly, reducing waste and unplanned downtime.

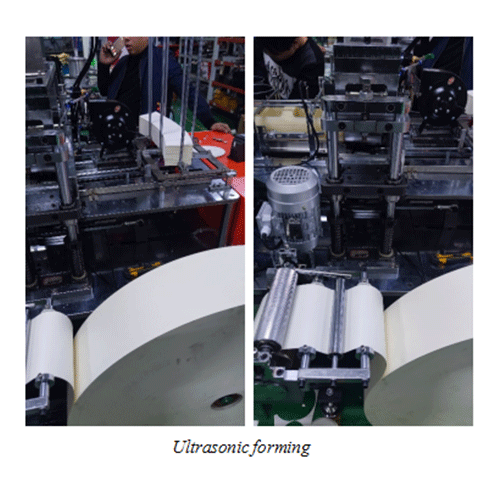

The drive system uses a Delta frequency converter and INVT servo motor for precise speed control, while Schneider contactors, Omron connectors, and Panasonic photoelectric sensors handle power switching and detection. CHNT air switches and Kejian ultrasonics round out a control architecture built for reliability in three-shift factory environments.
Technical Specifications

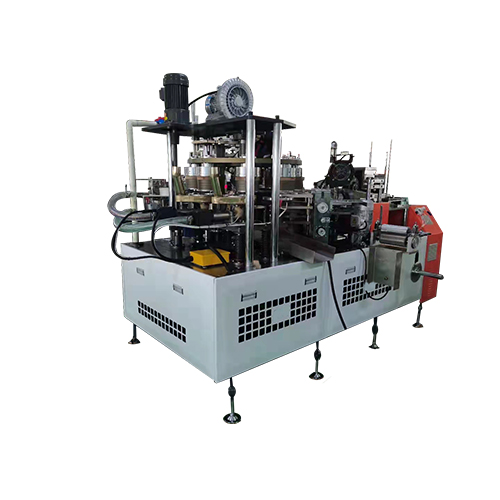

The fully automatic open cam medium-speed paper bowl machine adopts a table-top layout, isolates the forming mold from the transmission part, and sets the transmission parts in the rack box under the table. The machine has an automatic spray lubrication system, which adopts a combination of longitudinal axis transmission structure, cylindrical indexing structure and gear transmission. Each forming mold is set on the table, which is convenient for cleaning and maintenance.

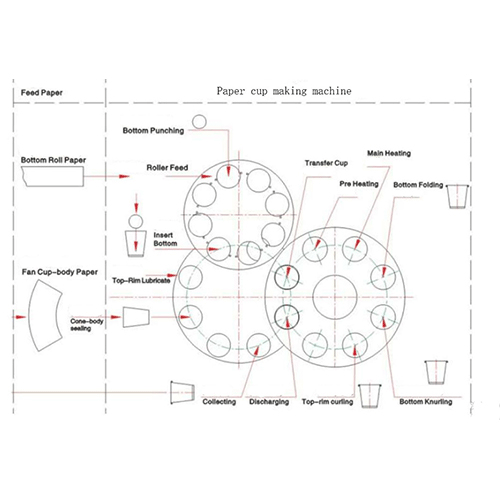

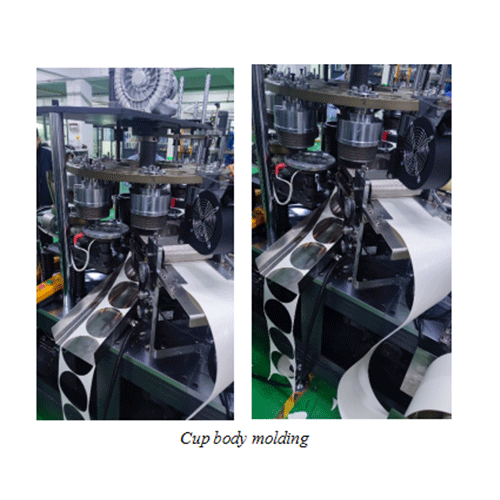

The cylindrical indexing cam has only one aluminum plate to complete the cup making structure, which makes the machine faster and smaller. It has photoelectric detection, fault alarm, counting and other functions. Through automatic transmission, continuous processes such as paper feeding, sealing (bonding cup type), oil filling, bottom punching, bottom turning, heating, knurling, hemming, cup unloading, etc. Ideal equipment for paper bowls, etc., with a capacity of up to 60 pcs/min.
The production of paper cups is a cyclical process, and more paper cup products are produced by repeating the same actions continuously.
The continuous repetitive action of the paper cup machine is completed by the cam organization in the paper cup machine. The cam in the cam organization of the paper cup machine performs a rotary motion, which drives the follower of the paper cup machine to reciprocate according to a certain demand.
The cam organization of the paper cup machine can make the follower of the paper cup machine obtain a more disorderly movement law, thereby completing the cyclic function of cardboard production and reaching the demand for producing more cardboard products.
The cam organization has the characteristics of simple and compact structure and planning, which can complete various contrast and messy movement requirements, which makes it not only excellent for use in paper cup machines, but also has an important role in other equipment.
| Parameter | Data |

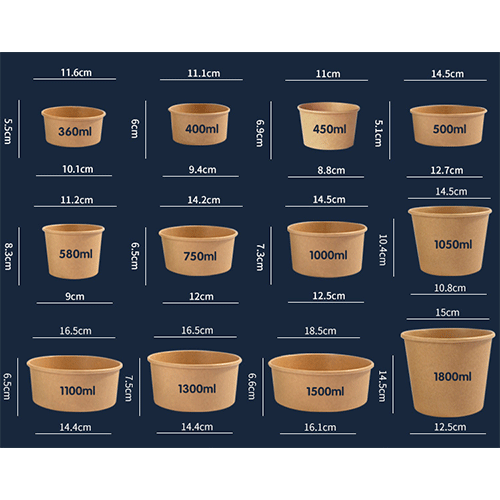

| Cup size | Bowl width up to 150MM |
| Speed | 60-80pcs/min |
| Power | 220V50HZ/380V50HZ or customized |
| Suitable Material | 150-380g/m2 （single side PE or two side PE-coated paper) |
| Total Power | 3.5KW |
| Weight | 3300KG |
| Package size | 2700*1400*2100mm |
| Power source | 13KW |
| Name | Brand |
| Frequency converter | DELTA TaiWan |
| POC | DELTA TaiWan |
| Private service motor | INVT |
| Air switch | CHNT |
| AC connector | Schneider France |
| Connecting device | OMRON Japan |
| Photoeye | Panasonic Japan |
| Motor | Dedong |
| Ultrasonic | Kejian |
Applications

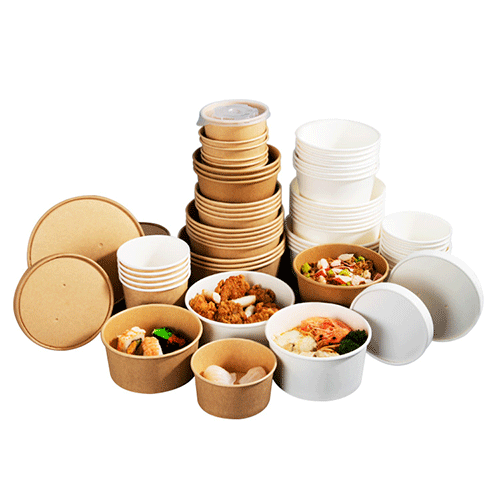

Disposable paper bowl production for food service and takeaway packaging
PE-coated paper container manufacturing for hot and cold food items
Quick-service restaurant supply chains requiring high-volume bowl output
Paper packaging factories expanding from cup lines into bowl formats
Contract manufacturers producing private-label disposable food containers
Soup, noodle, and salad bowl production for retail and catering distributors
Video
FAQ
The key specifications of Paper Bowl Making Machine include: Power: 220V50HZ/380V50HZ or customized, Weight: 3300KG, Speed: 60-80pcs/min. Contact us for the full specification sheet.
Paper Bowl Making Machine is widely used in: Disposable paper bowl production for food service and takeaway packaging; PE-coated paper container manufacturing for hot and cold food items; Quick-service restaurant supply chains requiring high-volume bowl output; Paper packaging factories expanding from cup lines into bowl formats.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
