Outer Roll Machine

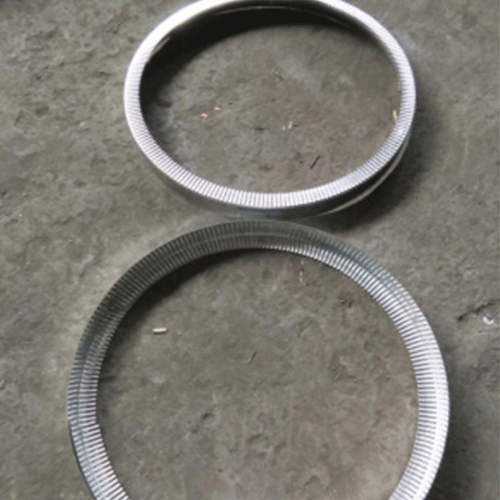

Form steel coil edge protectors from high-strength G550 strip in one pass.
Industrial roll-forming machine designed for steel mills and metal service centers to produce circular edge protectors in-house. Eliminates dependency on external suppliers while ensuring consistent protector quality for coil packaging operations.
Key Specs
Key Specs
Power
Voltage
Overview Points
G550 Steel Processing
Three Roll Sizes
Cr12MoV Tool Steel
Thin Material Handling
Compact Design
Energy Efficient
Standard Power Supply
Gear Drive System
Key Features
Engineered to process G550-grade steel — one of the hardest commercial strip grades — at thicknesses from 0.35mm to 1.2mm, the machine produces rigid edge protectors that resist deformation under coil weight and strapping pressure.
Available in 1,300mm, 1,600mm, and 2,000mm roll diameter configurations, each size corresponding to commonly produced steel coil outer diameters, so the finished protector seats flush against the coil edge without gaps or overhang.
Forming rollers are machined from Cr12MoV cold-work die steel, a material chosen for its high hardness (58–62 HRC), wear resistance, and dimensional stability, which translates directly into longer runs between tooling service intervals.
At just over one square meter of floor space, the Outer Roll Machine integrates into coil packaging lines alongside strapping, wrapping, and stacking equipment without requiring layout redesign or additional foundation work.
The 3kW direct gear drive eliminates hydraulic systems and their associated fluid maintenance, filtration, and leak risks, keeping both energy draw and upkeep requirements minimal for single-shift or continuous operation.
Technical Specifications
| Power: | 3kw |
| Material thickness： | Max 1.2mm (We suggest that minimum raw material thickness is not less than 0.35mm, to avoid any tearing.) |
| Steel grade: | G550 |
| Roll diameter: | 1300mm,1600mm,2000mm |
| Roller material: | Cr12MoV |
| Voltage: | 380V 50Hz (can be customized) |
| Size: | 1100x800x1000mm |
Applications
Steel coil packaging lines in flat-rolled steel mills
Metal service centers preparing coils for shipment and storage
Aluminum and stainless steel coil edge protection manufacturing
Coil logistics and warehousing operations requiring in-house protector production
OEM suppliers of coil packaging consumables
Video
FAQ
The key specifications of Outer Roll Machine include: Power: 3kw, Voltage: 380V 50Hz (can be customized). Contact us for the full specification sheet.
Outer Roll Machine is widely used in: Steel coil packaging lines in flat-rolled steel mills; Metal service centers preparing coils for shipment and storage; Aluminum and stainless steel coil edge protection manufacturing; Coil logistics and warehousing operations requiring in-house protector production.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
