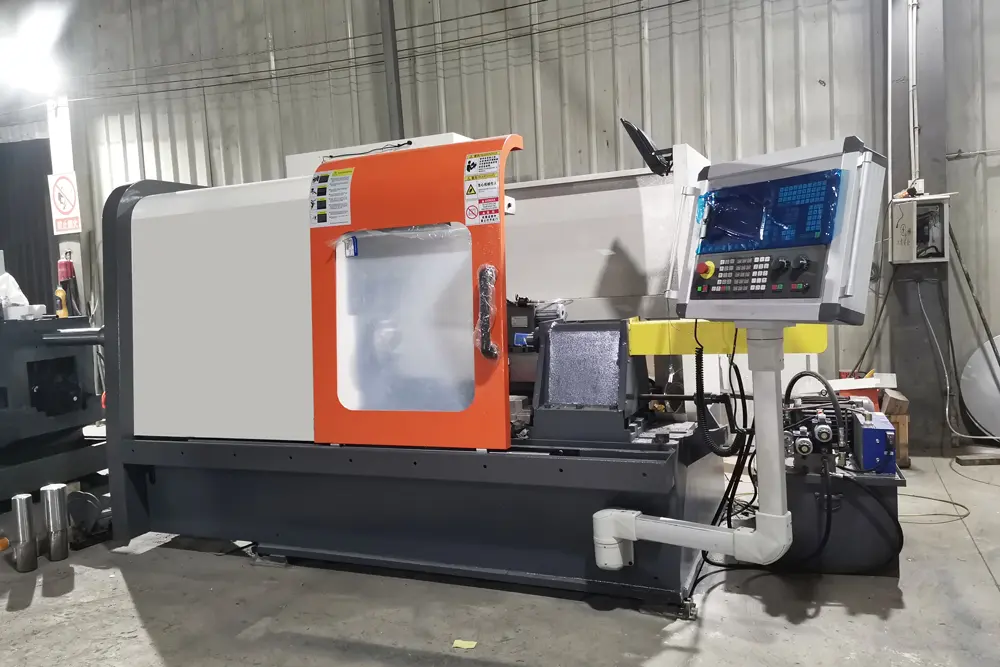

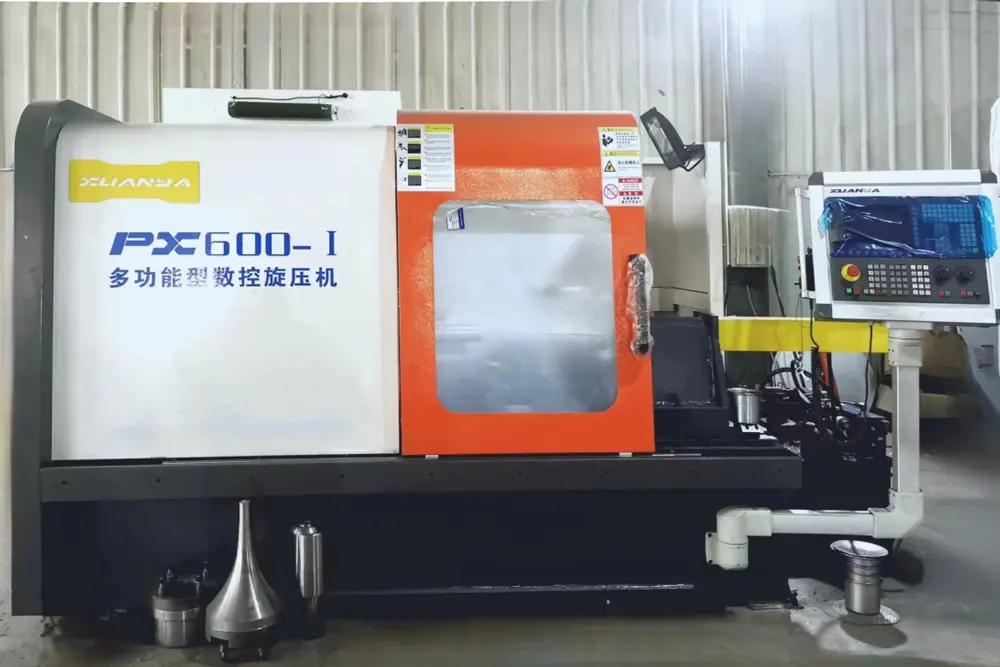

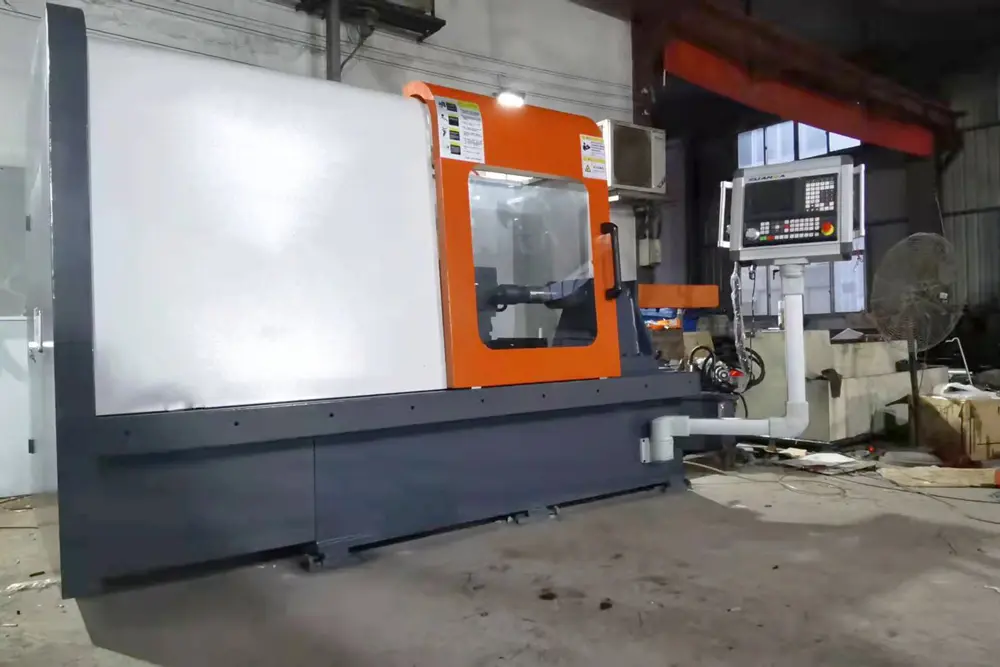

Multifunctional CNC Metal Spinning Machine For Precision Metal Cone and Disc Manufacturing

The PX600 achieves 0.01mm positioning accuracy across both axes, enabling repeatable production of dimensionally consistent cones, discs, and deep-drawn components. This level of precision reduces post-processing and scrap, directly lowering per-unit production costs.

Engineered to spin copper and aluminum sheets up to 3.5mm, carbon steel up to 2.0mm, and stainless steel up to 1.5mm, the machine accommodates a broad range of production requirements without reconfiguration. The 4/6/8-position tool holder further extends flexibility by supporting multi-step forming in a single setup.

An integrated automatic feeding system combined with full CNC automation allows continuous production with minimal operator intervention. Factories benefit from higher throughput during extended shifts and reduced exposure to human error in repetitive forming tasks.

With a maximum sheet diameter capacity of 600mm and a working envelope of 600mm × 500mm (X/Z), the PX600 fits into production lines where floor space is constrained — without sacrificing the stroke or clamping force needed for medium-sized workpieces.

The 10kN tail force and 500mm tail stroke ensure firm, stable workpiece clamping throughout the spinning cycle. A 300mm whip blank support plate travel provides additional material guidance during progressive forming, improving surface finish and dimensional consistency.
