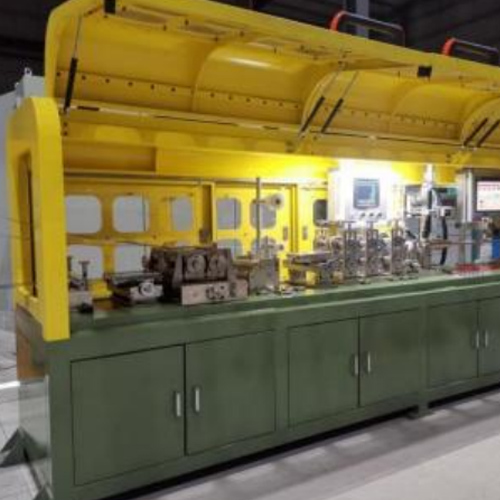

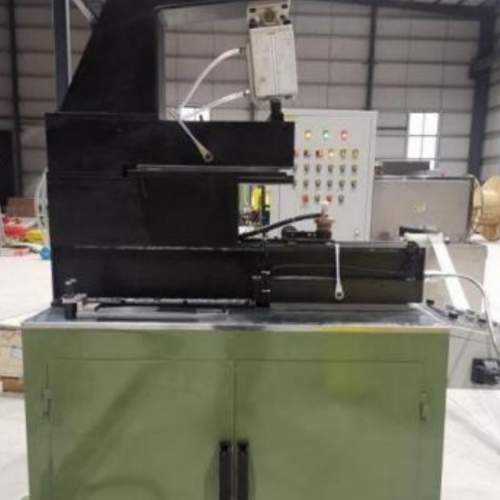

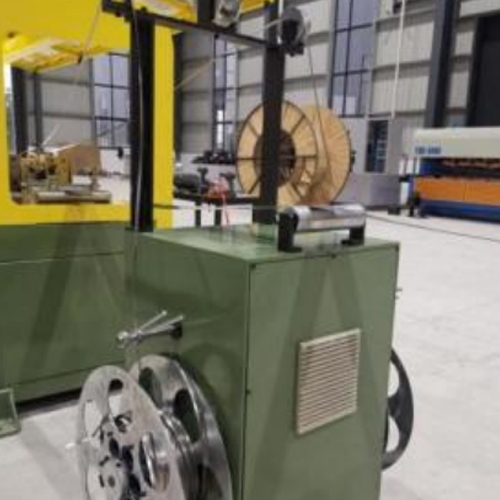

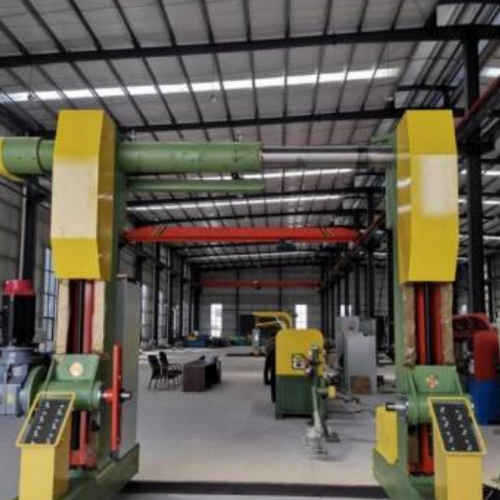

Metal Argon Arc Welding Tube Machine Production Line

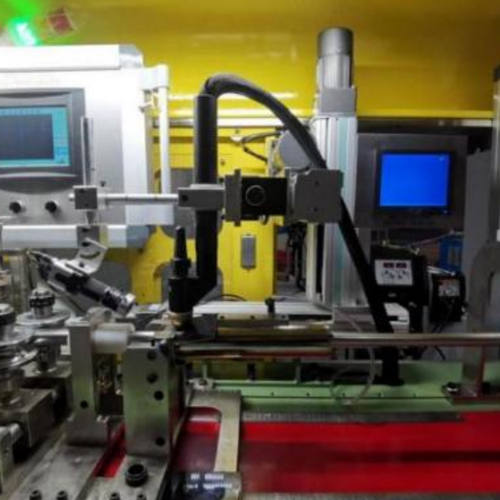

The DC argon arc welding process with high-frequency arc ignition produces clean, continuous longitudinal butt welds under inert gas shielding. An integrated arc monitoring and automatic seam tracking system corrects torch position in real time, ensuring consistent weld penetration across copper strips as thin as 0.3 mm and aluminum strips up to 2 mm thick. A three-dimensional electric adjustment mechanism provides fine torch positioning, while short-circuit and position-limit protections prevent damage to the workpiece or equipment.

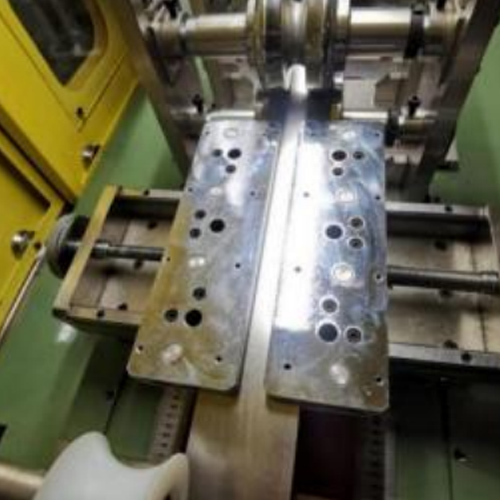

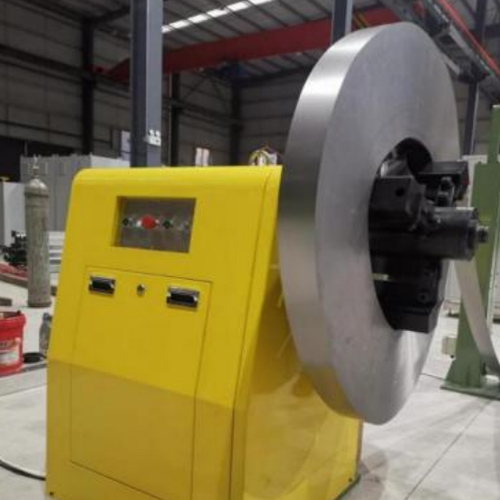

The line processes copper, aluminum, and stainless steel strips from 20 mm to 220 mm wide, forming welded sheaths from 8 mm to 72 mm outer diameter. Twenty-two interchangeable mold sets are supplied as standard, covering medium-voltage cable sheaths, high-speed rail through-ground conductors, flexible fireproof cable sheaths, and railway signal cable sheaths. Changeovers require only loading the correct mold set and recalling stored PLC parameters — no mechanical re-engineering of the line.

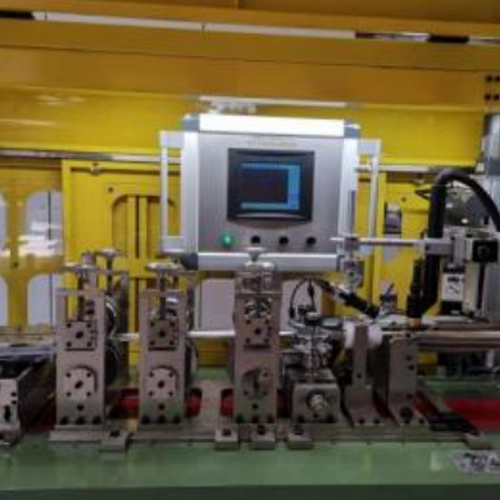

The PLC-driven touch screen displays welding current, voltage, speed, and welding length in real time. Multiple sets of proven process parameters are stored permanently and recalled by entering the pipe diameter and material type, with 12 adjustable parameters per specification. The system enforces current-speed synchronization curves and provides automatic protection against speed fluctuation, current mismatch, low gas flow, insufficient cooling water pressure, and abnormal pay-off or take-up tension.

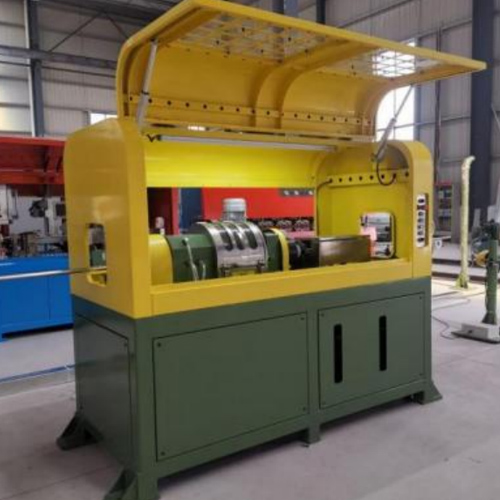

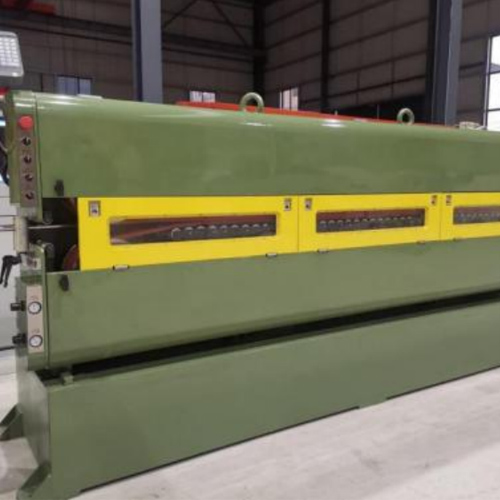

Rated for 24-hour continuous operation at 300 A, the line sustains production speeds up to 20 m/min on thin copper tape with continuous welding lengths reaching 2 km per run. The eccentric embossing unit operates at up to 4,500 rpm, applying ring or spiral corrugation patterns with pitch and depth adjustable on the fly — no line stoppage required. A crawler-type multi-slot main tractor provides stable, consistent pulling force throughout the process.

The welding platform includes a protective enclosure with built-in welding fume purification, maintaining operator air quality during extended runs. Gas flow is PLC-controlled with insufficient-flow alarms, and shielding gas (argon or helium) consumption is monitored and regulated. Individual power control for every station is accessible from the touch screen, with status monitoring that flags faults before they propagate through the line.
