Introduction Of TDF Flange Forming Machine
Form precise TDF flanges on sheet metal up to 1.5 mm in a single pass.
Industrial TDF flange forming machine engineered for HVAC fabricators requiring consistent 35±0.5mm flange accuracy across 0.6-1.5mm sheet metal. Four model configurations deliver scalable capacity from residential ductwork to continuous commercial production environments.
Key Specs
Key Specs
Weight
Capacity
Overview Points
Precision Flange Formation
Complete Gauge Coverage
Four Model Configurations
Progressive Forming Stations
Mobile Workshop Integration
Protected Drive Components
Proven Manufacturing Heritage
Global Production Record
Key Features

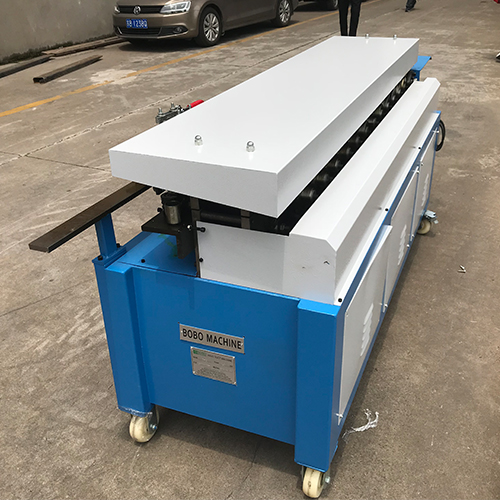

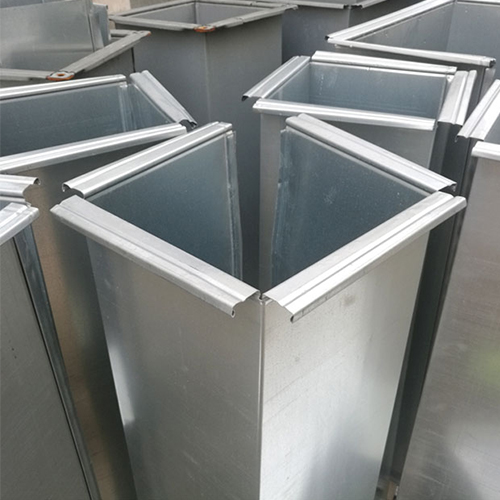

Each model holds flange dimension “a” to 35 ±0.5 mm across the full sheet thickness range, delivering repeatable TDF profiles that mate cleanly without shimming or rework during duct assembly.
The T-12 (3 kW, up to 1.2 mm) suits lighter-gauge residential ductwork, while the T-15 (4 kW, up to 1.5 mm) handles heavier commercial gauges. The T-15D offers a dual-configuration layout for higher throughput, and the L-TDF-10 (5.5 kW) provides an extended frame for longer sheet runs and continuous production environments.
Machine frames are fabricated from heavy steel plate — weights range from 1,400 kg to 3,000 kg depending on model — with hardened forming rollers designed to maintain profile integrity over millions of cycles. Powder-coated surfaces resist corrosion in humid factory conditions.
Sheet metal guides and integrated feed tables align material automatically before it enters the roller train, reducing setup time and operator skill requirements. The control panel is positioned for clear line-of-sight to the forming section.

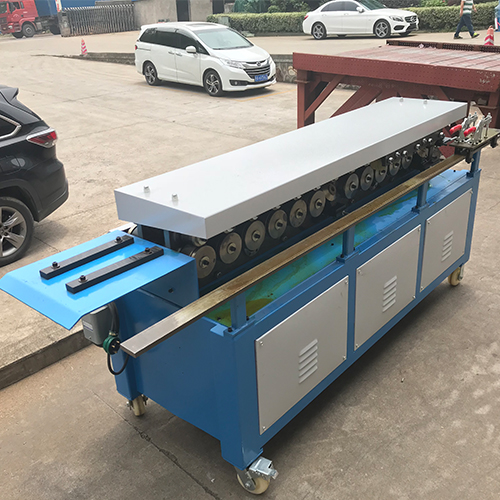

Caster wheels allow a single operator to reposition the machine between production cells. Compact footprints — starting at 2,800 × 700 × 1,000 mm for the T-12 — fit into existing rectangular duct fabrication lines alongside coil lines, plasma cutters, and lock formers.
Technical Specifications
| No. | Model | Motor（km） | Capacity（mm） | Shape | “a”size（mm） | Weight（mm） | Diminsion Size（L.W.H） | ||
| 1520003 | T-12 | 3 | 0.8-1.2 |  |
35±0.5 | 1400 | 2800x700x1000 | ||
| 1520004 | T-15 | 4 | 0.8-1.5 |  |
35±0.5 | 1800 | 3200x750x1000 | ||
| 1520024 | T-15D | 4 | 0.6-1.2 |  |
35±0.5 | 3000 | 3200x2700x1100 | ||
| 1520012 | L-TDF-10 | 5.5 | 0.8-1.0 |  |
35±0.5 | 3000 | 4500x750x1100 |
Applications
HVAC rectangular duct fabrication for commercial buildings
Industrial ventilation system manufacturing
Cleanroom and pharmaceutical facility ductwork production
On-site duct prefabrication for construction projects
Kitchen exhaust and smoke extraction duct manufacturing
Sheet metal job shops serving mechanical contractors
Video
FAQ
The key specifications of Introduction Of TDF Flange Forming Machine include: Weight: Diminsion Size（L.W.H）, Capacity: Shape. Contact us for the full specification sheet.
Introduction Of TDF Flange Forming Machine is widely used in: HVAC rectangular duct fabrication for commercial buildings; Industrial ventilation system manufacturing; Cleanroom and pharmaceutical facility ductwork production; On-site duct prefabrication for construction projects.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
