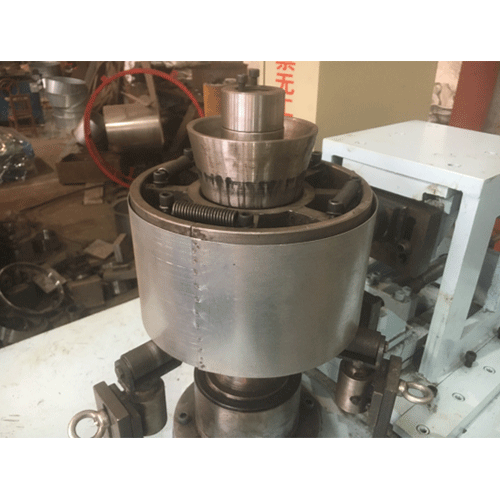

Hydraulic Vertical Fan Flanging BOHD-1250

Each axial fan casing is flanged in roughly 20 seconds, allowing a single operator to produce over 150 pieces per hour. This speed directly reduces per-unit labor cost and supports just-in-time delivery schedules for HVAC manufacturers.

The BOHD-1250 accepts workpieces from 150 mm to 1250 mm in diameter and forms galvanized steel up to 3.0 mm, cold-rolled steel up to 3.0 mm, and stainless steel up to 2.0 mm. One machine replaces multiple setups, simplifying production planning when your product mix includes different fan sizes and material grades.

The hydraulic system maintains even pressure throughout the flanging stroke, eliminating the thin-spot deformation and edge cracking that can occur with mechanical or pneumatic drives. The result is a clean, dimensionally stable flange ready for assembly without secondary rework.

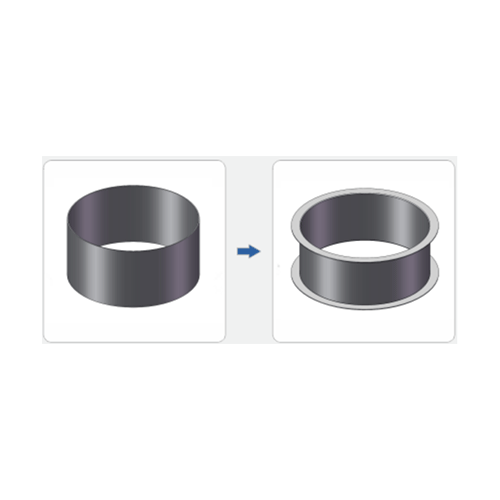

Operators set the flange height anywhere between 10 mm and 40 mm through a simple adjustment, matching the exact profile needed for gasket seating, bolt connections, or slip-fit joints. No die changes are required, so switching between product specifications takes minutes rather than hours.

The vertical orientation keeps the 2200 × 2000 × 1480 mm footprint small enough to fit into existing production cells. Integrated safety guard rails surround the working area, protecting operators during loading and forming without slowing the production cycle.
