Hydraulic Punching Machine
4000KN hydraulic punching at 0.8 seconds per hole with ±0.1mm accuracy.
Industrial hydraulic punching machine for high-volume metalworking operations across diverse materials. Designed for fabricators requiring consistent hole placement in structural steel, tubing, and profiles. Engineered to eliminate bottlenecks in production lines processing stainless steel, aluminum alloy, and carbon steel components.
Key Specs
Key Specs
Weight
Dimension
Speed
Capacity
Overview Points
Universal Material Range
Rapid Cycle Speed
Precision Positioning
Multi-Head Configuration
Extended Feed System
Digital Programming
Flexible Power Options
Heavy-Duty Construction
Key Features
The BO-80 generates 4000KN of punching force while maintaining ±0.1mm positional accuracy. This combination allows clean, burr-minimized holes in demanding materials like stainless steel and seamless pipe without deforming the workpiece profile.
At 0.8 seconds per hole, this machine is engineered for factories running high-volume orders. The multi-head design punches several holes per cycle, meaning actual throughput per workpiece far exceeds single-head alternatives.
One machine handles round pipe, square pipe, flat iron, channel steel, angle iron, welded pipe, and seamless pipe in stainless steel, zinc steel, and aluminum alloy. This versatility reduces the need for dedicated punching lines for each material type.
The integrated long-span feeding track and programmable HMI eliminate manual material positioning between punches. Operators load stock, set the program, and the system executes the full hole pattern — reducing labor dependency and human error.
Weighing approximately 2500kg with enclosed safety guards, cable chain systems, and a rigid support frame, the BO-80 is built for continuous factory-floor operation. All critical stress points are reinforced to sustain repeated 4000KN cycles without structural fatigue.
Technical Specifications
This hydraulic high-speed punching machine is widely used in punching and cutting stainless steel materials (also for zinc steel, aluminum alloy, steel pipe, welded pipe, seamless pipe, square pipe, round pipe, flat iron, channel steel, Angle iron).
| Model: | BO-80 |
| Max. Capacity: | 4000KN |
| Work speed: | 0.8s/hole |
| Motor Voltage: | 380V/220V or Customized |
| Accuracy: | ±0.1mm |
| Dimension: | 6800*1000*1750mm |
| Weight: | About 2500kg |
Applications

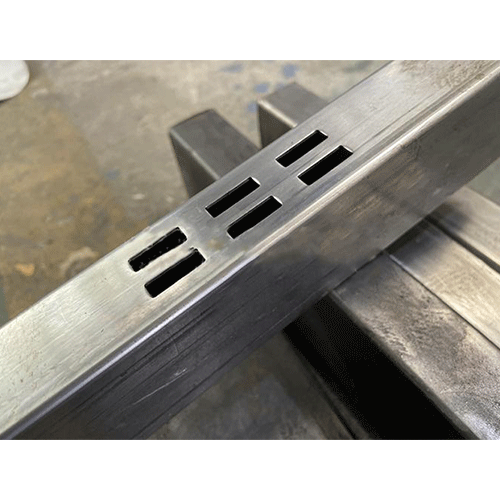

Fencing and guardrail manufacturing — punching mounting holes in zinc steel and stainless steel tube
Structural steel fabrication — hole patterns in channel steel, angle iron, and square pipe

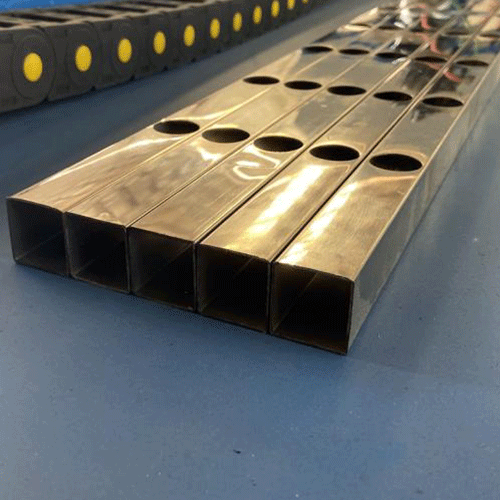

Furniture and racking production — precision-punched square and round tubing for shelving and frames
HVAC and ventilation component manufacturing — perforated tubing for airflow distribution
Automotive and trailer frame assembly — high-volume punching of welded and seamless pipe
Architectural metalwork — decorative and functional hole patterns in stainless steel profiles
Video
FAQ
The key specifications of Hydraulic Punching Machine include: Weight: About 2500kg, Dimension: 6800*1000*1750mm, Speed: 0.8s/hole, Capacity: 4000KN. Contact us for the full specification sheet.
Hydraulic Punching Machine is widely used in: Fencing and guardrail manufacturing — punching mounting holes in zinc steel and stainless steel tube; Structural steel fabrication — hole patterns in channel steel, angle iron, and square pipe; Furniture and racking production — precision-punched square and round tubing for shelving and frames; HVAC and ventilation component manufacturing — perforated tubing for airflow distribution.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
