Hydraulic Gate Shearing Machine

Heavy-duty hydraulic shearing for 20mm steel plate — precise, fast, numerically controlled.

View Products

Key Specs Overview Technical Specifications Applications Video FAQ Contact Related

Key Specs

Power

22KW

Speed

cut

Overview Points

Shears mild steel plate up to 20mm thick and 2600mm wide at a rated shear strength of 450 N/mm², handling demanding fabrication workloads without compromise.

All-steel welded frame with gate-type (guillotine) architecture provides high rigidity and vibration resistance, maintaining cut accuracy over years of continuous service.

MD11 numerical control system with digital display manages back gauge positioning (10–700mm range), reducing setup time and operator error on repeat jobs.

Adjustable shear angle (3°) and hand-wheel blade clearance mechanism let operators fine-tune cut quality for different material grades and thicknesses.

Nitrogen cylinder return ensures fast, smooth ram retraction — achieving 12 cuts/min under load and 14 cuts/min at no-load — maximizing throughput on production runs.

Integrated hydraulic hold-down clamps press the sheet before each cut, preventing material shift and delivering clean, distortion-free edges.

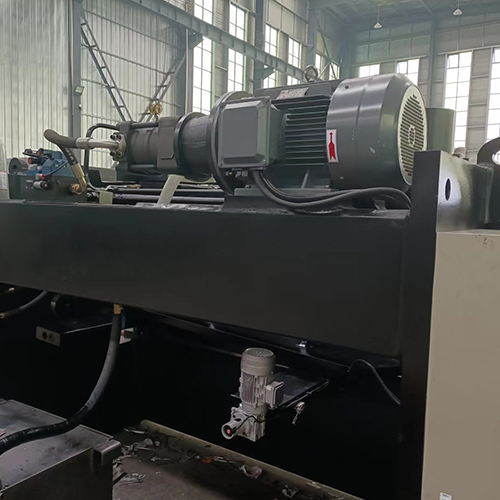

Motorized back gauge with 0.37 kW drive and lead-screw positioning enables rapid, repeatable dimension changes directly from the control panel.

800mm worktable height, 3200 × 2000 × 2000 mm footprint, and 22 kW main motor make this machine practical for medium-to-large fabrication shops without excessive floor-space demand.

Key Features

Rigid All-Steel Welded Construction

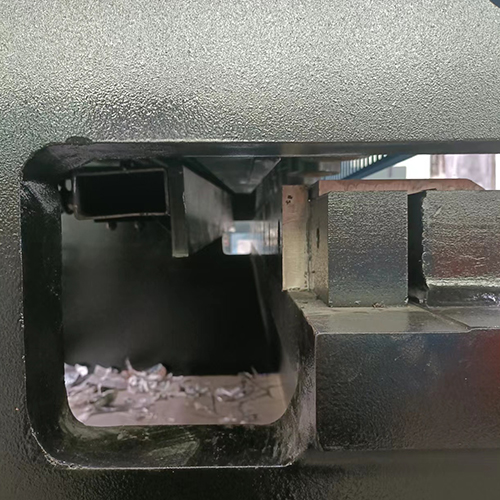

The frame and tool holder are fabricated from heavy-gauge welded steel plate, delivering the stiffness required to shear 20mm plate at 450 N/mm² without deflection. Roller-supported upper tool rest travel further reduces structural stress, preserving geometric accuracy across the machine’s service life.

MD11 Numerical Control with Digital Display

The Hong Kong Sanyuan MD11 CNC module provides direct numeric input for back gauge position (10–700mm), stroke count, and shear parameters. Operators set dimensions once; the system drives a 0.37 kW motor and lead-screw assembly to position the gauge accurately, eliminating manual measurement on batch work.

Fast Cycle Time with Nitrogen Return

Nitrogen-charged cylinders retract the ram immediately after each cut, enabling 12 strokes per minute under load. This mechanical return method is simpler and more responsive than spring-based alternatives, reducing maintenance while keeping cycle times short.

Precision Blade Clearance Adjustment

A three-point eccentric support shaft at the rear of the tool holder, combined with a front-mounted hand wheel, allows fine adjustment of upper-to-lower blade clearance. Correct clearance setting minimizes burr formation, extends blade life, and produces clean sheared edges across the full 2600mm blade length.

Integrated Safety and Clamping

Hydraulic hold-down cylinders press the workpiece firmly before the blade engages, preventing sheet movement and ensuring dimensional consistency. An emergency stop on the foot-switch remote and pressure-spring-assisted clamp reset add further operator protection during high-speed production.

Technical Specifications

This hydraulic gate shearing machine adopts all-steel welding structure, the shearing adopts hydraulic transmission, the upper tool rest adopts hand wheel type clearance adjustment mechanism, and the return adopts nitrogen return. The rear gear incline adopts motorized quick adjustment, MD11 numerical control control, and digital display.

S.N	Description	Data
1	Maximum plate thickness	20mm
2	Maximum board width	ф1.0-2.5mm
3	Shear strength	450N/mm²
4	Shear angle	3°（adjustable）
5	Shear speed	cut	12/min
		no-load	14/min
6	Full length of blade	2600mm
7	Distance between columns	2780mm
8	Workbench height from the ground	800mm
9	System maximum pressure	20MPa
10	Motor Power	22KW
11	Rotating speed	1440r/min
12	Size	320020002000mm

Applications

Steel fabrication shops — cutting plate and sheet blanks to size for welding, forming, and assembly

HVAC and ductwork manufacturing — preparing flat sheet metal panels before roll forming or bending

Structural and construction metalwork — shearing angle iron, flat bar, and plate for beams, brackets, and frames

Shipbuilding and heavy equipment — trimming thick steel plate for hull sections and machinery housings

Automotive and appliance component production — blanking mild steel parts prior to stamping or deep drawing

General job-shop metalworking — versatile shearing for mixed-material, mixed-thickness production runs

Video

FAQ

What are the main specifications of Hydraulic Gate Shearing Machine?

The key specifications of Hydraulic Gate Shearing Machine include: Power: 22KW, Speed: cut. Contact us for the full specification sheet.

What applications is Hydraulic Gate Shearing Machine used for?

Hydraulic Gate Shearing Machine is widely used in: Steel fabrication shops — cutting plate and sheet blanks to size for welding, forming, and assembly; HVAC and ductwork manufacturing — preparing flat sheet metal panels before roll forming or bending; Structural and construction metalwork — shearing angle iron, flat bar, and plate for beams, brackets, and frames; Shipbuilding and heavy equipment — trimming thick steel plate for hull sections and machinery housings.

What is the warranty for NTBOBO machines?

All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.

What payment terms does NTBOBO accept?

We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
