High Speed Tdc Flange Roll Former

Continuous TDC flange forming and cutting in one integrated production line.

Industrial roll forming machine designed for HVAC contractors and duct fabrication shops requiring high-volume TDC flange production. Processes 0.4-1.2mm sheet metal at speeds up to 30 m/min with integrated cutting, eliminating manual handling between forming and cutting operations.

View Products

Key Specs Overview Technical Specifications Applications Video FAQ Contact Related

Key Specs

Weight

Size（L.W.H）

Capacity

Motor（mm）

Overview Points

High Speed Production

Forms TDC flanges at 30 m/min from 0.4-1.2mm sheet across four models (T-20, T-30, T-35, T-40)

Hardened Roller System

22-station GCr15 rollers quenched to HRC 58-62 with hard-chrome coating for extended wear life

Integrated Fly Cutting

Tracks formed profile without line stops - automatic cutting reaches 6 m/min vs manual grinding

Complete Corner Solutions

Matching corner pieces T-20DC through T-40DC and BC-10 ensure tight sealing on large ducts

Rigid Support Structure

40mm roller shafts with 32mm heads and 250mm spacing resist deflection for dimensional accuracy

Single Operator Setup

Complete line includes decoiler, forming unit, cutting system for coil-to-cut production

Four Standard Sizes

Flange options a=20, 30, 35, 40mm cover common rectangular duct connection requirements

Key Features

High-Throughput Roll Forming

Profiling speed reaches 30 m/min through 22 precisely aligned forming stations, converting coiled sheet metal into finished TDC flange profiles in a single continuous pass. This eliminates batch processing delays common with press-brake methods.

Hardened Roller Longevity

Every forming roller is machined from GCr15 bearing steel, quenched to HRC 58–62, and coated with hard chrome. This combination resists surface wear and maintains profile tolerances over hundreds of thousands of linear meters of production.

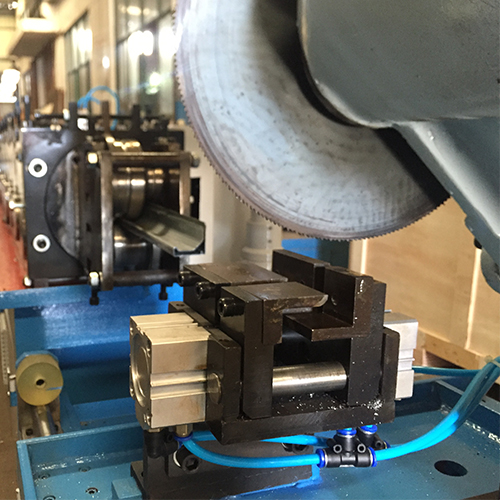

Integrated Fly-Cut System

The following fly-cutting unit moves with the profile during the cut, so the forming line never stops. Operators can choose between a standard grinding wheel cutter for basic setups or an automatic high-speed cutter rated at 6 m/min for higher-volume facilities.

Complete Flange-to-Duct Solution

NTBOBO supplies matching duct corner connectors (T-20DC, T-30DC, T-35DC, T-40DC, BC-10) sized to each flange model. Combined with proper sealant application per DW144 standards, the assembled flange frame delivers reliable air-tight connections on large rectangular duct sections.

Rigid, Compact Frame Design

With 40 mm roller shafts mounted on a heavy steel base (machine weight up to 3,000 kg depending on model), the line absorbs forming forces without vibration-induced inaccuracy — while occupying a footprint as compact as 6000 × 1800 × 1500 mm.

Technical Specifications

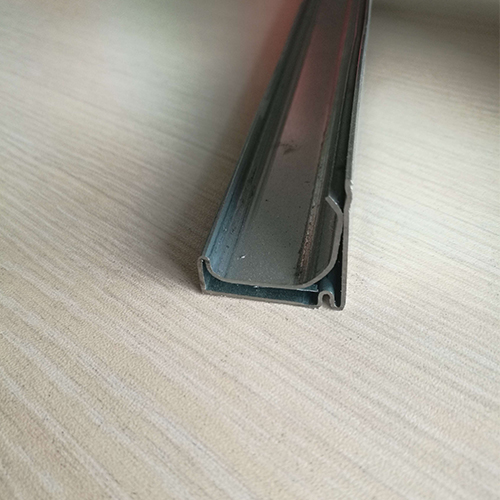

tdC flange roll forming machine is mainly for manufacturing connecting flanges used in ventilation ducts. The finished flanges have many features such as high working efficiency, good sealing performance, good connecting results, etc. They are suitable for those ducts with large sections.

tdC flange roll forming machine is comprised of decoiler, main forming units and cutting system. There are two kind of cutting system, one is simple grinding wheel cutter and the other is automatic cutting with high cutting speed – 6m/min.

This series have four type: T-20,T-30, T-35, T-40.

No.	Model	Rolls Shape	Capacity（mm）	Motor（mm）	Weight（mm）	Size（L.W.H）
1530201	T-20	a=20	0.8	3	2000	2800x600x1150
1530202	T-30	a=30	1.0	3	2200	3000x600x1150
1530203	T-40	a=40	1.2	4	3000	3200x600x1200
1530204	T-35	a=35	1.0	3	3000	3200x600x1200

No.	Model	Name	Capacity（mm）		Shape
1910191	T-20DC	Duct Corner	2.5	a=95
1910192	T-30DC	Duct Corner	3	a=105
1910193	T-40DC	Duct Corner	3.5	a=123
1910197	LT-30	Duct Corner	3	a=105
1910198	T-35DC	Duct Corner	3	a=106
1910196	BC-10	Duct Corner	5

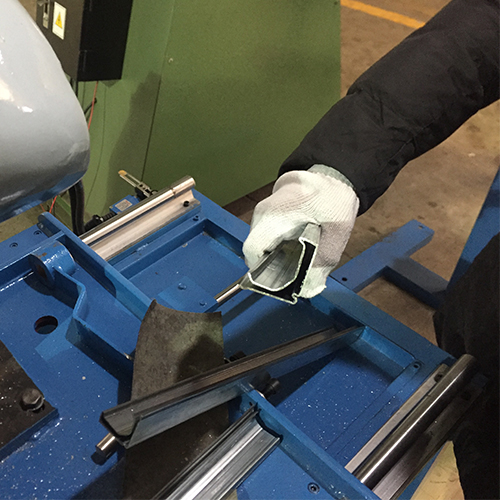

	Only normal fretsaw can cut the tdC flange angle. The length of flange angle should be 30mm less than each duct edge. Cutting direction should be as mentioned in the left to avoid destroying the structure After cutting, the section should be smoothen.

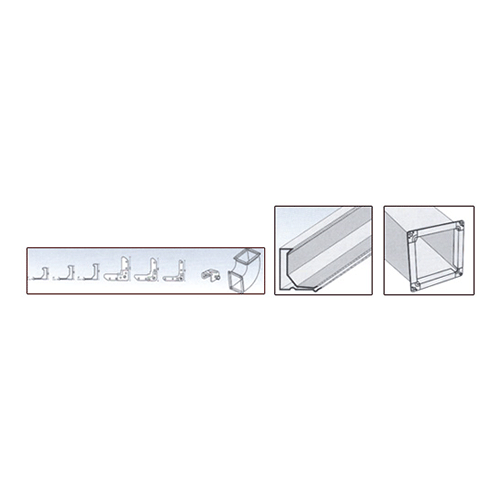

	Insert the angle completely into the end of flanges and fixed it properly and thus the whole flange frame is formed.
	Install the flange frame onto the duct, from one edge to whole flange.
	Fix the flange frame on the duct by spot weld or nail. Fixing distance should be according to Standard DW144 table 5.
	Suggest to apply suitable sealant onto the inner side and outer side of whole flange and flange angle after fixing.

Applications

HVAC rectangular duct fabrication for commercial and industrial buildings

Ventilation system manufacturing for factories, warehouses, and cleanrooms

Prefabricated duct production workshops supplying construction contractors

Large-section duct assembly requiring secure, sealed flange connections

Sheet metal fabrication shops serving mechanical and building services trades
