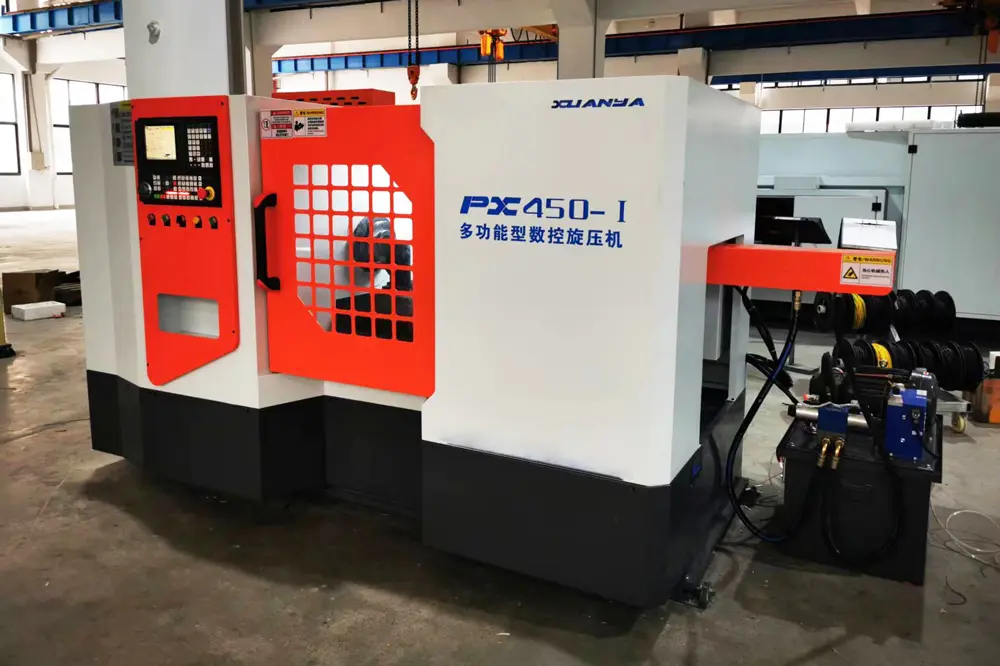

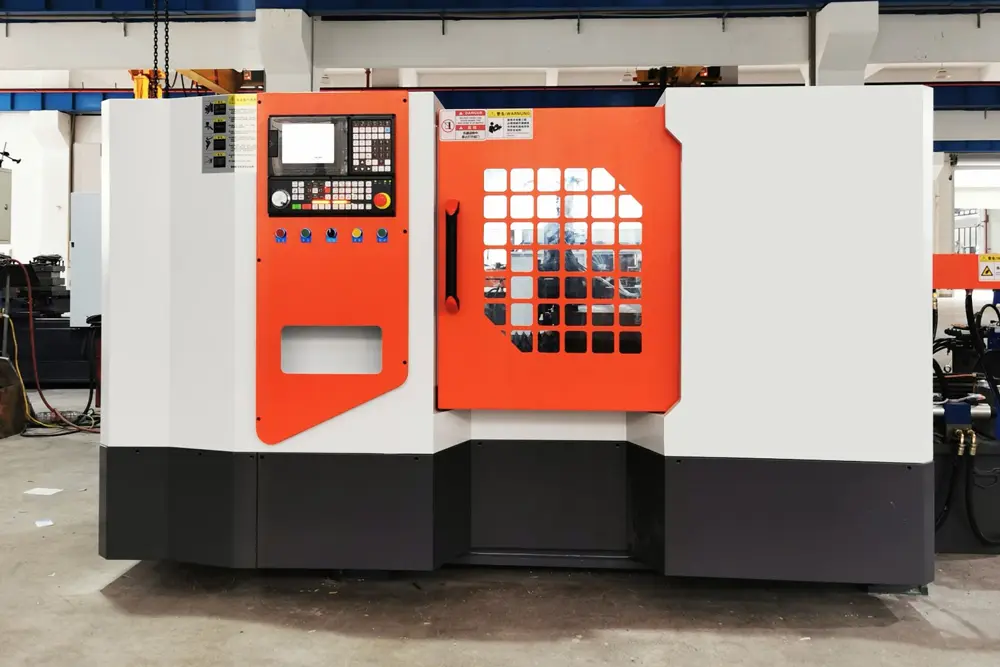

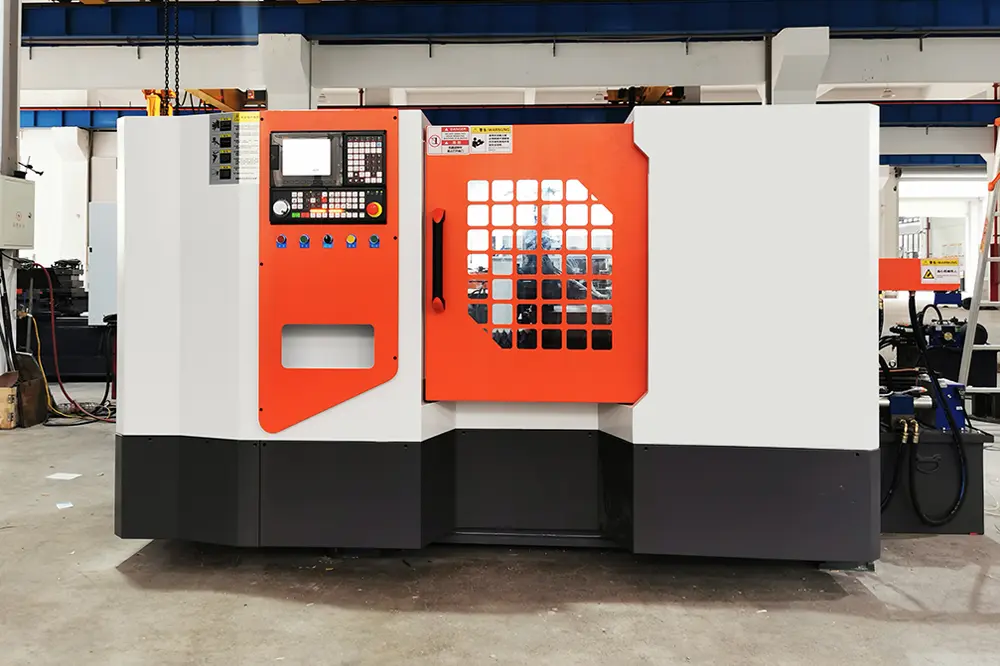

High-Precision CNC Plate Spinning Machine For Fan Cookware Hardware Kitchenware

The PX-450Ⅰ delivers 0.01mm positioning accuracy on both axes, ensuring that every spun part matches its programmed geometry. CNC-managed parameters — including spindle speed, feed rate, and forming pressure — eliminate guesswork and produce dimensionally consistent output across production runs of any volume.

Engineered to process copper and aluminum sheets from 0.5–3.0mm, steel from 0.5–2.0mm, and stainless steel from 0.5–1.5mm, this machine covers the full material spectrum required in cookware, kitchenware, and hardware manufacturing without requiring separate equipment for each alloy.

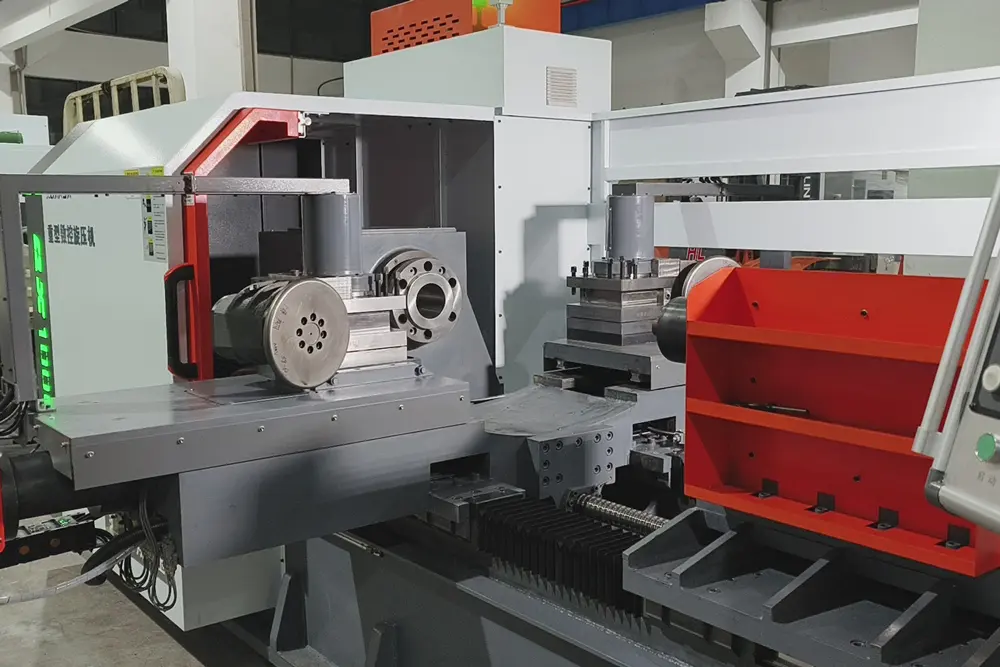

The 4+1 tool holder station supports multi-step spinning sequences in a single setup. Operators can program sequential forming, trimming, and finishing passes without stopping the machine to swap tools, directly reducing per-part cycle times and boosting daily throughput.

A 7.5kW motor paired with 7kN maximum tail force and 300mm tail stroke keeps blanks firmly secured at spindle speeds up to 3000 RPM. This combination prevents workpiece displacement during aggressive forming passes, protecting both part quality and tooling life.

Backed by 25+ years of manufacturing experience and 700+ installations worldwide, NTBOBO builds this spinning machine with powder-coated frames and precision-ground components. The result is a machine that maintains accuracy over years of daily factory use with minimal maintenance requirements.
