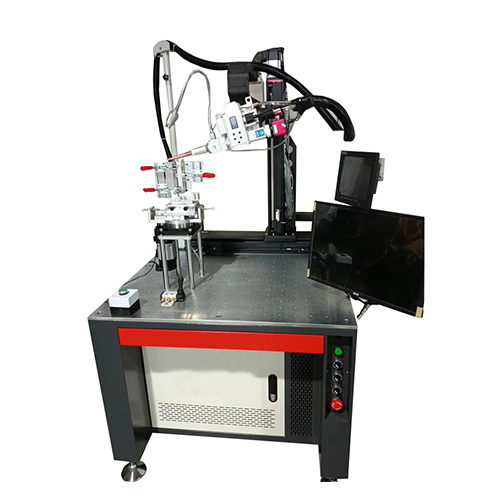

Evaporator Laser Welding Machine

1500W fiber laser welding for leak-proof evaporator joints at production speed.

Industrial laser welding system engineered for refrigeration manufacturers requiring leak-proof evaporator assembly at scale. Six-axis motion platform and vision guidance deliver consistent tube-to-header joints across stainless steel, aluminum, and copper materials.

View Products

Key Specs Overview Technical Specifications Applications Video FAQ Contact Related

Key Specs

Power

Hengfeng

Overview Points

Deep Penetration Welding

1500W Raycus/Chuangxin fiber laser achieves 4mm penetration on stainless steel with leak-proof consistency.

Production Speed Output

Six-axis motion completes 9-column evaporator welding in 42-45 seconds, enabling 2,500 daily units.

Precision Spot Control

0.1mm focused spot via YM52 welding head minimizes heat zones and preserves evaporator dimensions.

Vision Guided Tracking

CCD camera system provides real-time weld seam tracking and compensates for tube alignment variation.

Motion System Reliability

HIWIN ball screws and linear guides maintain repeatable positioning accuracy across extended runs.

Industrial Grade Controls

Schneider contactors and Omron switches deliver robust electrical protection and safety interlocks.

Thermal Stability Control

Mintec chiller maintains 21-25°C water temperature for <3% laser power deviation shift after shift.

Multi Material Capability

Processes stainless steel, carbon steel, aluminum, and copper for diverse evaporator specifications.

Key Features

High-Speed, High-Precision Welding

The six-axis simultaneous motion platform completes a full 9-column evaporator weld cycle in 42–45 seconds. A focused spot diameter of approximately 0.1mm concentrates energy precisely at the joint, producing narrow, deep-penetration welds that minimize thermal distortion on thin-wall tubing and header plates.

Stable 1500W Fiber Laser Output

The Raycus/Chuangxin fiber laser module operates in continuous or modulated mode at up to 5kHz, with output power stability within 3%. Fiber transmission eliminates thermal lensing effects common in conventional laser systems, so focal plane drift does not degrade weld quality during long production runs.

Vision-Guided Positioning

An integrated CCD camera system identifies weld seam locations before the laser fires, compensating for fixture tolerances and part variation. This reduces reject rates on tube-to-header joints where even slight misalignment can cause refrigerant leaks in service.

Industrial-Grade Motion and Electrical Components

HIWIN ball screws and linear guides deliver the positioning repeatability demanded by micro-scale weld joints. Schneider electrical protection devices and Omron limit switches ensure safe, reliable operation in continuous manufacturing environments. Huichuan servo motors with Igus cabling provide responsive, durable axis drive performance.

Controlled Thermal Management

The dedicated Mintec chiller circulates purified water at 21–25°C with flow rates of 16–58 L/min, keeping the laser module within its optimal operating window. Total system power consumption stays at or below 6kW, keeping energy costs proportional to output.

Technical Specifications

II Configuration

	Part	Brand	Remark
1	Laser	Raycus/Chuangxin
2	Constant-Temperature Refrigeration System	Mintec
3	CCD Camera	Maite
4	Welding Head	Mintec	Boom
5	Welding Control System	Mintec
6	Six-axis simultaneous motion	Mintec	1 set
7	Motor	Huichuan
8	Ball screw, Guide rail	HIWIN Taiwan
9	Switching Power Supply	Hengfeng
10	Work Holding Fixtures	Mintec
11	Motor cables, limit cables	Lgus
12	Contactors, Relays	Schneider
13	Circuit Breaker	Schneider
14	Limit Switch	Omron/Yangming
15	Sheet metal, Cabinets	Mintec
16	Workbench	Mintec

III Main Technical data

1)MT-IP-W1500 Fiber Laser Module Technical Specifications

	Parameter	Data
1	Laser Wavelength	1080nm
2	Maximum Laser Output Power	1500W
3	Number of Fiber Optic Outputs	Single optical fiber
4	Beam Quality	1.3M²
5	Laser Frequency	Continuous/Modulated
6	Maximum Modulation Frequency	5kHz
7	Fiber Core Diameter	50um
8	Total power consumption	≤6kW
9	Output Power Stability	<3%
10	Input Power (V AC @ 47-63 Hz)	340-420 Three-phase five-wire
11	Operating Temperature Range	10-40℃
12	Water-cooled Temperature Range	21-25℃
13	Cooling Method	Water-cooled
14	Cooling water flow rate	8 L/min
15	Laser Aiming and Positioning	Red light indicator

2)Chiller Specifications

	Parameter	Data
1	Rated Cooling Capacity	5200kW
2	Power Supply	AC220V/50HZ
3	Pump Rated Head	25m+28m
4	Chilled Water Flow Rate Range	16-58 L/min
5	Ambient temperature	≤35℃
6	Machine Net Weight	58KG
7	Dimension	680600830mm

3)Welding Process Data Sheet

MT-IP-W1500 Welder Welding Capability
Welding head: YM52, focused spot diameter approximately 0.1mm
NO	Material	Output Power(W)	Depth of Penetration(mm)	Speed(m/min)
1	Stainless Steel	1500	4	1
2	Stainless Steel	1500	3	2
3	Stainless Steel	1500	2	5.5
4	Stainless Steel	1500	1	10.5
5	Carbon Steel	1500	3	1.5
6	Carbon Steel	1500	2	4
7	Carbon Steel	1500	1	9.5
8	Aluminum	1500	2	1.5
9	Aluminum	1500	1	5
10	Copper	1500	0.3	2

Workplace Requirements:

●Ambient Temperature: 10-40°C, air conditioning required;

●Humidity: 40%-80%. No condensation; dehumidifier installation required;

●Power Supply Grid: 340-420 V, three-phase five-wire system;

●Power grid fluctuation: ±5%. Grid grounding must meet international standards. Areas with voltage fluctuations exceeding 5% require automatic voltage and current stabilization equipment;

●No strong electromagnetic interference near installation site. Avoid radio transmitters (or relay stations) in vicinity;

●Foundation vibration amplitude: <50μm; Vibration acceleration: <0.05g. Avoid proximity to heavy machinery like stamping presses;

●Equipment space must be smoke-free and dust-free, avoiding environments with heavy dust from metal polishing/grinding;

●Air pressure: 86-106 kPa;

●Certain environments require anti-static flooring and enhanced shielding;

●Strict water quality requirements for working cooling circulation water: Use purified water, deionized water, or distilled water. Do not use tap water, mineral water, or other water containing high levels of metal ions or minerals.

Applications

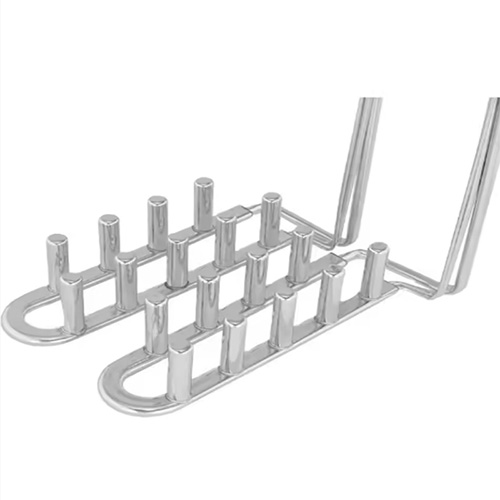

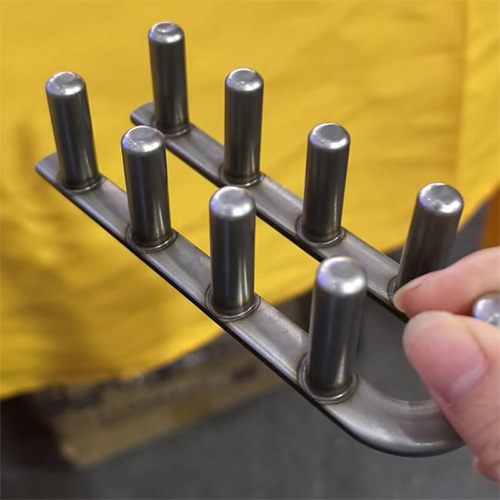

Fin-type evaporator tube-to-header welding for refrigeration systems

HVAC heat exchanger assembly and manufacturing

Condenser and evaporator production for commercial cooling units

Precision tube welding for residential air conditioning components

Small-diameter tube joining for automotive thermal management systems

Leak-proof weld sealing on refrigerant-carrying assemblies
