Elbow Forming Machine DCP 1000

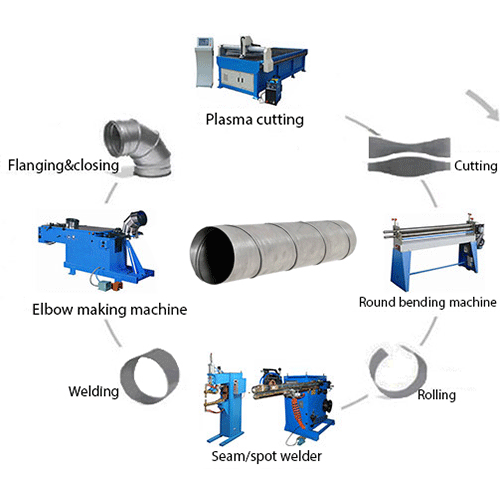

The DCP 1000 combines elbow forming, flanging, and lock seam closure into a single machine. This eliminates the need for separate flanging equipment on the production line, reducing capital expenditure and floor space while shortening the workflow from flat segment to finished elbow.

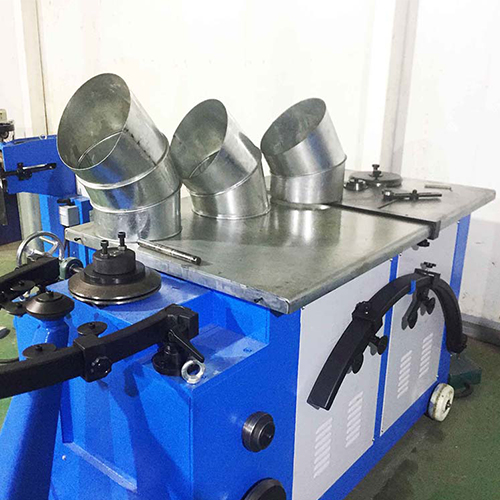

Two independent work stations allow simultaneous processing of elbow segments. In practice, this means one operator can flange on one station while a second operator forms the lock seam on the other, effectively doubling output compared to single-station machines.

A foot-activated control switch lets operators keep both hands on the workpiece during forming. This improves alignment precision when positioning curved duct segments on the dies and reduces the risk of misfeeds or material slippage.

The SBWT-1000 model covers diameters from 150mm to 1000mm at up to 1.2mm thickness, while the SBWT-1500 extends the range to 1500mm diameter and 2.0mm thickness. This range covers the majority of commercial and industrial HVAC elbow requirements without needing multiple machines.

Mounted on heavy-duty casters, the machine can be wheeled to different positions in the shop as production layouts change. With a compact footprint of 2100×900×900mm (SBWT-1000) and low motor power consumption (2×1.5kW), it fits into existing workshops without major infrastructure modifications.
