Duct Zipper Machine
Lock TDF duct seams fast — in-plant or on-site, vertical or horizontal.
Pneumatic TDF seam closing equipment for HVAC fabricators and mechanical contractors. Dual vertical/horizontal configurations handle rectangular ductwork from 150×150mm to 1550mm lengths with production speeds reaching 24 m/min.
Key Specs
Key Specs
Weight
Dimension
Speed
Overview Points
TDF-Only Design
Dual Configurations
Quiet Operation
Material Compatibility
Production Speed
Compact Footprints
Proven Manufacturer
Key Features
Choose between the vertical model for taller duct sections (up to 1550 mm length, 1.2 mm thickness) and the horizontal model for wider format work (down to 150×150 mm ducts, up to 1.5 mm thickness). Both are engineered for TDF-only seam locking, eliminating unnecessary complexity and keeping operation straightforward.
The vertical duct zipper delivers a forming speed of 24 m/min, enabling operators to close seams on high volumes of rectangular ductwork without bottlenecking downstream assembly. This throughput makes it practical for both dedicated fabrication shops and prefabrication lines.
Pneumatic actuation keeps noise levels low enough for on-site installation work in occupied buildings — a real advantage for retrofit HVAC projects where work happens alongside building tenants or other trades.

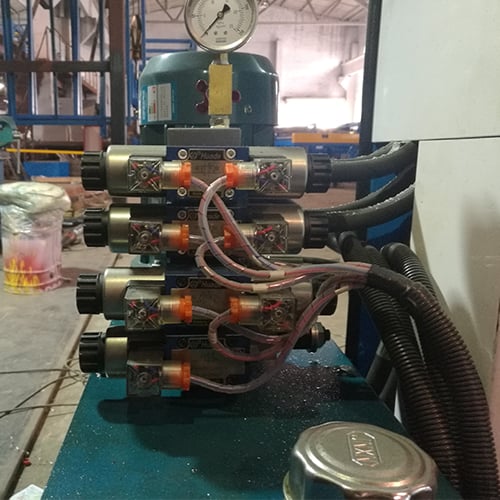

The vertical model’s painted steel frame, hydraulic power unit with pressure gauge, and chain-driven tooling carriage are built for shift-after-shift reliability. At 1.7 tons, the vertical unit offers the rigidity needed for consistent seam quality on galvanized and low carbon steel without frame flex or vibration drift.
A digital control panel with HMI gives operators clear feedback and precise control over the seam-forming cycle. Minimal setup time between duct sizes reduces changeover delays and lowers the skill threshold for new operators.
Technical Specifications

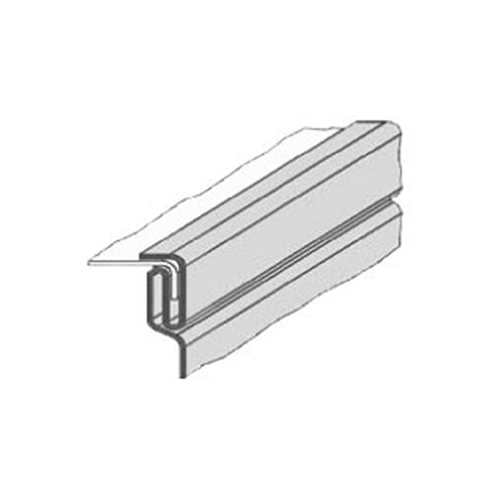

The Pneumatic duct zipper machine is applied for tdF duct seam only.It is used to lock the angle profile, can work in plant or site work quickly and quietly.Besides two kinds of machine for your option.

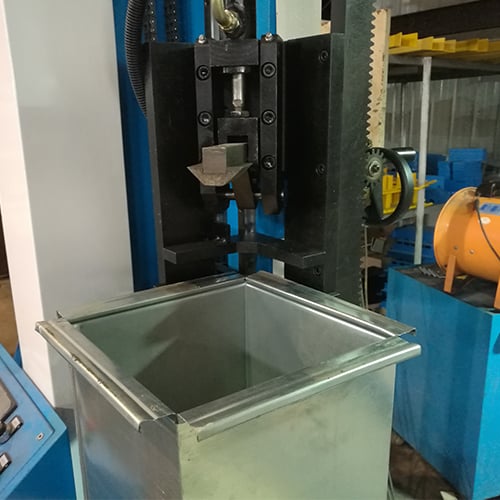

Vertical Duct Zipper
| Length Of Air Duct | 1000-1550mm |
| Sheet Thickness | 0.4-1.2mm |
| Forming Speed | 24m/min |
| Duct Connection | tdF only |
| Dimension | 899 x 826 x 2200mm |
| Weight | Around 1.7ton |
| Suitable Material | galvanized steel, low carbon steel, etc |
Horizontal Duct Zipper
| Duct Min Size | 150x150mm |
| Thickness | 0.6-1.5mm |
| Processing Duct Length | 1000-1250mm |
| Weight | 380kg |
| Dimension | 3000x950x960mm |
Applications
HVAC rectangular duct fabrication in manufacturing plants
On-site TDF duct seam closing during building construction and retrofit
Commercial ventilation system installation and prefabrication
Industrial ductwork assembly for factories and warehouses
Duct fabrication shops serving mechanical contractors
Video
FAQ
The key specifications of Duct Zipper Machine include: Weight: Around 1.7ton, Dimension: 899 x 826 x 2200mm, Speed: 24m/min. Contact us for the full specification sheet.
Duct Zipper Machine is widely used in: HVAC rectangular duct fabrication in manufacturing plants; On-site TDF duct seam closing during building construction and retrofit; Commercial ventilation system installation and prefabrication; Industrial ductwork assembly for factories and warehouses.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
