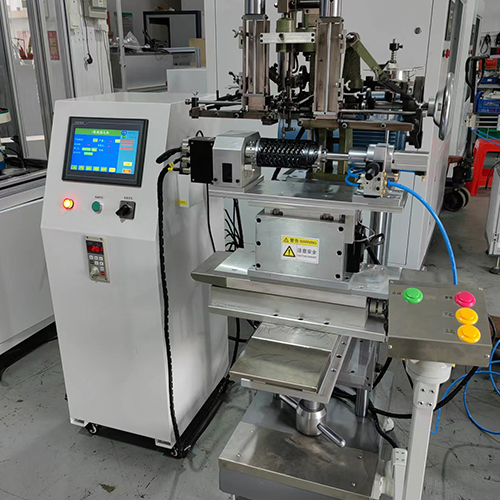

Cylinder Comb & Ribs Comb Brush Making Machine
Automated 3-axis brush tufting machine for cylinder combs and rib comb production.
Industrial tufting machine engineered for brush manufacturers producing cylinder combs, rib combs, and cleaning brushes at scale. Combines CNC precision with multi-material compatibility to serve personal care, cleaning equipment, and agricultural sectors from one compact platform.
Key Specs
Key Specs
Power
Weight
Speed
Voltage
Overview Points
CNC Tufting Speed
Multi-Material Compatibility
Flexible Mold System
Compact Integration
Energy Efficient
Dual Operation
Universal Power
Standard Pneumatics
Key Features
The 3-axis CNC system with HMI touch panel governs needle positioning, filament insertion depth, and base indexing with repeatable accuracy. This ensures uniform tuft density and filament length (up to 40 mm outside the hole) across every brush produced, reducing rejects and post-production trimming.
At 4–6 needles per second, the machine maintains production-grade speed while consuming only 0.37 KW — a fraction of the power used by comparable tufting equipment. For factories running multiple units or extended shifts, the cumulative energy savings are substantial.
The tufting head accepts PP, PET, nylon, animal hair, and plant fiber filaments into plastic brush bases with 2–4 mm holes. Operators can switch between cylinder comb and rib comb configurations using the 250×200 mm mold fixture, consolidating what would otherwise require separate dedicated machines.
Emergency stop buttons, clearly marked warning labels, and an intuitive HMI panel allow operators to set up, monitor, and adjust production runs with minimal training. The semi-automatic mode supports small-batch or prototype runs, while the dual-fixture automatic mode maximizes output for volume orders.
Selectable voltage (220/380V) and frequency (50/60Hz), standard pneumatic requirements, and a compact 1.65×1.35 m footprint mean this machine installs quickly in factories worldwide — from Southeast Asian brush workshops to European cleaning product manufacturers.
Technical Specifications
| NO. | Item | Parameter |
| 1 | Tufting Speed | 4-6 needles/sec |
| 2 | Power voltage, frequency | 220/380v , 50/60HZ (customer choose) |
| 3 | Main motor power | 0.37KW |
| 4 | Air Source Input | 0.4~0.8Mpa |
| 5 | Equipment size | 1.65*1.35*1.72m |
| 6 | Weight | 550kgs |
Applications
Cylinder brush manufacturing for industrial cleaning equipment
Rib comb and hair comb production for personal care products
Bottle brush and kitchen brush assembly lines
Agricultural and livestock grooming brush fabrication
Custom industrial brush production for conveyor and surface finishing systems
Household cleaning brush mass production
Video
FAQ
The key specifications of Cylinder Comb and Ribs Comb Brush Making Machine include: Power: 220/380v , 50/60HZ (customer choose), Weight: 550kgs, Speed: 4-6 needles/sec, Voltage: 220/380v , 50/60HZ (customer choose). Contact us for the full specification sheet.
Cylinder Comb and Ribs Comb Brush Making Machine is widely used in: Cylinder brush manufacturing for industrial cleaning equipment; Rib comb and hair comb production for personal care products; Bottle brush and kitchen brush assembly lines; Agricultural and livestock grooming brush fabrication.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
