CNC Table-type Plasma Cutter

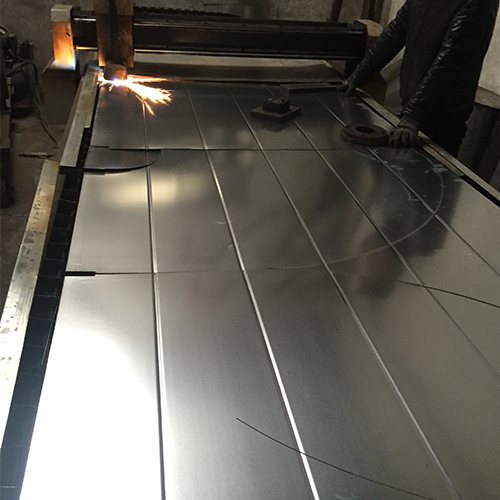

The integrated controller operates at a maximum frequency of 250 KHz with ±0.001mm control accuracy and 32 input/output signals, enabling precise torch path execution across complex duct panel geometries. This level of resolution translates directly into tighter nesting, less scrap, and parts that fit at assembly without manual trimming.

A highest running speed of 15 m/min combined with rapid gantry repositioning keeps cycle times short on both small-batch custom parts and high-volume duct panel runs. The two available table lengths — 3,100mm and 5,000mm effective cutting area — let fabricators process standard sheet sizes in a single setup.

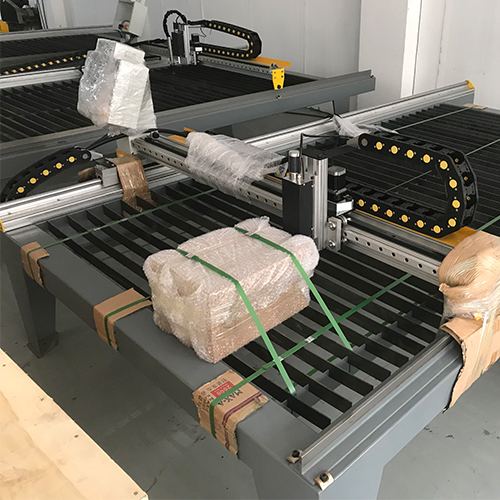

The welded steel gantry, precision linear rails, and heavy-duty frame (1,500 kg on the TPC-1550*3200, 2,300 kg on the TPC-1550*5100) provide the rigidity needed to maintain cut accuracy at full speed. Protected drag-chain cable routing prevents premature wear on power and signal lines.

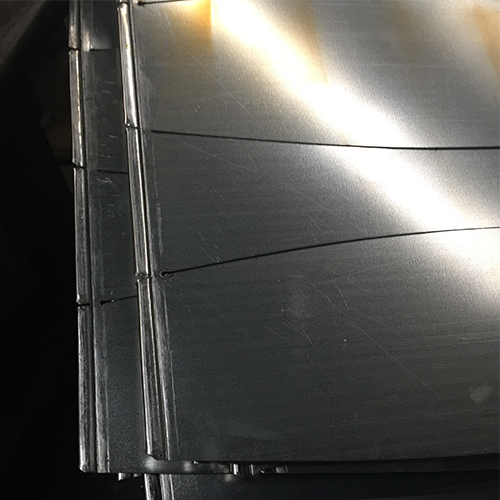

Cutting thickness scales with the plasma power source you select, so the same machine platform can handle thin-gauge galvanized steel for HVAC ductwork or heavier plate for structural components. This modularity protects your investment as production requirements evolve.

The standalone control console positions the operator away from heat and spatter while providing a clear sightline to the workpiece. The system tolerates ambient temperatures from 0°C to +60°C and withstands DC +24V supply fluctuations, supporting reliable operation in factory environments without climate-controlled enclosures.
