Centrifugal Dehydration Dryer
Centrifugal dehydration and hot-air drying in one cycle — parts come out dry, not damp.
Industrial centrifugal dehydrator with integrated hot-air drying for electronics, plated parts, and precision components. Eliminates secondary drying steps by combining spin dehydration with controlled heating in a single automated cycle.
Key Specs
Key Specs
Power
Speed
Overview Points
Integrated Process
Batch Capacity
Temperature Control
Variable Speed
Automatic Braking
Corrosion Resistance
Direct Heating
Automated Timing
Key Features
A top-mounted 4.8 kW electric heater with forced-air blower pushes heated air into the rotating basket during centrifugal operation. This dual action removes surface liquid by centrifugal force while evaporating trapped moisture simultaneously, so parts leave the drum ready for the next production step — no secondary oven or air-drying rack required.

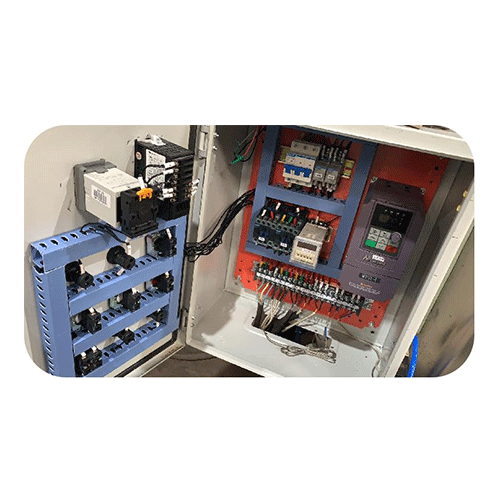

The built-in inverter regulates basket speed from 0 to 450 rpm, and a constant-temperature controller maintains the chamber between 40 °C and 150 °C. Operators can dial in gentle cycles for delicate silicon wafers or aggressive spin speeds for heavy steel fasteners, all from a single control panel with digital display.

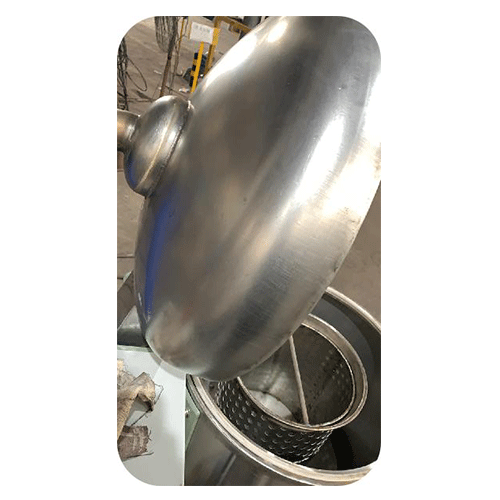

The drum, perforated basket, and lid are manufactured entirely from stainless steel. This resists degradation from the water, acids, and plating chemicals common in electroplating lines, wire-drawing plants, and electronics cleaning stations — reducing maintenance frequency and replacement costs.

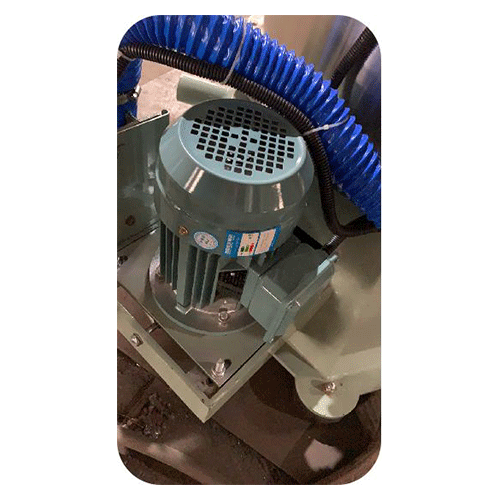

An automatic braking mechanism stops the basket reliably between batches, and the flat-bottom basket design simplifies loading and unloading of small parts. The 1.5 kW drive motor and simple mechanical layout keep vibration low, noise manageable, and routine servicing straightforward.
The medium-sized, self-contained unit fits beside washing tanks, plating baths, or cleaning stations without major floor-plan changes. Flexible ducting connects the exhaust for moisture evacuation, keeping the surrounding work area dry.
Technical Specifications
It is suitable for the dehydration and drying of auto parts, and the dehydration and drying of small hardware accessories and small mechanical parts; it is suitable for the dehydration and drying of solar silicon wafers, electronic products, integrated wafers, such as To220, To20 and other products. It can also be used for dehydration and drying of products such as To220 and To20. Stainless steel wire drawing production industry, standard parts electroplating production industry, ball retaining ring production in bearing accessories and other industries are cleaning, dehydrating and drying.
Through the upper heating belt blast, the hot air is continuously transmitted to the products in the equipment dehydration during the operation of the equipment, so that the products are dried while being dehydrated, and the products do not retain water, which speeds up the drying effect. The entire operation is automatically controlled by constant temperature. Frequency conversion speed regulation, timing operation, automatic braking, simple structure, stable operation, convenient maintenance and other advantages. The drying effect far exceeds other similar equipment.
| Parameter | Data |
| Motor | 1.5KW |
| Electric heating power | 4.8KW |
| The inner drum bears the maximum load | 40KG |
| Temperature control range | 40℃-150℃ |
| Frequency conversion speed range | 0-450 rpm |
| Material | stainless steel |
Applications
Post-wash drying of electroplated fasteners and standard parts
Dehydration of electronic components such as TO-220 and TO-20 packages
Solar silicon wafer drying after wet cleaning processes
Bearing accessory (ball retainer ring) dehydration after cleaning
Stainless steel wire-drawing parts drying
Auto parts and small hardware spin-drying after aqueous degreasing
Video
FAQ
The key specifications of Centrifugal Dehydration Dryer include: Power: 4.8KW, Speed: 0-450 rpm. Contact us for the full specification sheet.
Centrifugal Dehydration Dryer is widely used in: Post-wash drying of electroplated fasteners and standard parts; Dehydration of electronic components such as TO-220 and TO-20 packages; Solar silicon wafer drying after wet cleaning processes; Bearing accessory (ball retainer ring) dehydration after cleaning.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
