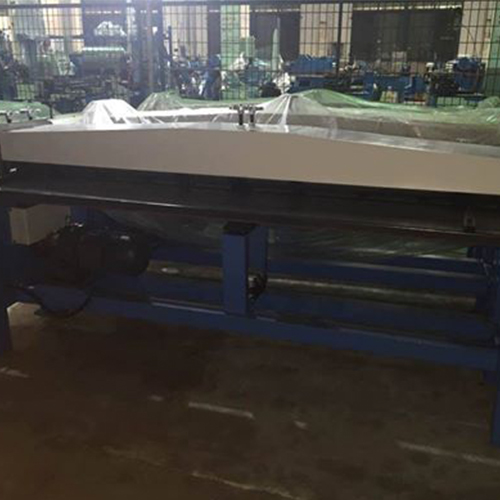

Beading Machine
Add structural beads to rectangular duct panels at 12 m/min, up to 1500 mm wide.
Industrial beading machine engineered for high-volume HVAC duct fabricators requiring consistent panel reinforcement. Eliminates manual bead forming while maintaining production line speeds through automated roller processing. Built for continuous operation in commercial sheet metal fabrication environments.
Key Specs
Key Specs
Power
Weight
Speed
Overview Points
Material Capacity
Production Speed
Multi-Bead Formation
Drive System
Quick Adjustment
Rigid Construction
Compact Design
Key Features
Precision-machined rollers maintain uniform bead depth and spacing across the entire 1500 mm working width. This uniformity ensures every duct panel meets the same structural rigidity standard, reducing rework and rejected panels.
At 12 m/min feed speed with up to 5 simultaneous beads, the machine processes large volumes of duct panels in a single shift. The powered roller drive eliminates operator fatigue and maintains a steady output rate throughout continuous runs.
Top-mounted handwheels allow operators to adjust roller pressure and bead depth without stopping the line or using separate tools. Switching between material gauges — from 0.5 mm to 1.2 mm galvanized steel — takes minutes, not hours.
The frame is built from welded C-channel steel and finished with powder-coated paint for corrosion resistance. At 890 kg, the machine absorbs forming forces without shifting, and the integrated gearbox is designed for years of daily operation with standard lubrication maintenance.
The 2000 × 1000 × 1200 mm footprint allows the beading machine to be positioned inline between shearing and flange-forming stations. A single 3 kW / 380 V connection is all that is needed — no hydraulic supply or compressed air required.
Technical Specifications
| Item | Parameter |
| Maximum Thickness | 1.2 mm |
| Maximum Width | 1500mm |
| Suitable Material | Galvanized Steel |
| Speed | 12m/min |
| Motor Power | 3kw/380v |
| Size | Appro.2000×1000×1200mm |
| Weight | Appro.890kg |
| Max. Quantity Of Crimples | 5 pieces |
Applications
HVAC rectangular duct fabrication
Commercial and industrial ventilation system manufacturing
Prefabricated duct panel production lines
Sheet metal fabrication shops serving construction contractors
Refrigeration and cold storage panel reinforcement
Video
FAQ
The key specifications of Beading Machine include: Power: 3kw/380v, Weight: Appro.890kg, Speed: 12m/min. Contact us for the full specification sheet.
Beading Machine is widely used in: HVAC rectangular duct fabrication; Commercial and industrial ventilation system manufacturing; Prefabricated duct panel production lines; Sheet metal fabrication shops serving construction contractors.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
