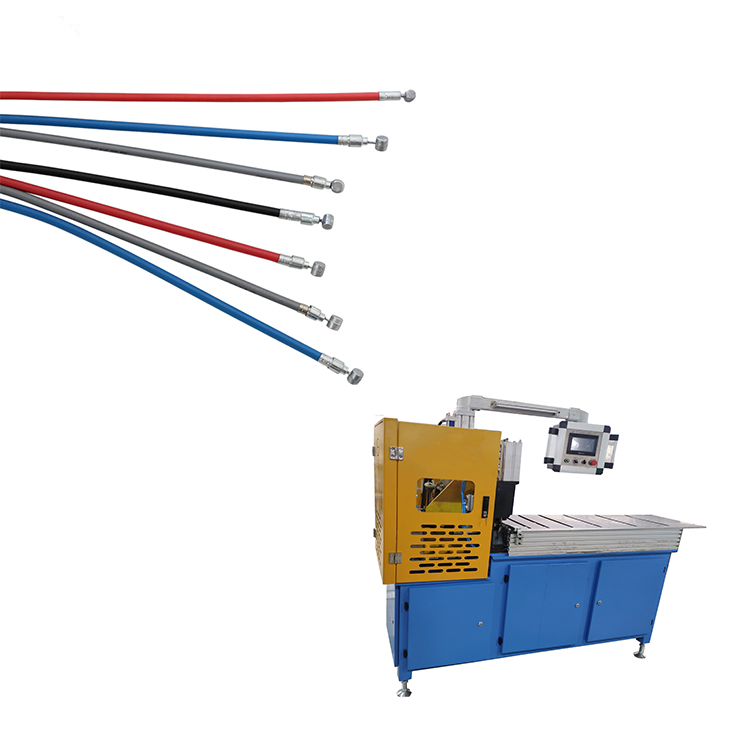

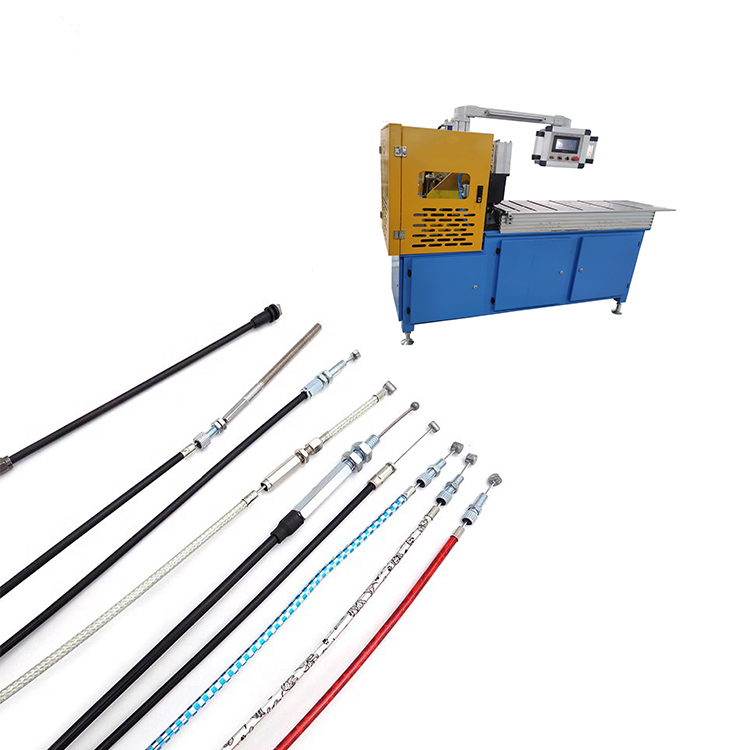

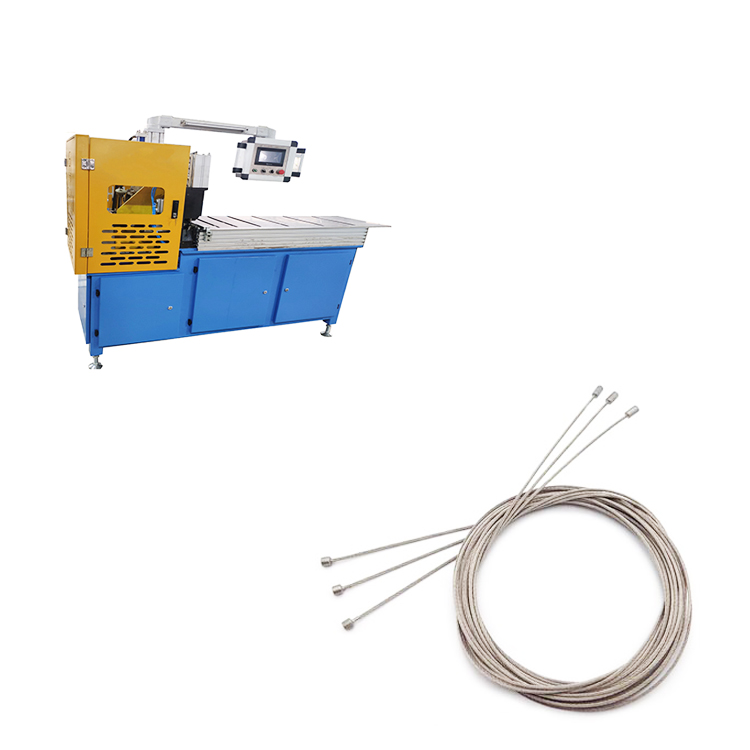

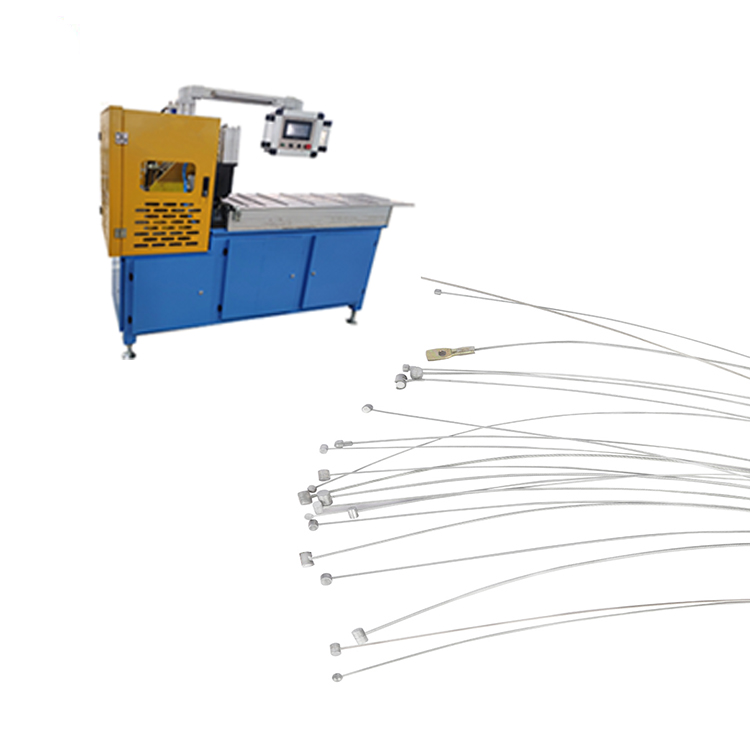

Automatic Wire Rope Cutting Patterning Die Casting Machine

This machine consolidates cutting, patterning, die casting, and deburring into one automated sequence. Eliminating manual transfers between stations reduces cycle time, labor costs, and the risk of handling damage to semi-finished parts.

With a verified cycle time of 6.2 seconds per piece, the machine supports sustained output for large-batch orders. The automated feeding and discharge system keeps the production line moving without operator bottlenecks.

The heating pipe uses imported processing technology, and the furnace nozzle is manufactured from cast iron for long service life under repeated thermal cycling. Maximum heating power of 3.2 kW ensures rapid melt, while 1.2 kW insulation power maintains stable alloy temperature between cycles.

Mold-closing detection confirms proper die alignment before each casting stroke, preventing flash and dimensional defects. Automatic discharge clears each finished piece cleanly, maintaining consistent positioning for the next cycle.

The integrated HMI panel gives operators direct access to process parameters, recipe storage, and diagnostics. A programmable timer allows the machine to start and stop automatically on schedule, supporting lights-out operation during off-peak energy periods.
