Automatic Parallel Groove Clamp Making Machine

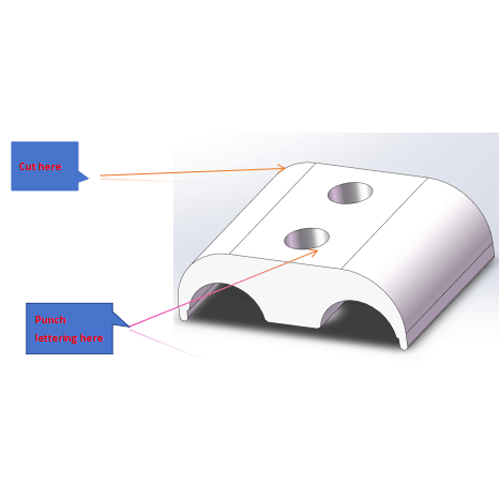

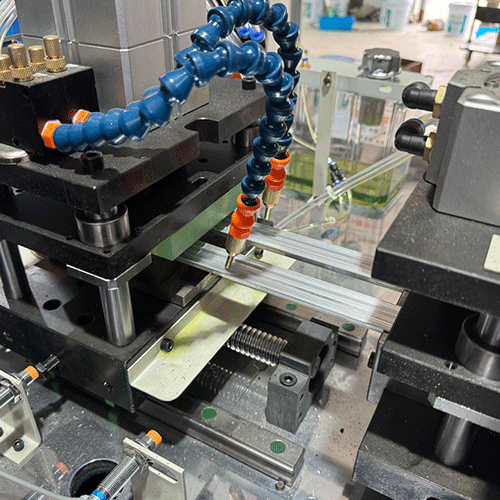

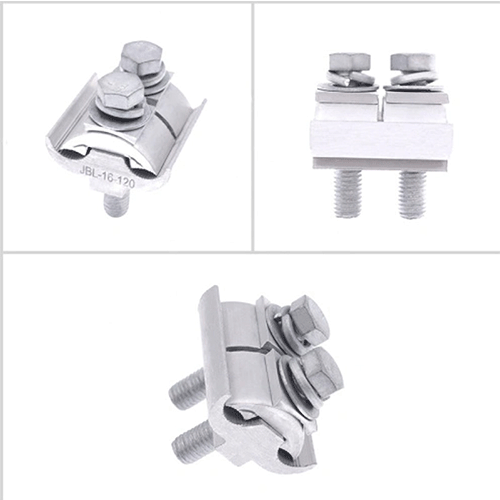

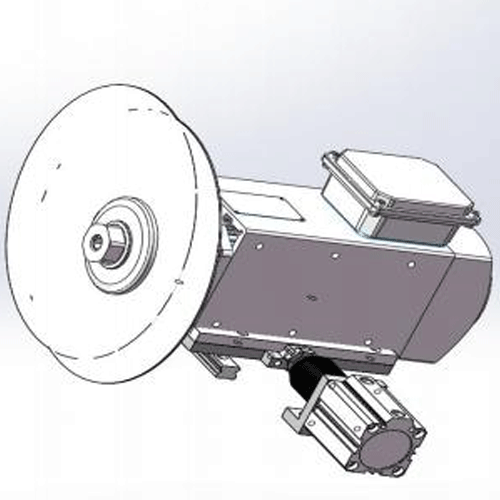

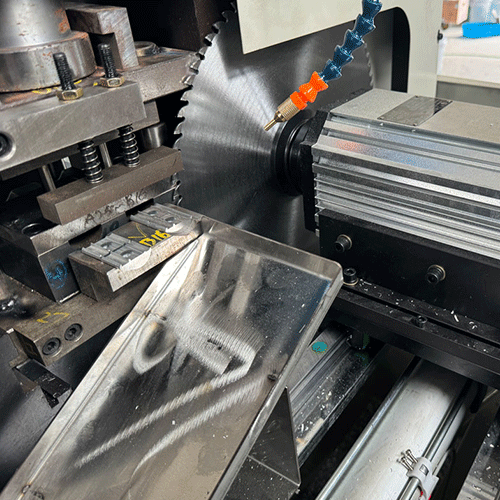

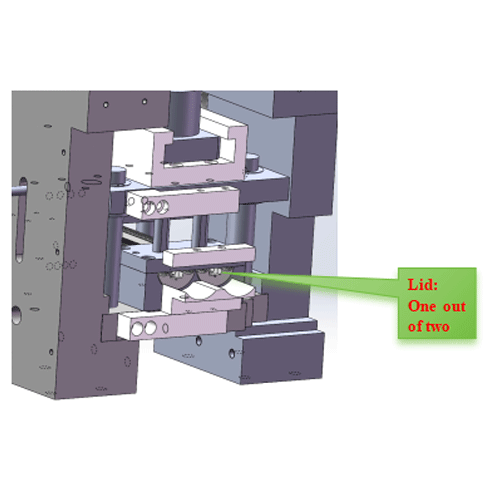

The machine combines hole punching and saw cutting into a single automated sequence, eliminating the need for separate workstations. At 1,200 pieces per hour, it turns raw aluminum profile into ready-to-ship parallel groove clamps with minimal operator intervention, significantly reducing per-unit labor cost.

A Mitsubishi FX60MT PLC coordinates every stroke, cut, and feed movement with millisecond-level timing. Paired with AirTac pneumatics and proximity sensors, the system maintains tight tolerances across extended production runs — critical for clamps that must meet electrical connection standards.

The 10-inch touchscreen allows operators to select product recipes, adjust cycle parameters, and review alarm histories without specialized programming knowledge. Clear on-screen diagnostics help maintenance teams identify and resolve issues quickly, keeping overall equipment effectiveness high.

Delixi and Chint components — widely used across Chinese and international manufacturing plants — provide overcurrent and short-circuit protection for the 10 KW motor and control circuits. Spare parts are readily available, reducing long-term maintenance cost.

All moving parts and drive mechanisms are enclosed within the machine cabinet, protecting operators from pinch points and debris. The signal lamp system gives clear visual feedback on machine status, supporting safe multi-machine supervision on the factory floor.
