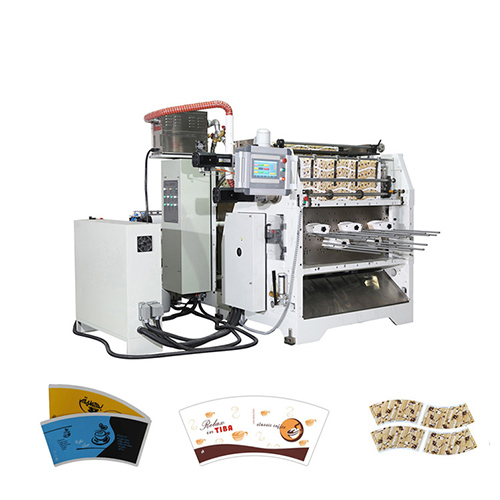

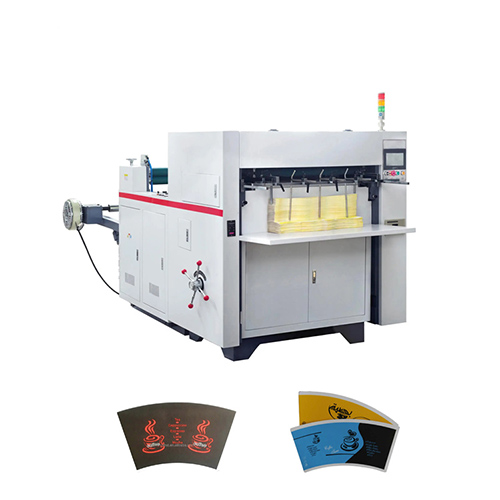

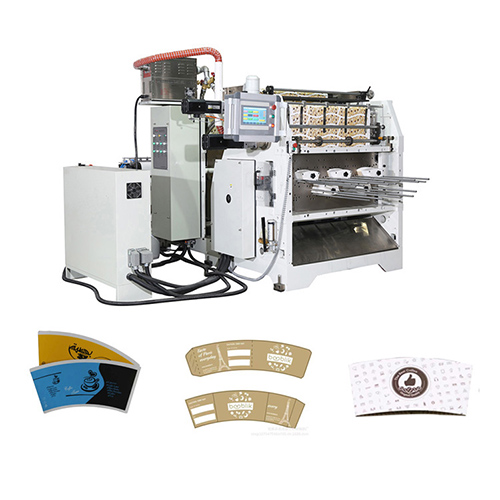

Automatic Die Cutting Machine

High-speed rotary die cutting at 210 cycles/min with ±0.10mm precision from roll to finished blank.

Industrial rotary die cutting machine engineered for paper cup manufacturers and packaging converters requiring direct roll-to-blank processing. Servo-controlled positioning eliminates sheeting operations while maintaining consistent dimensional accuracy across thick cardboard stocks.

View Products

Key Specs Overview Technical Specifications Applications Video FAQ Contact Related

Key Specs

Power

14.5KW

Weight

6.2T(standard);7800kgs(heavy)

Dimension

4200 x 2100 x 1850 mm

Capacity

150-210times/min

Overview Points

Direct Roll Processing

Cuts 120-600 g/m² coated paper and cardboard directly from roll, eliminating sheeting step.

Servo Precision Control

Servo positioning with photoelectric correction maintains ±0.10mm accuracy across 950mm width.

High-Speed Production

150-210 cycles per minute output matches multiple downstream forming line requirements.

Automated Roll Handling

Hydraulic loading for 1,800mm diameter rolls reduces changeover time and operator handling.

Quick Die Changeover

950×540mm cutting area with pneumatic plate lock enables fast blank shape transitions.

Heavy-Duty Cutting

350-ton maximum pressure handles thick multi-layer cardboard without pressure reduction.

Automatic Lubrication

Centralized thin-oil system with timed oiling extends component life, reduces maintenance.

Compact Design

4,200×2,100×1,850mm footprint at 14.5kW keeps space and energy costs proportional.

Key Features

Servo-Driven Precision

The servo positioning system, combined with photoelectric web correction, maintains ±0.10mm cut accuracy at full production speed. This level of repeatability is critical for paper cup fan blanks and packaging die-cuts where even small deviations cause downstream forming rejects.

High-Throughput Roll-to-Blank Processing

Operating at 150–210 cycles per minute, the machine processes paper directly from rolls up to 1,800mm in diameter, bypassing separate sheeting operations. Automatic hydraulic roll loading and unloading keep changeover times short, maximizing actual run time per shift.

Heavy-Duty Cutting Platform

A 350-ton maximum pressure capacity ensures clean cuts through materials ranging from 120 g/m² coated paper to 600 g/m² white cardboard. The worm-gear-driven platen distributes force evenly, preventing partial cuts and extending die life.

Quick-Change Tooling

Pneumatic plate locking allows operators to swap die plates in minutes without hand tools. Different blank shapes — fan-shaped cup blanks, lid rings, folding carton profiles — can run on the same machine with minimal downtime between jobs.

Reliability and Protection

Electromagnetic clutch control, overload protection, and centralized automatic lubrication work together to prevent mechanical damage and reduce unplanned stops. All critical drive components and the control system use imported parts selected for durability in continuous-duty industrial environments.

Technical Specifications

Cylinder paper high-speed automatic die-cutting machine is a kind of professional equipment for cutting various kinds of paper, such as indentation paper, coated paper, white card paper and so on. The machine adopts microcomputer and man-machine interface, servo drive positioning, AC frequency conversion, automatic counting, manual (pneumatic) locking plate, photoelectric correction, electromagnetic clutch, centralized lubrication of thin oil, automatic hydraulic loading and unloading, automatic timing and oiling, overload protection and unique rotating mechanism, which realizes paper withdrawal, smooth paper conveying, accurate positioning, paper receiving in order, all key parts and control system of the machine It adopts imported products and precision assembly to ensure the stable operation pressure, accurate positioning, stable movement, safety and reliability of the machine.

Type:	BO-950
Cut Precision:	± 0.10mm
Production capacity:	150-210times/min
Paper Convey Width:	250-950mm
Max Roll paper diameter:	1800mm
Suitable Material:	120-600g/m2 coated paper,white cardboard
Total Power:	14.5KW
Total Weight:	6.2T(standard);7800kgs(heavy)
Maximum cutting size:	950x540mm / 950 x640mm(optional)
Maximum Pressure:	350T
Overall Dimension:	4200 x 2100 x 1850 mm
Working Air Source:	Air pressure :0.6Mpa ; Working air:0.3m³/min;

Applications

Paper cup and paper bowl fan-blank die cutting

Paper plate and food-tray blank production

Folding carton and packaging insert cutting

Paper lid and ring blank manufacturing

Label and hang-tag die cutting from roll stock

General paperboard component blanking for industrial packaging

Video

FAQ

What are the main specifications of Automatic Die Cutting Machine?

The key specifications of Automatic Die Cutting Machine include: Power: 14.5KW, Weight: 6.2T(standard);7800kgs(heavy), Dimension: 4200 x 2100 x 1850 mm, Capacity: 150-210times/min. Contact us for the full specification sheet.

What applications is Automatic Die Cutting Machine used for?

Automatic Die Cutting Machine is widely used in: Paper cup and paper bowl fan-blank die cutting; Paper plate and food-tray blank production; Folding carton and packaging insert cutting; Paper lid and ring blank manufacturing.
