Angle Steel Flange Forming Line
Automated angle steel flange forming at 15 m/min for high-volume HVAC duct production.
Industrial-grade angle steel forming line engineered for rectangular duct manufacturers requiring consistent flange production at scale. Combines Delta servo precision with heavy-duty construction to eliminate manual flange forming bottlenecks in high-volume HVAC fabrication operations.
Key Specs
Key Specs
Power
Weight
Dimension
Speed
Overview Points
Wide Material Range
Servo Precision Control
Dual Motor Power
Large Coil Capacity
Heavy Frame Construction
Digital Parameter Control
Protected Electronics
Compact Layout Design
Key Features

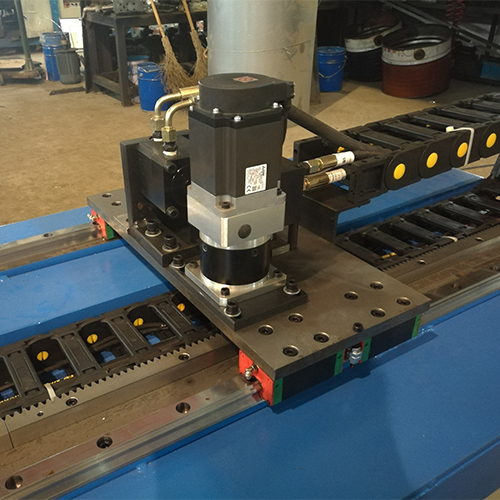

The Delta servo drive system controls feed length and forming position with repeatable accuracy, ensuring each angle steel flange meets tight dimensional tolerances required for leak-free rectangular duct connections.
A forming speed of 15 m/min allows the line to keep pace with downstream duct fabrication equipment, eliminating the flange supply bottleneck that slows many rectangular duct workshops.
With a thickness range of 2–4 mm and width range of 50–90 mm, the line handles a broad selection of angle steel profiles on one machine — reducing the need for separate equipment for different flange specifications.

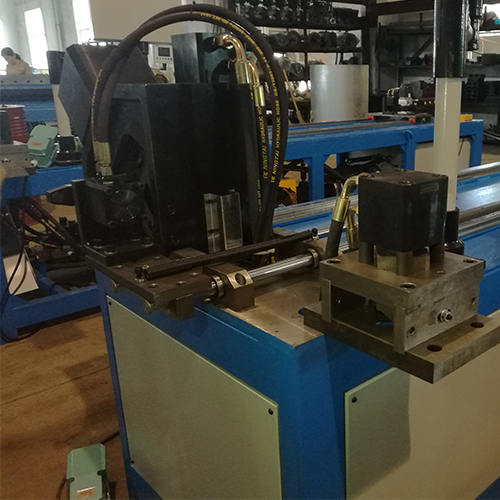

At 3,000 kg, the machine frame is built to absorb the forming forces of thicker gauge steel without flex. Linear guide rails and machined forming assemblies maintain alignment over years of daily use.
The integrated control panel provides clear digital readouts for speed, count, and fault diagnostics. An emergency stop button and enclosed electrical cabinet meet standard industrial safety requirements for sheet metal production environments.
Technical Specifications
| Speed（m/min） | 15 |
| Thickness（mm） | 2~4 |
| Width（mm） | 50~90 |
| Maximum Coil Diameter | 1300 |
| Servo Drive | DELTA |
| Power（kw） | 4.5+4 |
| Weight（kg） | 3000 |
| Dimension（mm）Mian Machine | 3800x1050x1750 |
| Decoiler | 1500x500x1050 |
Applications
HVAC rectangular duct fabrication — producing TDF/TDC flanges for duct connections
Industrial ventilation system manufacturing
Commercial building mechanical contractors prefabricating ductwork
Cleanroom and pharmaceutical facility duct production
Fire and smoke exhaust duct manufacturing
On-site duct workshops for large construction projects
Video
FAQ
The key specifications of Angle Steel Flange Forming Line include: Power: 4.5+4, Weight: 3000, Dimension: 3800x1050x1750, Speed: 15. Contact us for the full specification sheet.
Angle Steel Flange Forming Line is widely used in: HVAC rectangular duct fabrication — producing TDF/TDC flanges for duct connections; Industrial ventilation system manufacturing; Commercial building mechanical contractors prefabricating ductwork; Cleanroom and pharmaceutical facility duct production.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
