Steel Wire Flattening Machine Wire Flattening Machine For Outer Casing Hose Send to France

Product Description Wire Flattening Machine For Outer Casing Hose Purpose The wire flattening machine is used to flat steel wire into flat shape, which is suitable for outer casing hose purpose as raw material. 1- Equipp…

Steel Wire Flattening Machine Wire Flattening Machine For Outer Casing Hose Send to France

Product Description

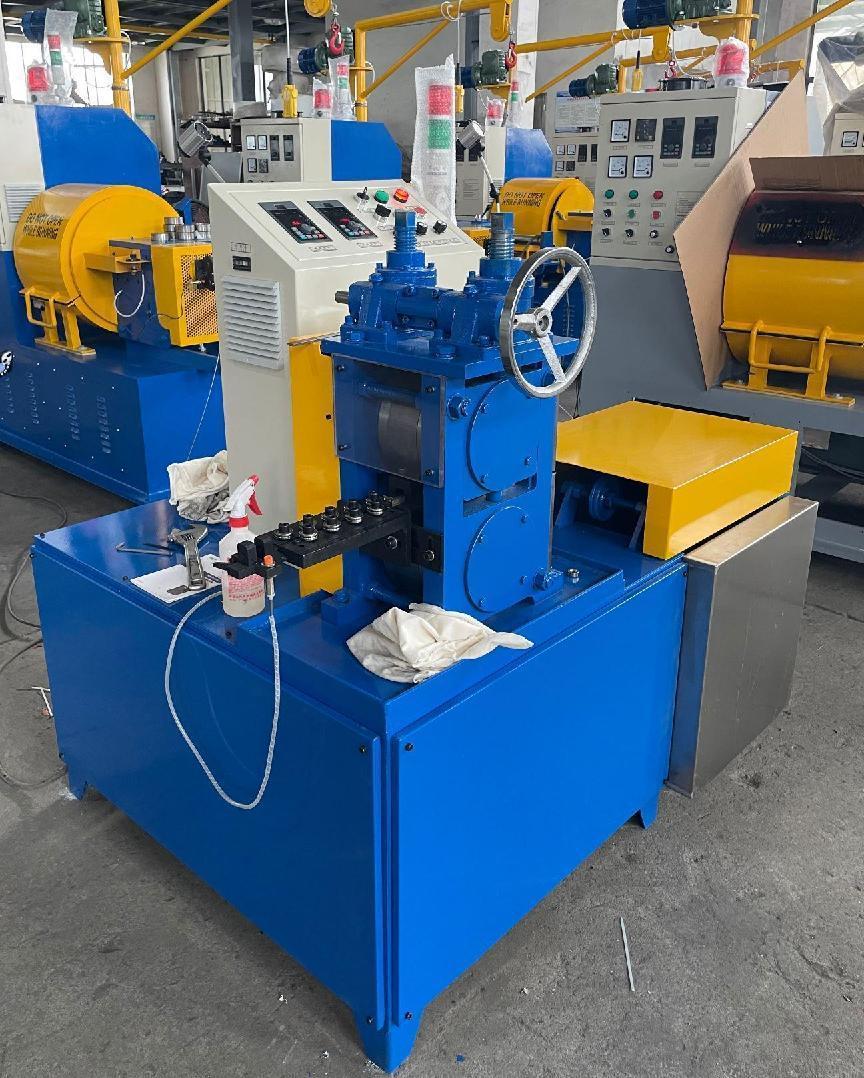

BOBO Machine steel wire flattening machine wire flattening machine for shown in a detail photo for this news article

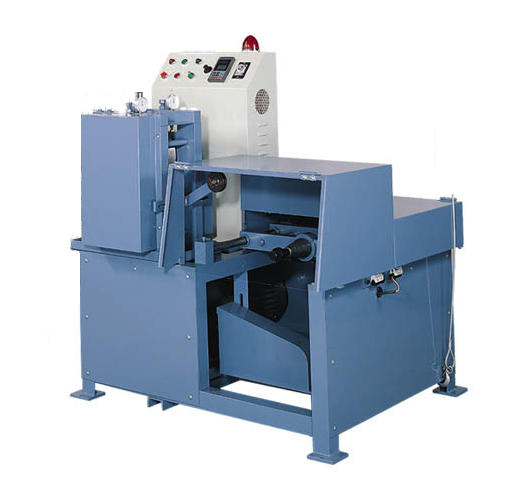

BOBO Machine steel wire flattening machine wire flattening machine for shown in a detail photo for this news article

Wire Flattening Machine For Outer Casing Hose Purpose

The wire flattening machine is used to flat steel wire into flat shape, which is suitable for outer casing hose purpose as raw material.1- Equipped with carbide alloy roller for water-cooling free work.
2- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment.
3- Equipped with auto alarm and emergency stop function for wire feeding control
4- Equipped with straightening device for wire feedingSpecification

No. Description Data
1 Model WF-200
2 Max. wire diameter 1.7mm
3 Wire output speed 1.2m/s above
4 Pressing roller diameter 200mm
5 Wire flattening tolerance ≤±0.01mm
6 Bobbin capacity 110kg
7 Motor power 3.0kw, 0-50Hz, 3Phase.
