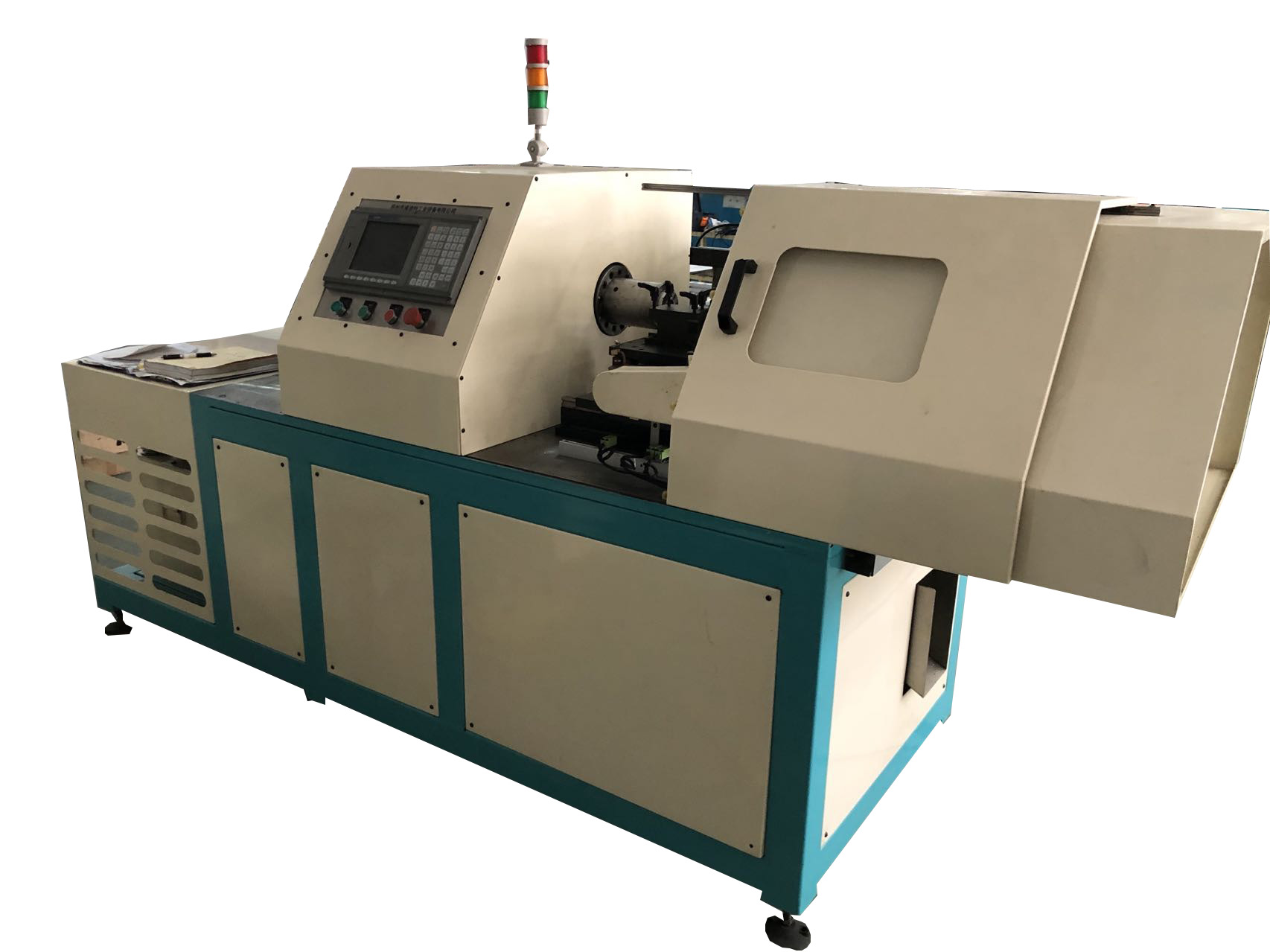

Full automatic condenser pipe end shrinking machine
Full automatic condenser pipe end shrinking machine is specially used to narrow the diameter of copper, aluminum or steel pipe in order to make good connection during condenser and evaporator manufacturing. It is with PLC control, auto feeding, auto swaging and auto discharging, easy opeartion, high efficiency.
Specification
| No |
Item |
Data |
| 1 |
Input voltage |
3 phase 4 lines, 50HZ |
| 2 |
Pipe diameter range |
Φ4-Φ20mm |
| 3 |
Working pressure |
0.5-0.6Mpa |
| 4 |
Shrinking length |
Normal type  5-50mm |
| 5 |
Shrinking length |
Extended type 10-95mm |
| 6 |
Speed |
10-30 pieces / min |
| 7 |
Pipe length range |
60-305mm |
| 8 |
Bore control range |
Φ1.9~Φ16±0.05 |
| 9 |
Operation |
Manual feeding, automatic shrinking |
| 10 |
Power |
1.5kw |
| 11 |
Dimension |
1840*600*1180mm |
