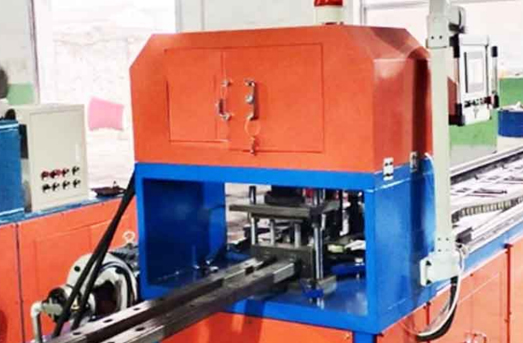

CNC Automatic Hydraulic Square Pipe Tube Hole Sheet Metal Punching Machine For Dome Climbing Frame Send to Russia

  • Published on

Product Description

Heat exchanger condenser evaporator copper and aluminum tube pipe resistance welder machine

This is an automatic climbing frame punching square tube CNC punching, aluminum alloy guardrail opening and cutting off a forming machine.

The machine uses PLC control panel, a key operation is simple and easy to understand, but also uses a high-powered pure copper motor, high-pressure vane pump, silent and powerful.

Feature

* CNC positioning

* Imported abrasives

* Safety and efficiency

* Accurate punching and cutting

* Multi-purpose machine, smooth cutting

* High temperature quenching,wear-resistant and durable

Product Paramenters

1 Name CNC Automatic Hydraulic Square Pipe Tube Hole Sheet Metal Punching Machine For Dome Climbing Frame
2 Type punching machine
3 Punchable thickness 0.5-1.2
4 Number of punching tubes in one time 1月2日
5 Gantry frame Steel
6 Punching speed 50~70 times/min
7 Dimension 6900* 1500*1000mm
8 Punching accuracy ±0.05MM
9 Max. length of workpiece 6M
10 Feeding method Cylinder clamping, servo-drag feeding
