Automatic Steel Metal Round Square Rectangular Tube Pipe SS Bending Machine Send to the USA

The full automatic serpentine bender is used to process single aluminum/ copper / Bundy tube with de-coiling, straightening and cutting machine and bending function in one line automatically. Compare to traditional manua…

Automatic Steel Metal Round Square Rectangular Tube Pipe SS Bending Machine Send to the USA

  • Published on

Product Description

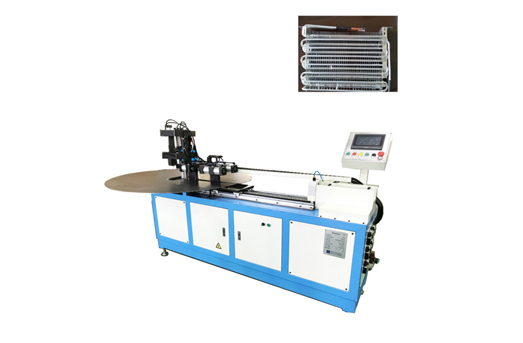

The full automatic serpentine bender is used to process single aluminum/ copper / Bundy tube with de-coiling, straightening and cutting machine and bending function in one line automatically.
Compare to traditional manual process, the full-automatic machine improve the work efficient and save labor cost greatly.

Product Paramenters

Parameter Data
1 Tube Material Steel Tube / Bundy tube/stainless steel tube
2 Tube Diameter Φ3-12mm
3 Tube Wall Thickness 0.3-1.0mm
4 Bending Capacity 1-12 pcs / cycle
5 Bending Angle 1~180 degree
6 Bending Radius R15~R35
7 Bending Times Up to 110 times/cycle
8 Feeding length 0-700mm/time, max. 3 times
9 Table Size Φ1200mm
10 Control System PLC control / Touch Screen
11 Motor Power 3.5KW
12 Electric System 380V, 50Hz, 3Phae (Customized)
13 Dimension 2200 x 1100 x 1580 mm (Excluded Table)
14 Weight About 1260 KG
