Product Description

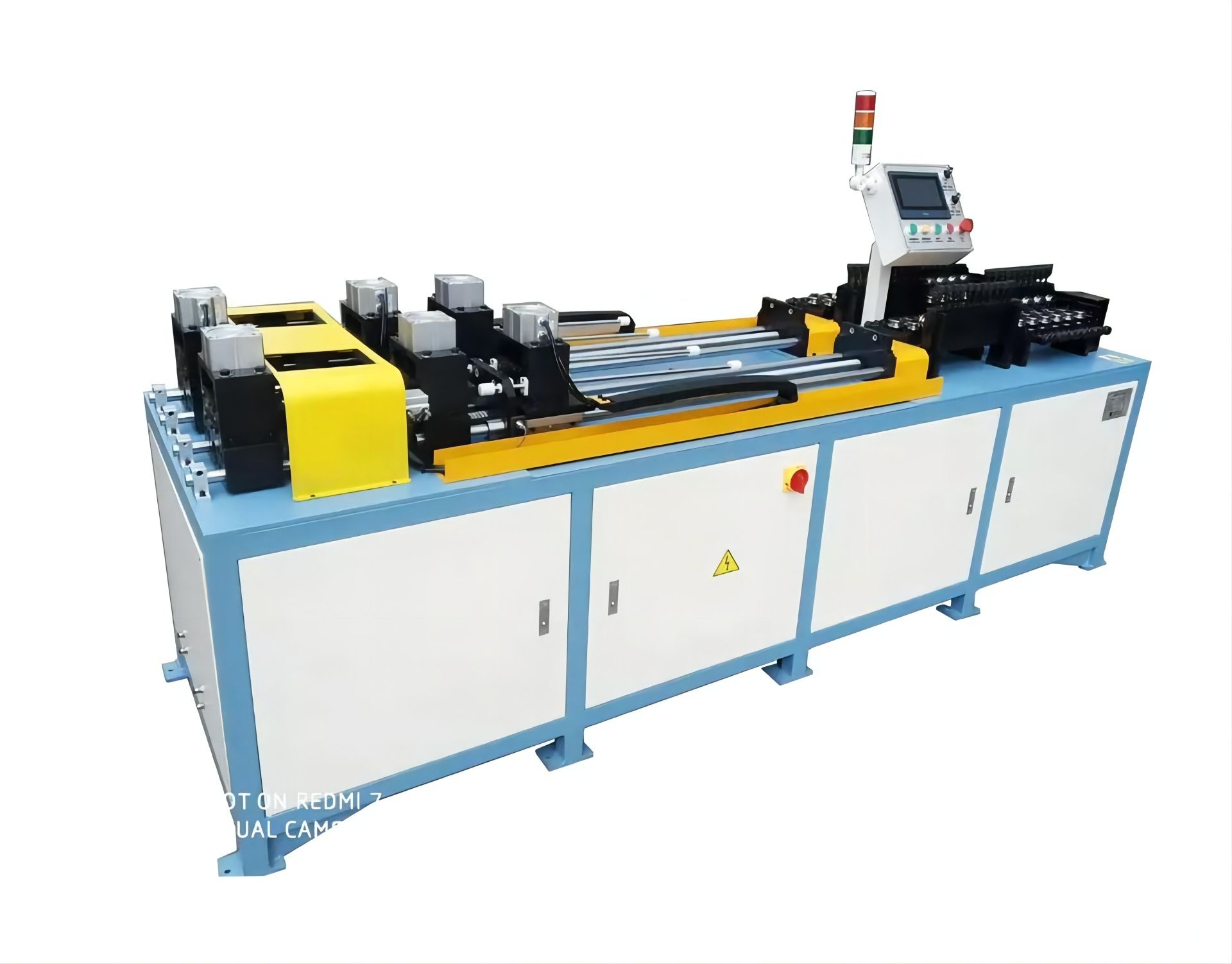

Automatic High Speed Hydraulic Steel Wire Straightening and Cutting Machine

The high speed steel wire cut to length is special designed for wire on tube condenser making, the cutting wire diameter is 1.1-1.5mm. With inverter control, the straightening wheel and cutting blade speed is adjustable.

Features

1. Feeding, cutting with motor driven, straightening with inverter control.
2. With touch-screen control, the cutting length, straightening drum rotating speed, feeding speed can be set and adjusted.
3. The straightening device equipped with auto-stop function when cover open. And alarm for no wire feeding
4. Servo motor and gear box driven system for high accurate feeding.

Specification

Parameter

Data

1

Wire Material

Carbon steel wire

2

Wire Diameter

1.1-1.5mm

3

Cutting Length

100-5000mm

4

Work Speed

0~150m/min, adjustable by Inverter

5

Cutting Tolerance

+/-0.5mm/1m

6

Control System

PLC control / HMI

7

Motor Power

1.50KW

8

Electric System

380V, 50Hz, 3Phae (Customized)

9

Dimension

1700 x 750 x 1350 mm (main machine)

10

Weight

860 KG
