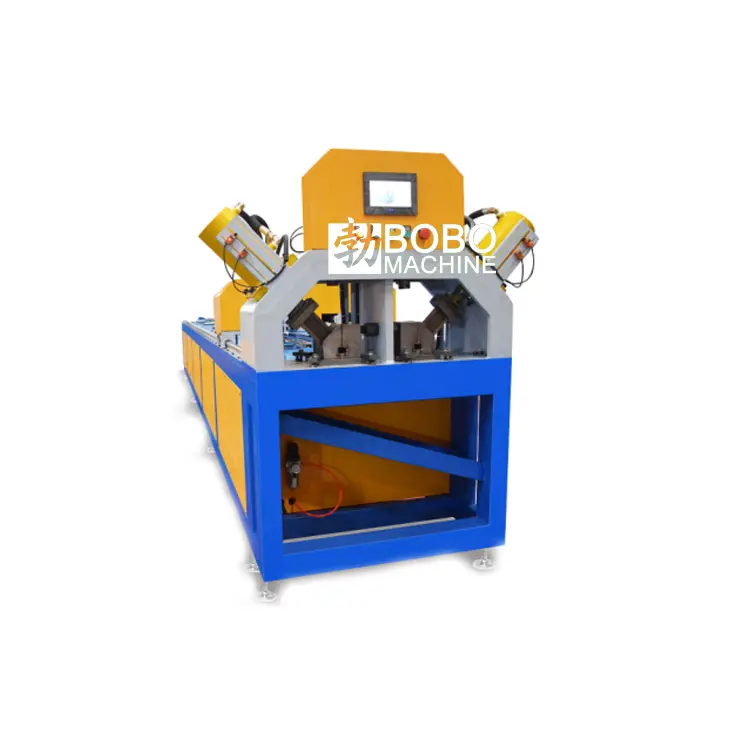

Automatic CNC Hydraulic Square Round Stainless Steel Sheet Metal Plate Pipe Tube Hole Punching Machine Send to Russia

Product Description

Summary

This hydraulic high-speed punching machine is widely used in punching and cutting stainless steel materials (also for zinc steel, aluminum alloy, steel pipe, welded pipe, seamless pipe, square pipe, round pipe, flat iron, channel steel, Angle iron).

Enter the system parameter setting ——> Manually send raw materials to the die mouth ——> Start the equipment ——> Servo automatic pulling ——> Automatic feeding punching/cutting ——>Collect finished products

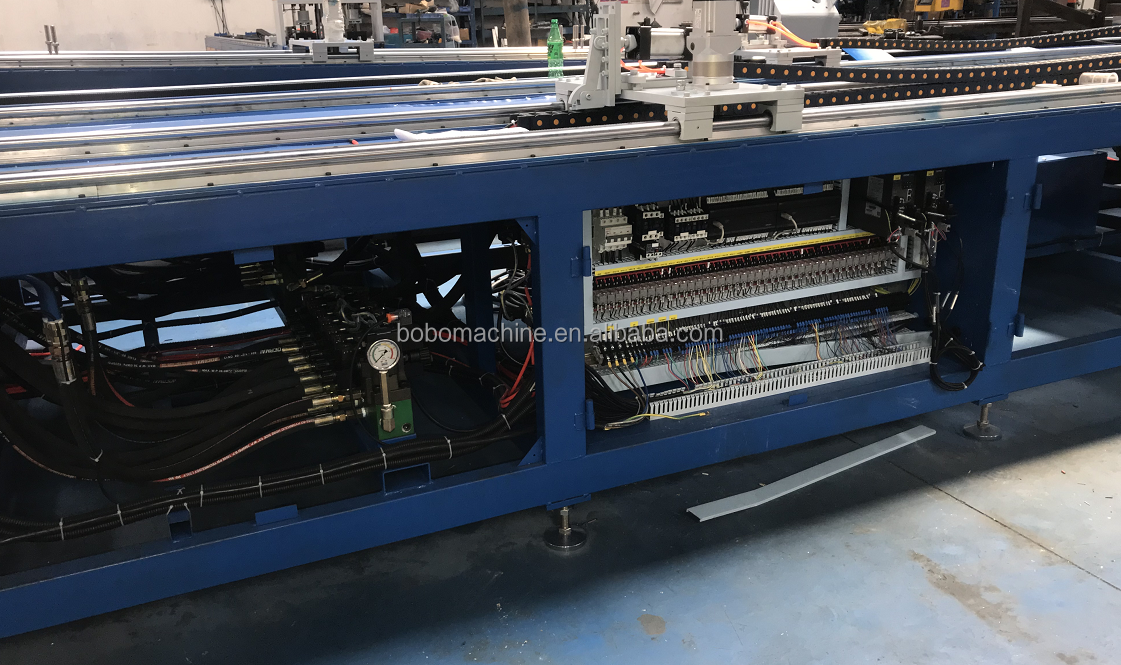

BOBO Machine automatic cnc hydraulic square round stainless steel sheet shown in a detail photo for this news article

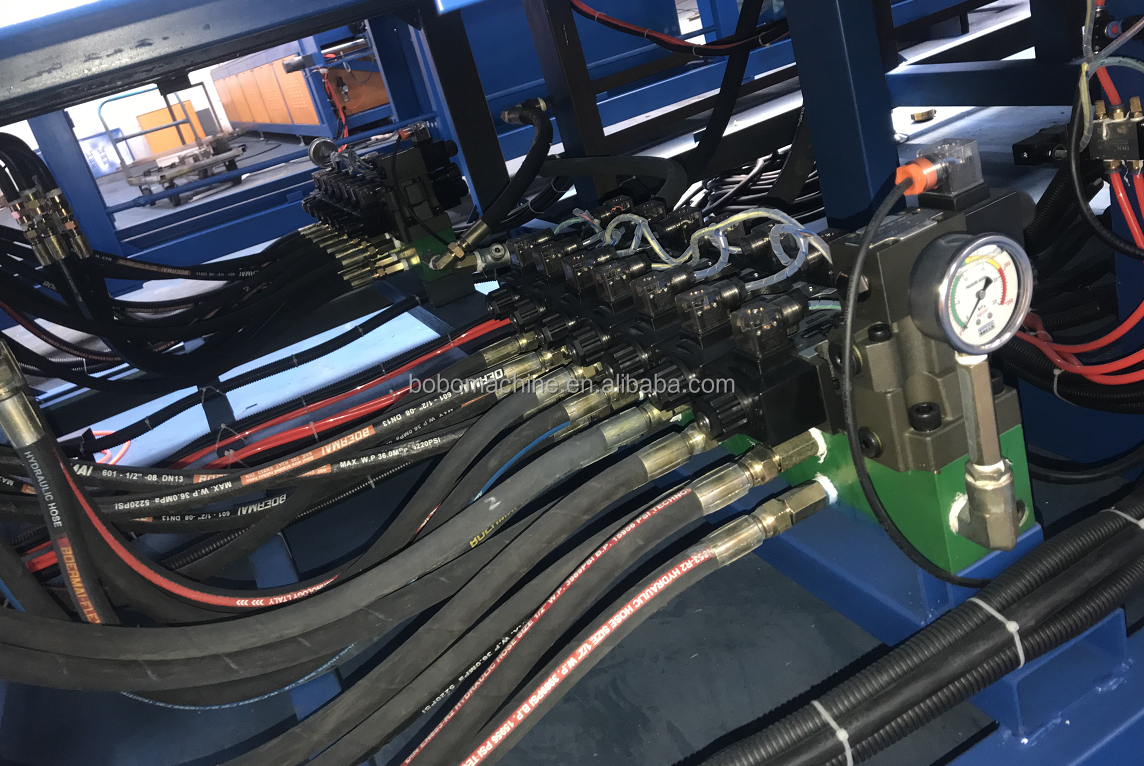

BOBO Machine automatic cnc hydraulic square round stainless steel sheet shown in a detail photo for this news article

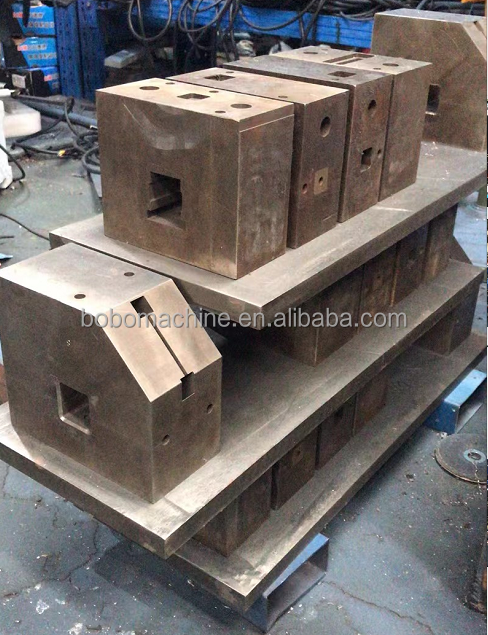

BOBO Machine automatic cnc hydraulic square round stainless steel sheet shown in a detail photo for this news article
BOBO Machine automatic cnc hydraulic square round stainless steel sheet shown in a detail photo for this news article

Specification

No.

Name

Data

1

Main motor power

11KW

2

Gantry

600-450 (including top and bottom)

3

Rail

SBR30 round rail

4

Reducer

1:10 Planetary reducer

5

Feeding method

PLC control double drive

6

Machine voltage

380V 50Hz three-phase four-wire

7

Cooling system

air cooling

8

Servo motor

1.0KW*1 (Taiwan Hechuan)

9

Processing length

6000mm

10

Oil tank capacity

80L

11

Punching pressure

35T-40T

12

Net weight

1.5T

13

Dimension

1000 * 6800 * 1500 (for reference)
