wire rope sling press machine and wire rope cutting machine send to USA

Time:2020-01-13 Comment:

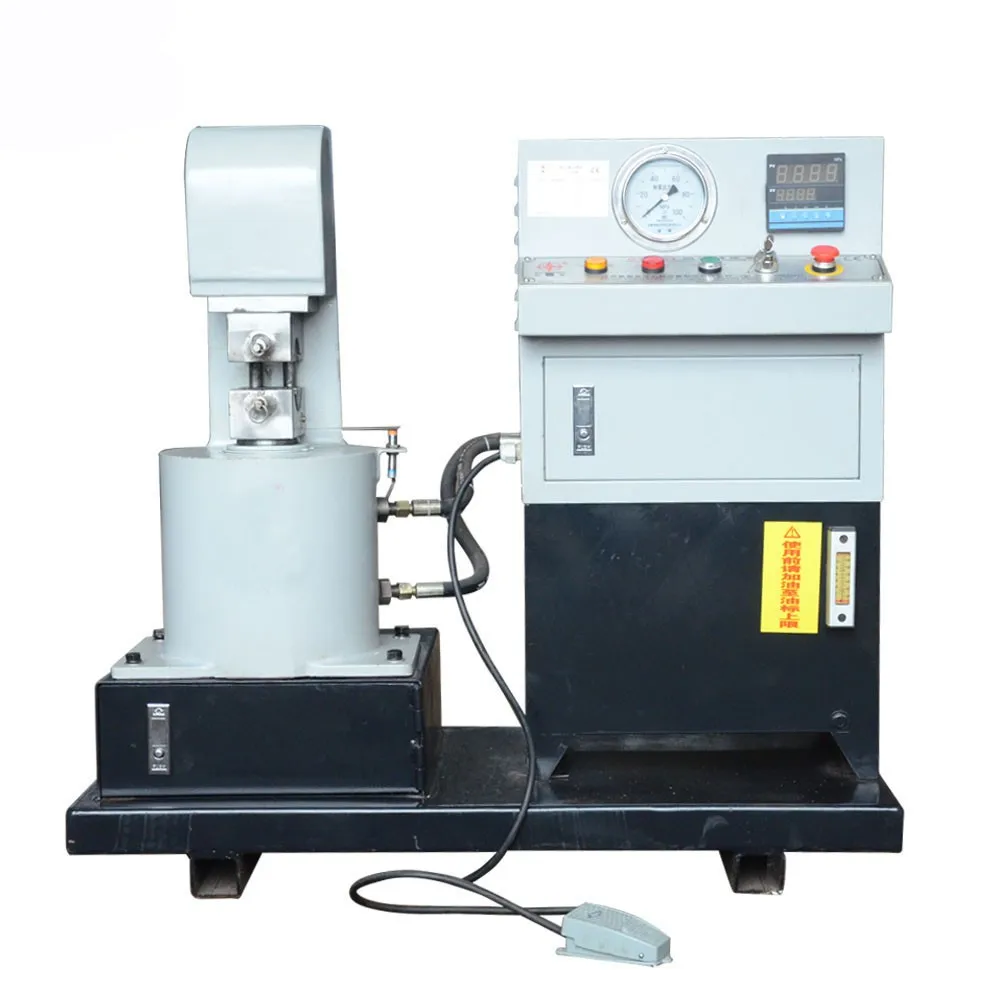

Hydraulic pressing machine for steel wire rope

We supply a wide range of wire rope press machines and wire rope annealing and tapering machines for different wire rope diameter.  This C frame is popular for small size wire rope, wire rope net production.

Please click on the below links for other wire rope machines:

Wire rope press machine

Wire rope cutting machine

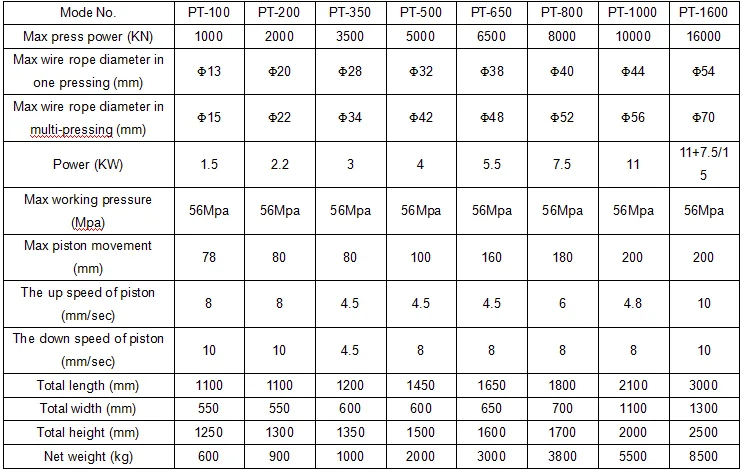

Mode No.
PT-100
Max press power (KN)
1000
Max wire rope diameter in one pressing (mm)
8
Max wire rope diameter in multi-pressing (mm)
10
Power (KW)
58
Max working pressure (Mpa)
78
Max piston movement (mm)
1.5
The up speed of piston (mm/sec)
15
The down speed of piston (mm/sec)
15
Total length (mm)
1100
Total width (mm)
550
Total height (mm)
1250
Net weight (kg)
600

Main Features

 1. It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.

2. Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.

3. Electric control parts of the low-voltage control, an increase of operating system security.

4. Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work efficiency.

5. PT wire rope press machine have exported to many countries, UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana and so on.
