Tube straightening and cutting machine KA-20 send to Turkey

Time:2021-06-11 Comment:

Professional metal pipe cutting machine for copper aluminum tube

The professional metal pipe cutting for copper aluminum tube is a machine specially designed for cutting copper and aluminum pipes, including straightening, cutting, end forming and other processes. Not only that, it can also realize chipless cutting to meet various requirements of heat pipe processing.
Features

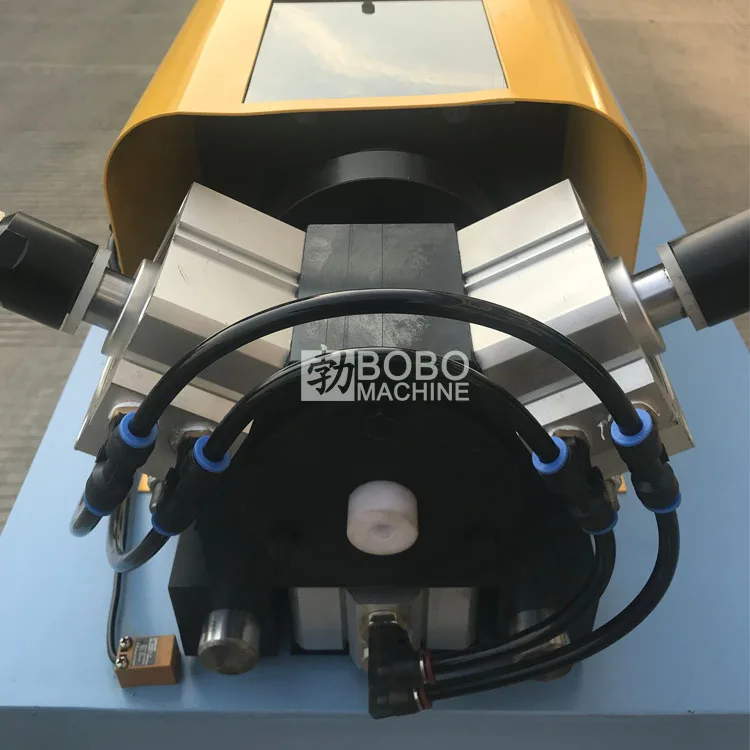

1. Three-piece clamping die to minimize pipe deformation and obtain a smooth cut end surface.
2. High-precision concentricity ensures good welding quality during subsequent processing.
3. 360°rotary cutting without chip cutting, two-point clamping and stretching.

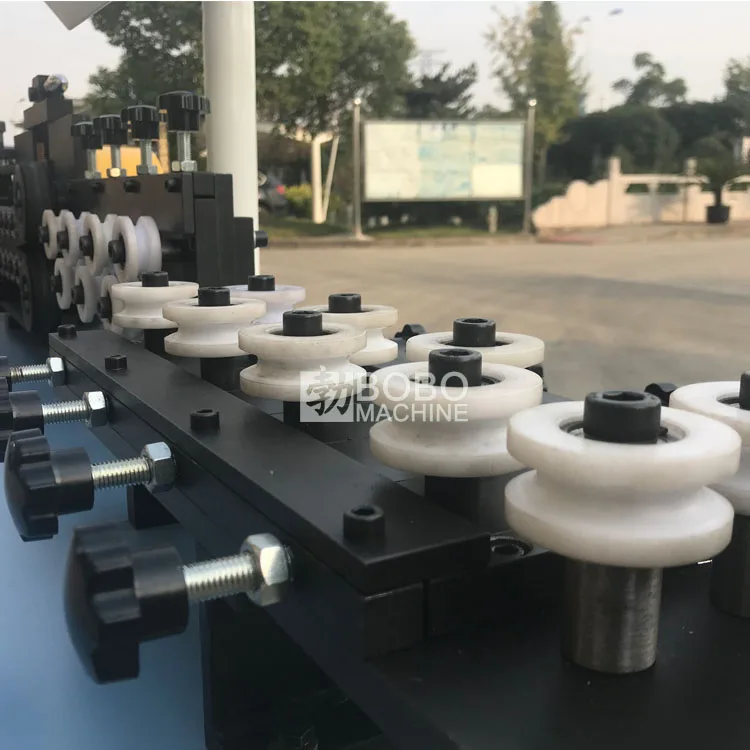

4. Straightening wheel nylon and "U" shaped rubber belt are fastened to avoid scratching the surface of the pipe

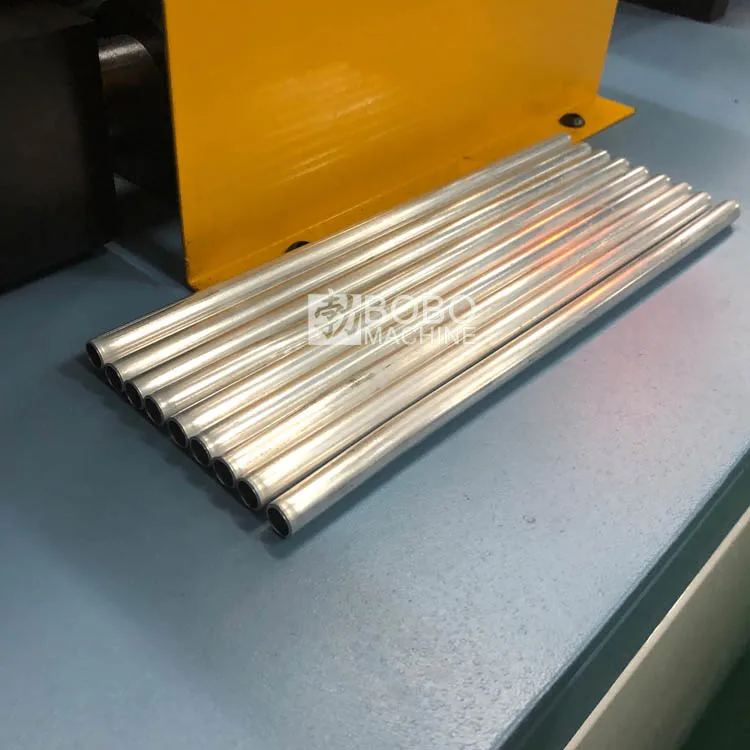

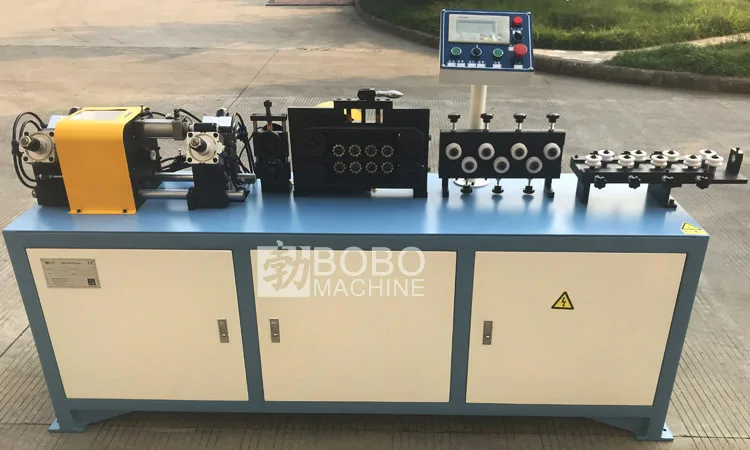

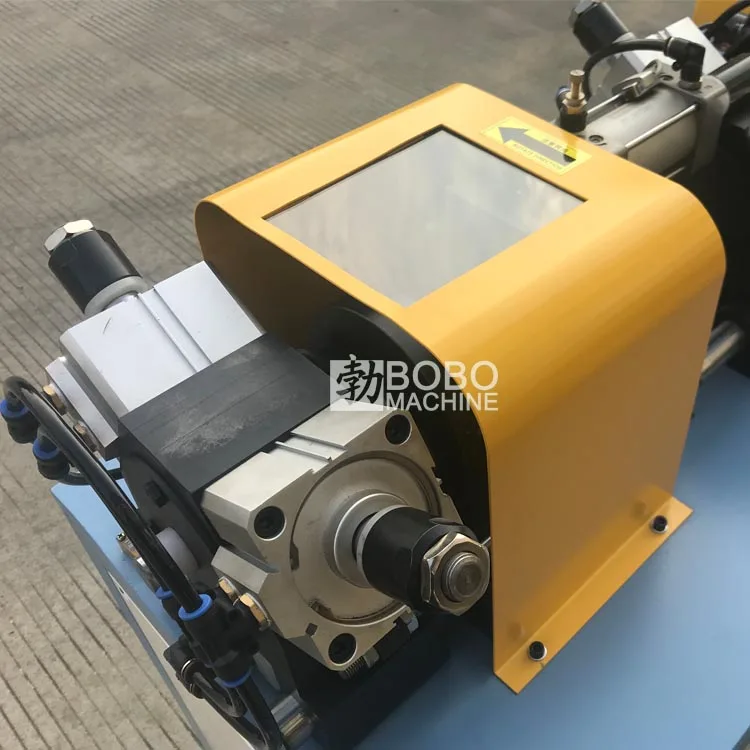

Detailed Images
Specification
No.
Parameter
Data
1
Tube Material
Steel tube/ Bundy tube
2
Tube Diameter
4-8mm
3
Cutting Length
>50mm
4
Work Speed
0~60m/min, adjustable by Inverter
5
Cutting Tolerance
0.5mm/1m
6
Control System
PLC control / HMI
7
Air Pressure
0.6-0.8MPa
8
Motor Power
1.12KW
9
Electric System
380V, 50Hz, 3Phae (Customized)
