Steel Clamp Clip Reinforced PVC / Glass Silicon / Tarpaulin Flexible Duct Machine Send to Turkey

Time:2020-10-31 Comment:

Product Application

The Steel clamp clip reinforced PVC / glass silicon / tarpaulin flexible duct machine is specifically designed to weld flexible reinforced ducts or tubes. This machine will weld reinforced tubes up to 1000mm diameter and can easily add a wear strip to the outside.Waterproof Vent Ventilation Polyster Ventilation Duct,Also insulated pvc ducting, flexible ducting for marine industry.

Steel clamp clip reinforced PVC / glass silicon / tarpaulin flexible duct machine
Engine
Speed
1-3
m/min
Power
5
kw
Voltage
380V/220V, 3phase or free customized
Main performance parameters
Diameter
80-1000
mm
Materials
PVC/Glass silicon /tarpaulin/textile
dimension
2000X820X1550
mm

Main Features

1)Hot air welding for continuous, automated manufacturing.

2)Variable wire diameter and wire pitch for product versatility
3)Unlimited ducting lengths
4)Heavy wire former, capable of bending diameters up to .250″ for an array of finished product.
5)Fabric tension control for easier material handling.
6)Welds multiple size tubes from 2″ to 48″ diameters increasing any size ducting output.

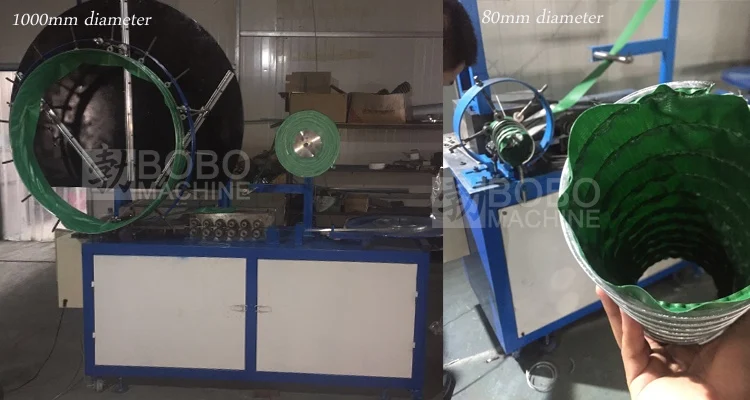

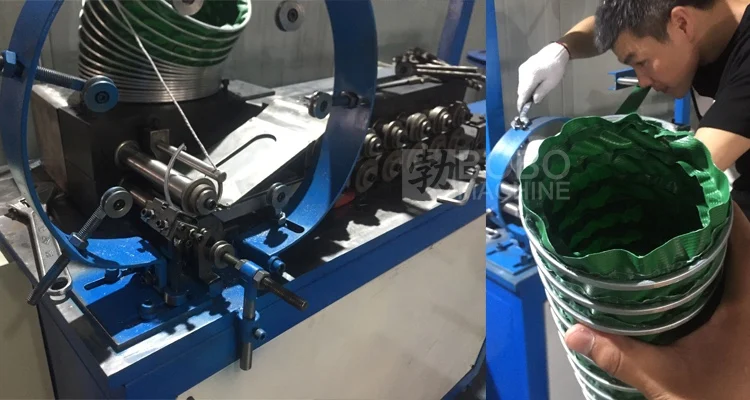

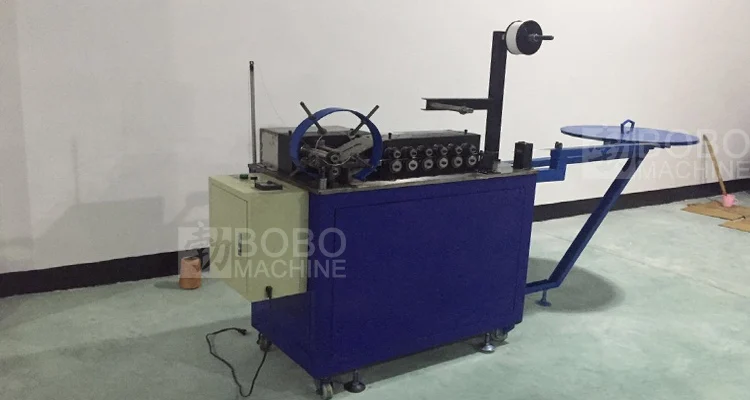

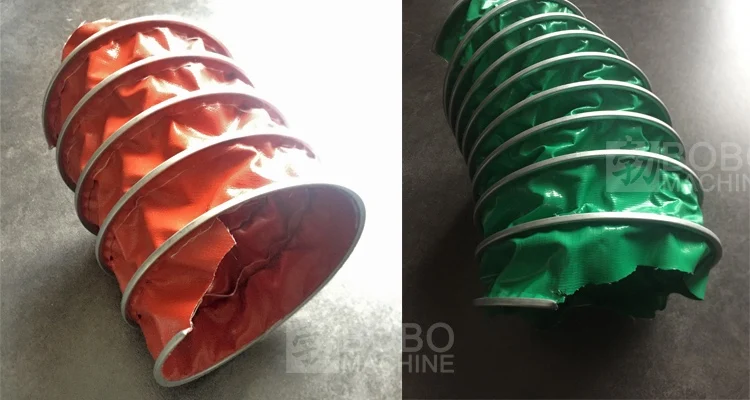

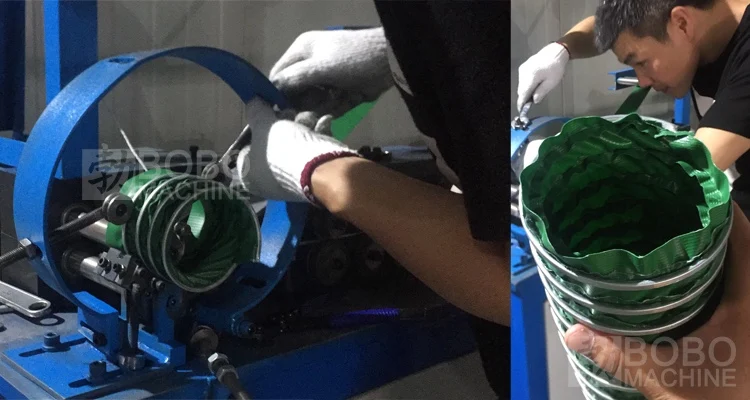

Detailed Images
