Rotating table steel bundy aluminum copper tube bending machine
The roating table type steel tube serpentine bender is widely used for condenser, evaporator tube bending process. Compare to traditional manual bending work, the semi-automatic bending machine can process up to 10-12 grouped tubes in one time bending according to various tube diameters, the work efficiency is much more upgraded, and the finished tube presents good appearance as per requirements.
Main Technical data
No.
|
Parameter
|
Data
|
1
|
Tube Material
|
Steel Tube / Bundy tube
|
2
|
Tube Diameter
|
Φ3-12mm
|
3
|
Tube Wall Thickness
|
0.3-1.0mm
|
4
|
Bending Capacity
|
1-12 pcs / cycle
|
5
|
Bending Angle
|
1~180 degree
|
6
|
Bending Radius
|
R15~R35
|
7
|
Bending Times
|
Up to 110 times/cycle
|
8
|
Feeding length
|
0-700mm/time, max. 3 times
|
9
|
Worktable Size
|
Φ1800mm
|
10
|
Control System
|
PLC control / Touch Screen
|
11
|
Motor Power
|
5.0KW
|
12
|
Electric System
|
380V, 50Hz, 3Phae (Customized)
|
13
|
Dimension
|
2200 x 1000 x 1580 mm (Excluded Table)
|
14
|
Weight
|
About 1300 KG
|

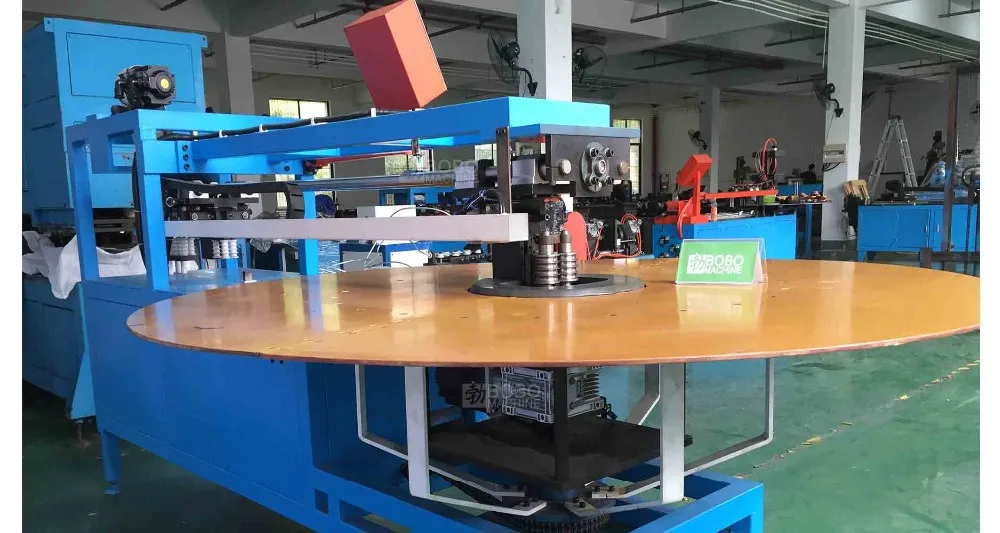

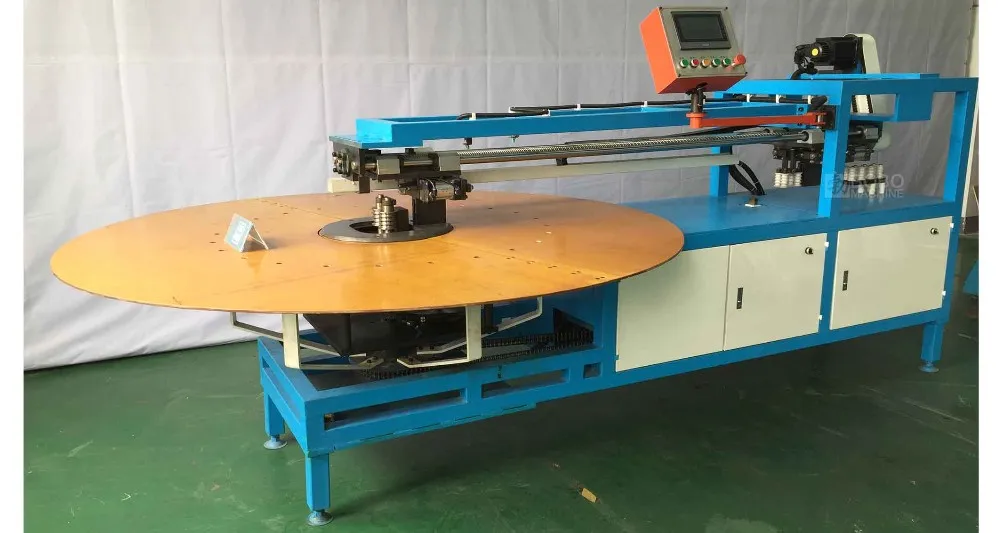

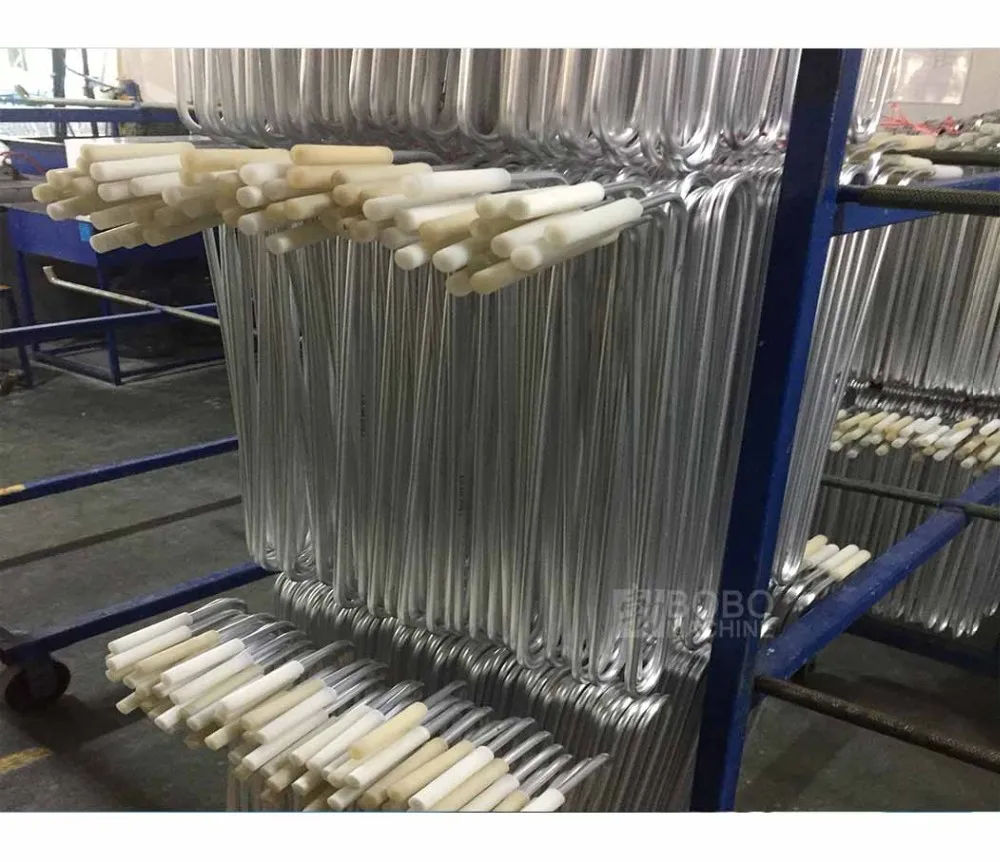

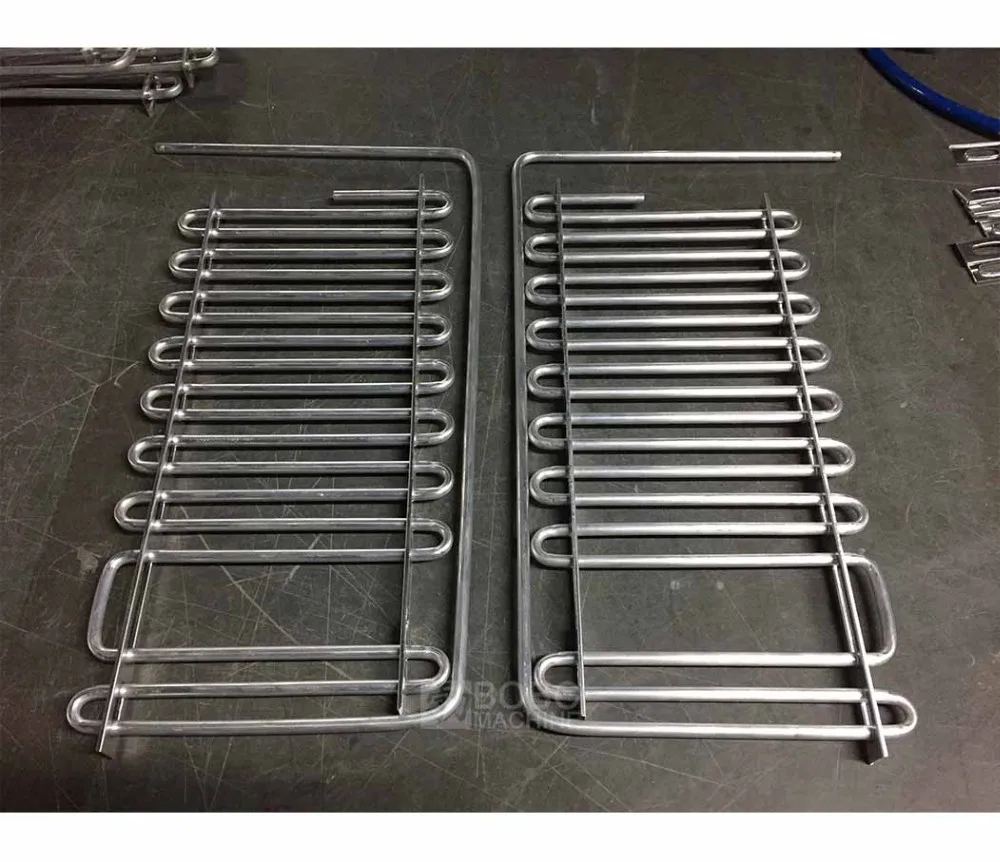

Detailed Images
Main Features
1. Patented special designed servo control bending system for different bending direction and bending angle in exact size. (Patent No.: ZL 2011 1 0092227.X)

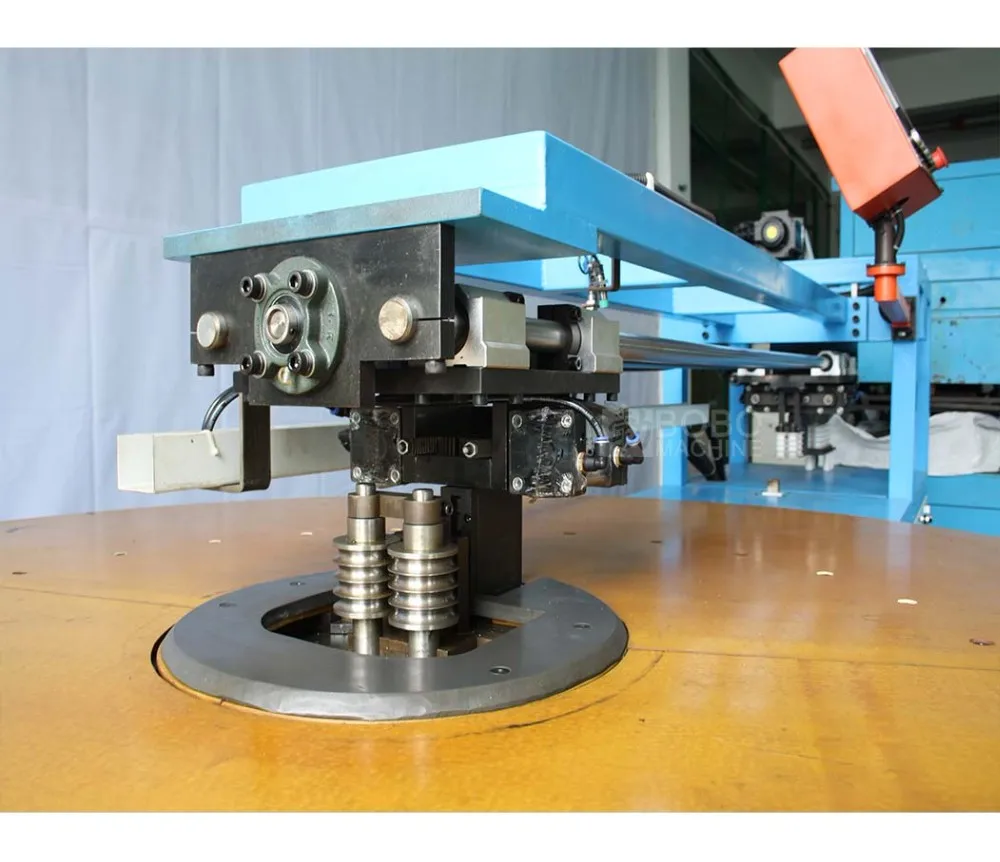

2. Patented special designed bending tools ensure exact bending radius, less deformation and good appearance (Patent No.: ZL 2011 2 0107426.9)
3. Patented special designed bending structure ensures the stable performance for up to 10-12 grouped tubes in one time. (Patent No.: ZL 2009 2 0013741.8)

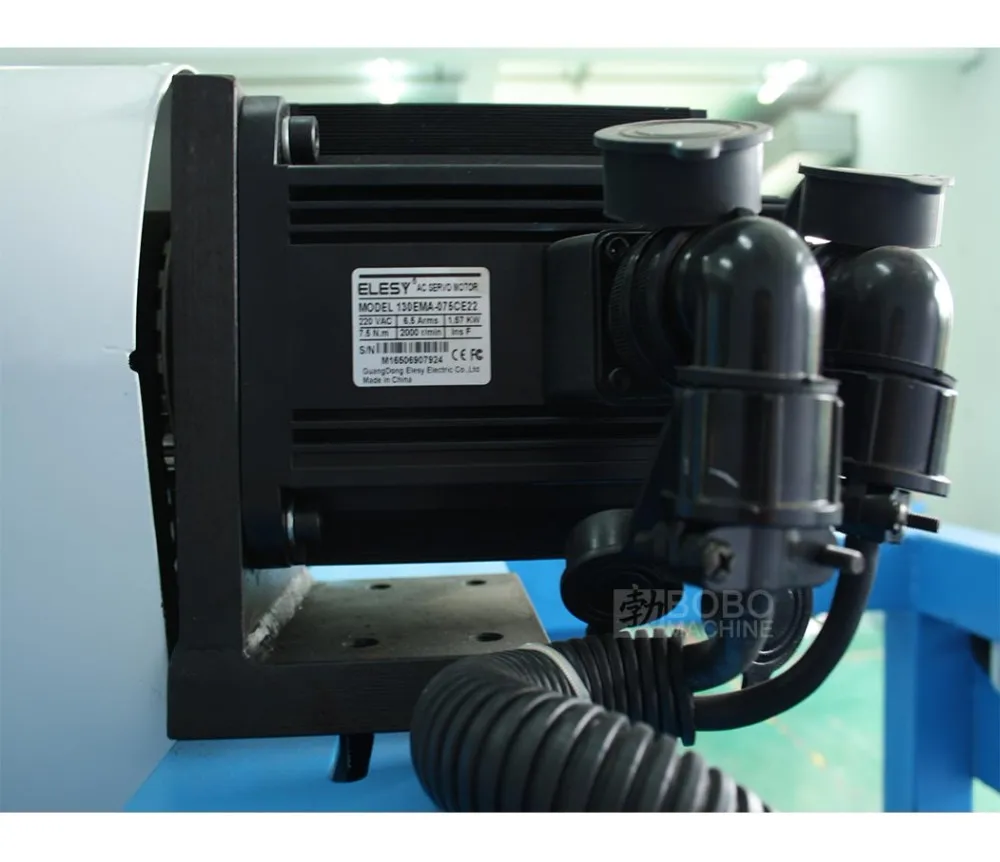

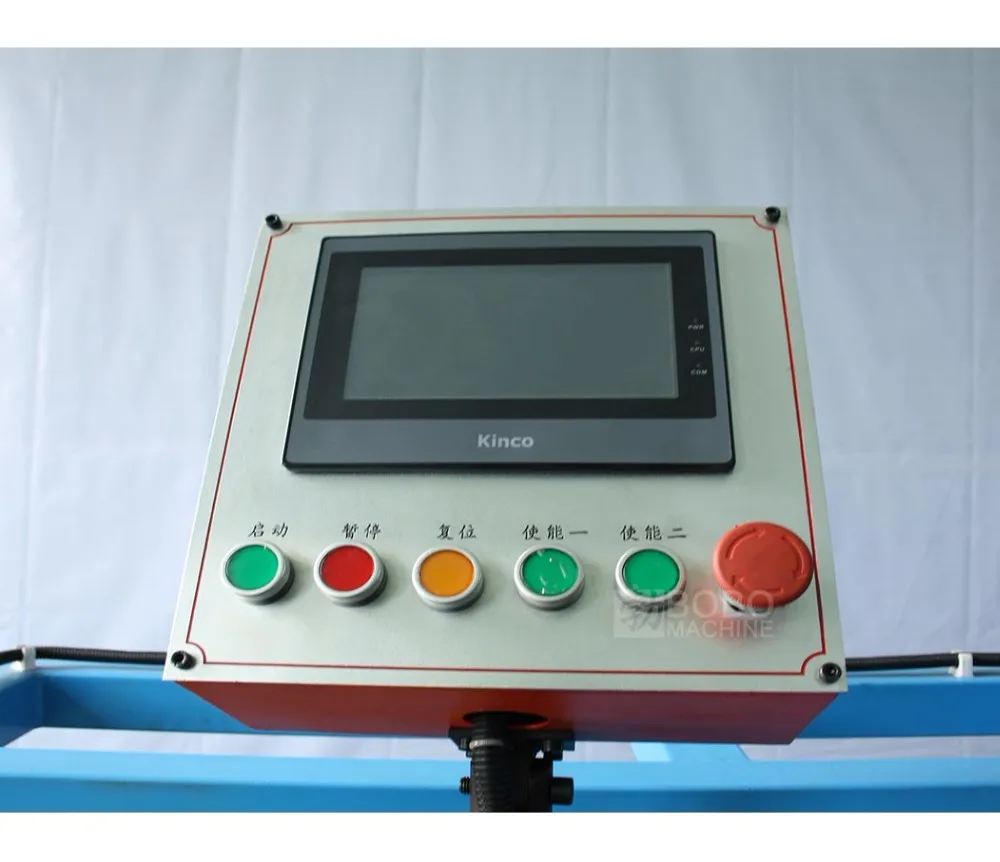

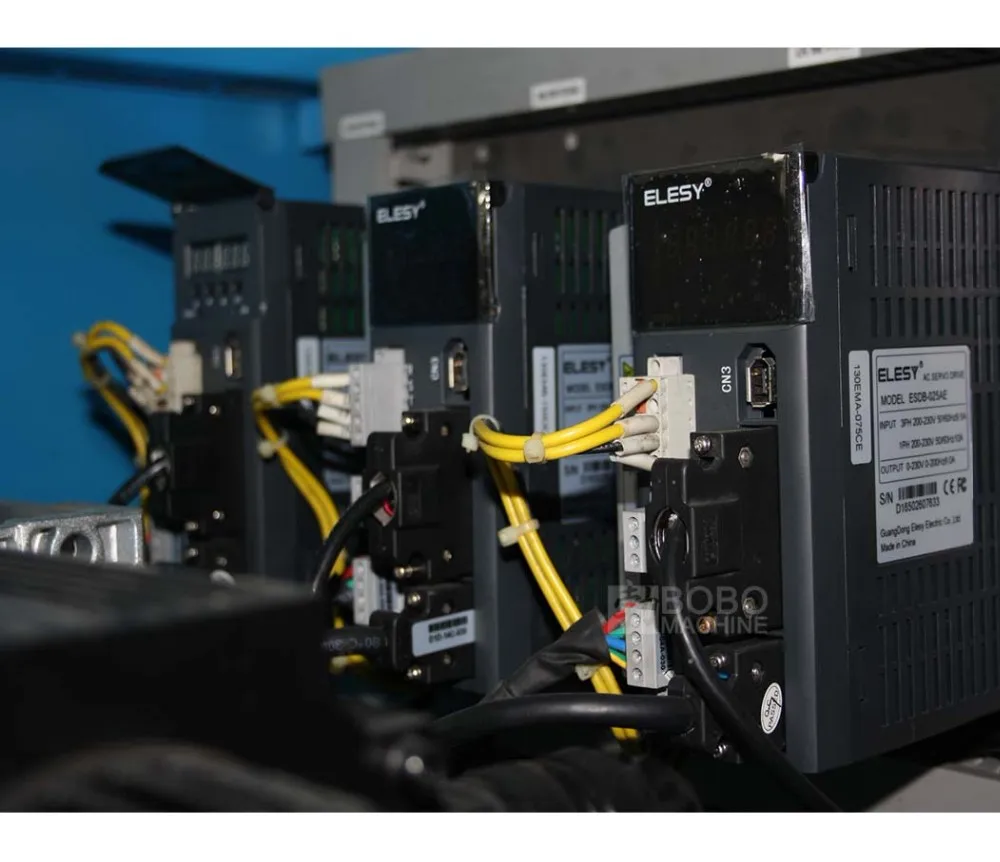

4. Servo drive system, PLC control system, and touch screen control to get high accuracy product size with easy operation and maintenance.
5. Matched with automatic tube chipess cut to length machine, the semi-automatic serpentine bender takes large output capacity with less fault and breakdown.
Packing & Delivery
Packaging
|
|
Size
|
3000* 1300 * 1680 (Excluded Table)
|
Weight
|
About 2500 KG
|
Packaging Details
|
The normal package is wooden box.
If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
