Rigid polyurethane spray foaming machine Send to Romania

Time:2021-04-16 Comment:

Brief introduction

Polyure spray machine BDF-X is ultrahigh pressure machine which can spray both polyurethane foam and polyurea coating. It is with stable performance and strong capacity and power. It is widely used in building constructions and projects.

No
Desription
Item
1
Model
BDF-X
2
Max. flow capacity
2-8kg/min
3
Mixing ratio
1:1, fixed ratio
4
Material viscosity range
200-1000cps(operation temperature
5
Max. system pressure
9-20Mpa
7
Material heating capacity
9000W*2
8
Hose heating capacity
3200W
9
Max. hose length
90m
10
Electric system
38A*3+16A, 380V 3phase

11
Dimension
930*800*1200mm
12
Weight
125kg
13
Standard configuration
Main machine, one set
Feeding pump, two pieces
Spray gun, one piece
Gun connection hose 1.5m, one piece
Heating hose 15m, one piece
Common spare parts, 1 set

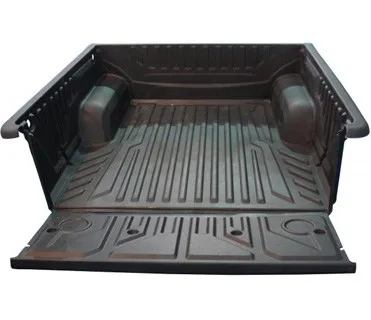

Application
Key parts

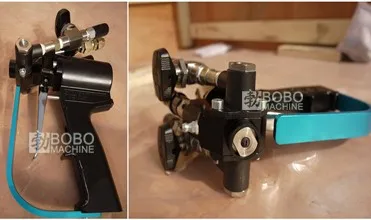

Spray gun

BDF-V polyurea spray machine is equipped with the latest generation gun PKIII, which is more durable and with better performance than the old generation.

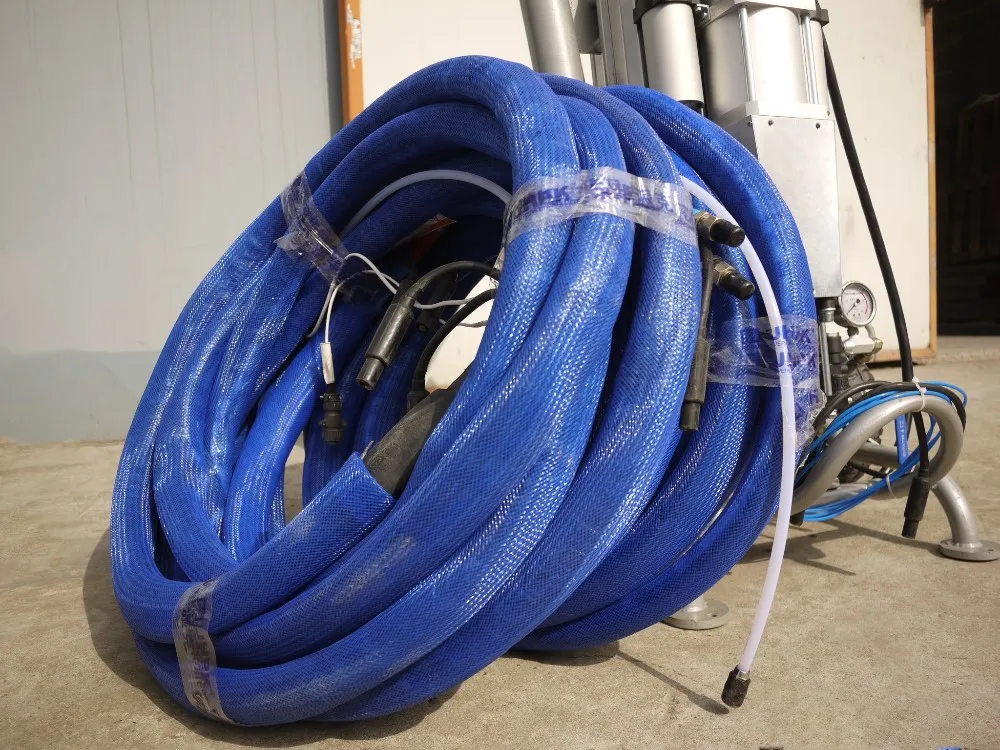

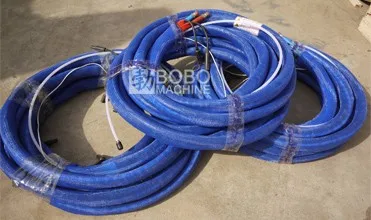

Heating hose

The standard length of BDF-V is also 15 meters. And the hose is with more heaters inside, which can heat the material better and faster.

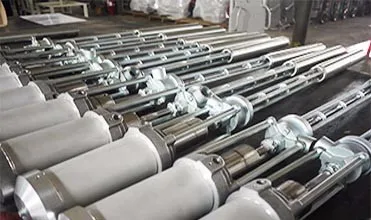

Feeding pump

With large capacity feeding pump than other models, which can feed the chemical faster.

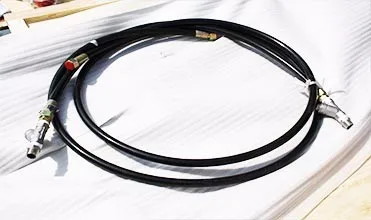

Connecting hose

The connecting hose is used to connect the heating hose to spray gun, which is made from high pressure rubber hose.
