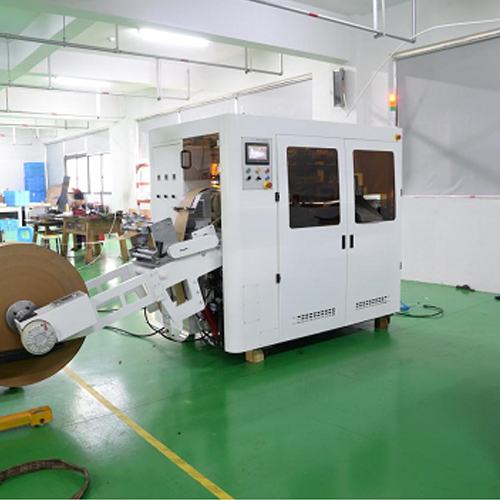

Paper Lid Making Machine

Automatic paper lid production from single-disc paper at 60–100 lids per minute.

Industrial paper lid forming machine designed for food service manufacturers requiring consistent disposable packaging production. Features single-disc forming technology that eliminates multi-component assembly while delivering secure-fit lids for soup bowls, coffee cups, and food containers at commercial production volumes.

View Products

Key Specs Overview Technical Specifications Applications Video FAQ Contact Related

Key Specs

Overview Points

Single-Disc Formation

Forms complete lids from one paper disc, eliminating assembly and reducing material costs per unit.

Paper Compatibility

Handles 250–350 g/m² coated papers, molding diameters Φ55-145 mm, heights 8-15 mm.

Production Speed

Rotary turret delivers 60–100 lids per minute through continuous forming, folding, ejection cycle.

Secure Closure

Folded sidewall design creates gentle-lock fit on cups and bowls, resisting liquid splashing.

Energy Efficiency

10 KW total power, 0.02 m³/min compressed air at 0.3 MPa working pressure consumption.

Quality Components

Mitsubishi inverter, Schneider contactors, DELIXI cylinders, HIWIN screws ensure precision.

Simple Operation

Touchscreen HMI and push-button controls enable single-operator management without training.

Compact Design

2600×1500×1800 mm footprint with safety enclosures fits standard production layouts.

Key Features

Single-Disc Forming, Lower Material Cost

Each lid is formed from one piece of paper, eliminating the need for separate rim or top components. This reduces raw material waste and simplifies the supply chain — operators stock one paper grade instead of managing multiple blanks.

Consistent Output at Production Scale

The rotary indexing turret cycles through feeding, forming, side folding, and lid ejection at 60–100 pieces per minute. Mitsubishi inverter-controlled drive allows operators to fine-tune speed to match paper weight and lid geometry without sacrificing forming quality.

Reliable Industrial Components

The machine uses Schneider contactors (CE-rated), DELIXI pneumatic cylinders (CE/CCC), and HIWIN precision screw rods to maintain tight tolerances across extended production runs. These components are globally available, keeping spare-part lead times short for international operators.

Single-Operator, Touchscreen Control

An integrated HMI displays machine status, production count, and parameter settings on one screen. Operators adjust lid diameter, height, and forming speed without mechanical changeover — mold changes handle the physical tooling, while the control system stores recipes for repeat orders.

Compact Layout with Built-In Safety

At 2600 × 1500 × 1800 mm and 2500 kg, the machine fits into existing packaging lines without structural reinforcement. Plexiglass safety guards and enclosed electrical cabinets protect operators from rotating tooling and high-voltage components while maintaining full visual access to the forming process.

Technical Specifications

Automatic paper lid/cover machine is the ideal equipment for production of paper soup bowl cover, coffee cup lid, paper container lid. The lid made by one disc paper, save cost, paper lid side folded and gentle lock on cup, can block little water out. The machine is easy to operate(a person), stable performance, high efficiency, it introduces the advanced technology completely, can save raw material and the energy consumption is low. It’s a preferred investment business project.

Part	Brand	Remark
Main Frame	Home made	Welding
Painting	Home made	Powder Coating / customized color
Inverter	MISUBISHI	Speed Adjustment
Contactor	Schneider	CE
Cylinder	DELIXI	CE / CCC
Screw Rod	HWIN	–
Motor	Local brand	CE/CCC

Data
Applicable paper	single and double coated paper, coated paper, coated paper (250-350g/m2)
Molding size	height (8-15)mm, diameter (Φ55-Φ145)mm
Maximum producing speed	60-100 / min
Working voltage	380V/50HZ
Equipment power	10KW
Air source	gas consumption 0.02m3 / min, working pressure 0.3Mpa
Equipment size	L2600W1500H1800(mm)
Weight	2500KG

Applications

Paper soup bowl and food container lid production

Coffee and hot beverage paper cup lid manufacturing

Disposable paper cup cover production for food service suppliers

Quick-service restaurant packaging lines

Eco-friendly paper packaging manufacturing replacing plastic lids

Contract packaging operations producing lids for multiple cup sizes

Video

FAQ

What applications is Paper Lid Making Machine used for?

Paper Lid Making Machine is widely used in: Paper soup bowl and food container lid production; Coffee and hot beverage paper cup lid manufacturing; Disposable paper cup cover production for food service suppliers; Quick-service restaurant packaging lines.

What is the warranty for NTBOBO machines?

All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.

What payment terms does NTBOBO accept?

We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
