Hydraulic Paper Plate Making Machine
Dual-station hydraulic paper plate machine: 80–140 pcs/min with precision forming.
Industrial hydraulic forming machine engineered for high-volume disposable tableware manufacturers requiring consistent output across multiple plate sizes. Desktop architecture separates transmission components from molds, enabling rapid changeovers and reduced maintenance downtime for continuous production environments.
Key Specs
Key Specs
Power
Weight
Capacity
Overview Points
High-Speed Production
Hydraulic Forming
Desktop Layout
Waste Reduction
PLC Control
Clean Operation
Material Compatibility
Line Integration
Key Features
A Taiwan-sourced hydraulic motor paired with a 5-ton oil cylinder completes each forming cycle 15–20 seconds faster per station than conventional machines. Delta frequency transformers regulate motor speed for stable, repeatable output across extended production runs.
Photoelectric sensors from Shanghai Qide handle both normally open and normally closed detection, enabling accurate sheet alignment before each press cycle. Mechanical feeding replaces unreliable gravity-drop methods, cutting material waste to roughly 1/1000 and maintaining near-100% finished product yield.
The desktop architecture isolates all drive components beneath the work surface and keeps molds accessible on top. Operators can swap molds, clean forming surfaces, and perform routine maintenance without dismantling drive assemblies — reducing downtime between size changeovers.
Critical parts are sourced from proven suppliers: Airtac (Taiwan) solenoid valves, Harbin bearings, Delta frequency transformers, and Jiangsu Rong Dali stainless steel heating pipes. This supply chain prioritizes component longevity and global parts availability for after-sales support.
PLC-based intelligent control allows direct connection to paper plate packaging machines, labeling systems, and film wrappers. The 380V/50Hz, 8kW power draw and compact 3700×1200×1900mm footprint fit standard factory floor layouts without additional infrastructure.
Technical Specifications
This type machine high-speed & intelligent paper plate machine uses desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk, molds are on the desk, this layout is convenient for cleaning and maintenance. The machine adopts mechanical transmission, hydraulic forming and pneumatic blowing paper, which has the advantages of stable performance and easy operation & maintenance. For electrical parts,PLC, photoelectric tracking, auto intelligent & safe fabrication, can directly support production line.
| Paper Plate Size: | 4-15” |
| Paper Grams: | 100-800g/m2 |
| Paper Materials: | Base paper, whiteboard paper, white cardboard, aluminum foil paper or others |
| Capacity: | Double Stations 80-140pcs/min |
| Power Requirements: | 380V 50HZ |
| Total Power: | 8KW |
| Weight:: | 1400kg |
| Specifications: | 3700×1200×1900mm |
| Air Supply Requirement: | 0.4Mpa, 0.3cube/min |
| Other Notes: | Customize |
| Oil Cylinder: | ML-63-150-5T-X |
| Cylinder Stroke: | 150mm |
| SPARE PARTS | SUPPLIER |
| Hydraulic Motor | Zhejiang Zhonglong |
| Normally Closed Photoelectric | Shanghai Qide |
| Stainless Steel Heating Pipe | Jiangsu Rong Dali |
| Oil Pump | Taiwan |
| Counter Switch | Yueqing Tiangao |
| Normally Open Photoelectric | Shanghai Qide |
| Solenoid Valve | Taiwan Airtac |
| Bearing | Harbin |
| Temperature Sensor | Shanghai Xingyu |
| AC Contactor | Yueqing Tiangao |
| Frequency transformer | Delta |
Applications

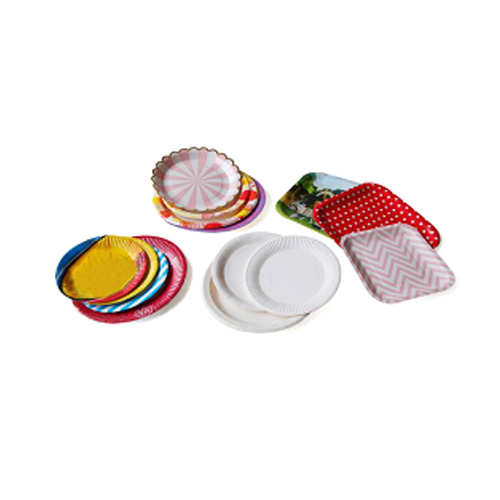

Mass production of disposable paper plates for catering and food service
Aluminum foil plate and tray manufacturing for airline and takeaway packaging
White cardboard plate forming for party supplies and event tableware
Custom non-standard plate production for specialty food packaging
Small and medium enterprises entering the disposable tableware market
Integrated paper plate production lines with automated packaging and labeling
Video
FAQ
The key specifications of Hydraulic Paper Plate Making Machine include: Power: 380V 50HZ, Weight: 1400kg, Capacity: Double Stations 80-140pcs/min. Contact us for the full specification sheet.
Hydraulic Paper Plate Making Machine is widely used in: Mass production of disposable paper plates for catering and food service; Aluminum foil plate and tray manufacturing for airline and takeaway packaging; White cardboard plate forming for party supplies and event tableware; Custom non-standard plate production for specialty food packaging.
All NTBOBO machines come with a 1-year warranty from the date of Bill of Lading. Our engineering team provides 24-hour technical support throughout the warranty period.
We accept 30% down payment by T/T (Telegraphic Transfer), with the balance due before shipment. Other payment arrangements can be discussed for long-term partners.
Standard delivery is within 10-35 working days after receiving the down payment, depending on the machine model and customization requirements.
