3d tube bender send to Ukraine

Time:2021-11-12 Comment:

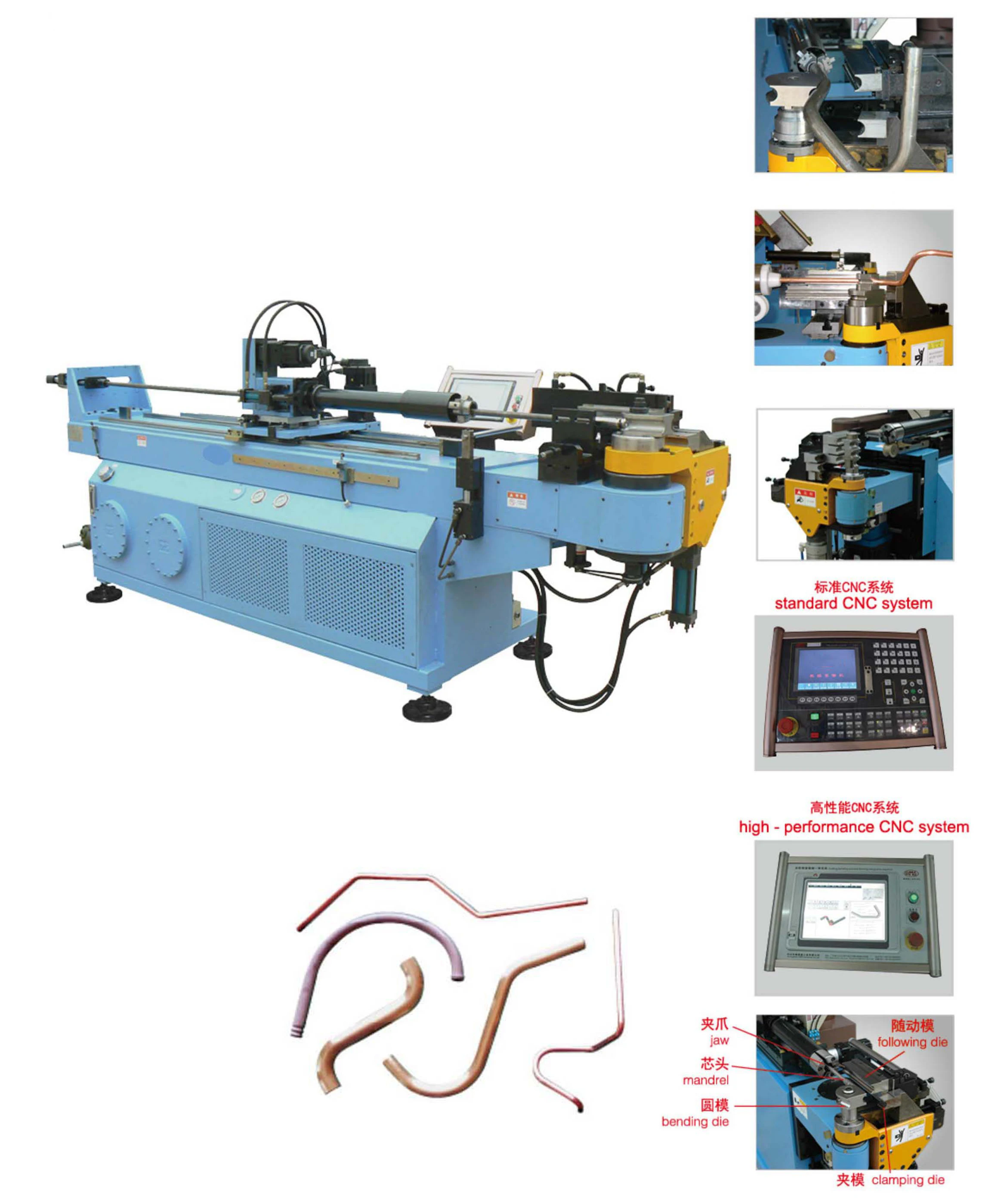

CNC 3D TUBE BENDER MACHINE

The CNC tube bender used to pipe (such as: brass, aluminum, iron pipe) into a three-dimensional curve of the pipeline. Widely used in air conditioning, locomotive and other industries.
Model
T-20
Max bending diameter× Thickness(mm)
Φ20×2.0(Copper)
Max bending R(mm)
R100
Min bending R(mm)
R10
Tube length(Max mm)
1200/ 2000mm
Integrated bending speed (seconds per bend)
3S/ Bend (does not include loading and unloading, changing the mold and changing the head)
Power
380V ±10%\ 50Hz
Total power
7.5Kw
Dimension (L×W×H (mm)
3200×1000×1500
Weight (Ton)
2.1
