Copper capillary tube cut to length and stripping machine send to Turkey

Time:2020-07-10 Comment:




Product Description

Product Application

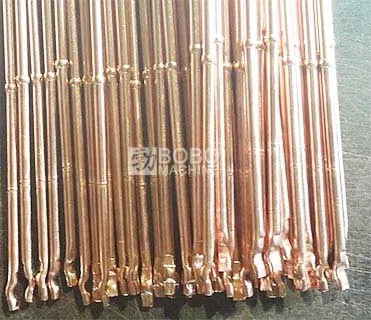

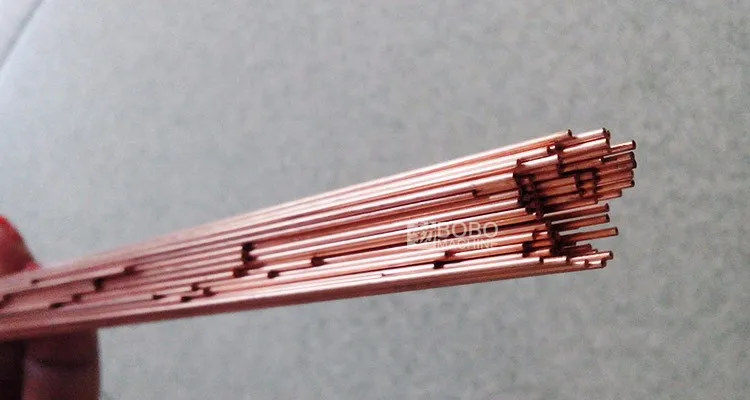

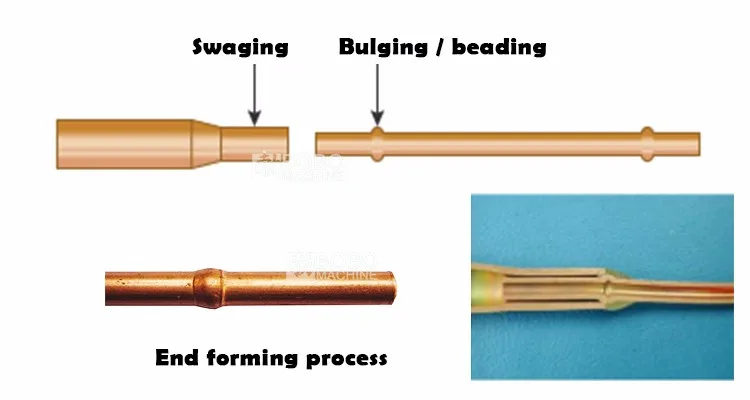

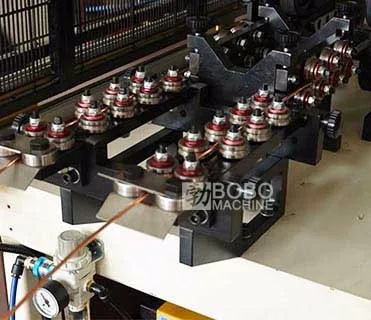

Automatic copper capillary tube cut off machine with tube end forming process is special designed for the capillary tube process, including the straightening, cutting, end forming (beading, bulging, flaring, etc). The cutting can be chipless from coil copper tube, and there is no shrinking or necking on the cutting section.

Main technical data

No.
Parameter
Data
1
Suitable capillary tube diameter
1.8-4.0 mm
2
Max. Capillary tube wall thickness
0.8 mm
3
Cutting quantity in one time
2 pcs
4
Cutting length
120 ~ unlimited
5
Feeding method
ball screw feeding
6
Feeding stroke
500mm
7
End forming
Customized
8
Cutting end shrinking
no shrinking
9
Air compressure
0.4-0.6 MPa
