Condenser evaporator steel bundy aluminum copper pipe tube swagging shrinking necking end forming machine send to India

Time:2020-07-06 Comment:

Product Application

automatic Refrigeration copper tube shrinking machine aluminum tube reducing machine

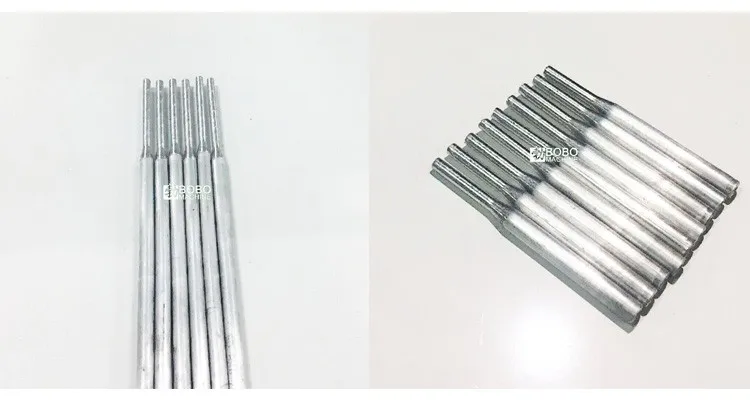

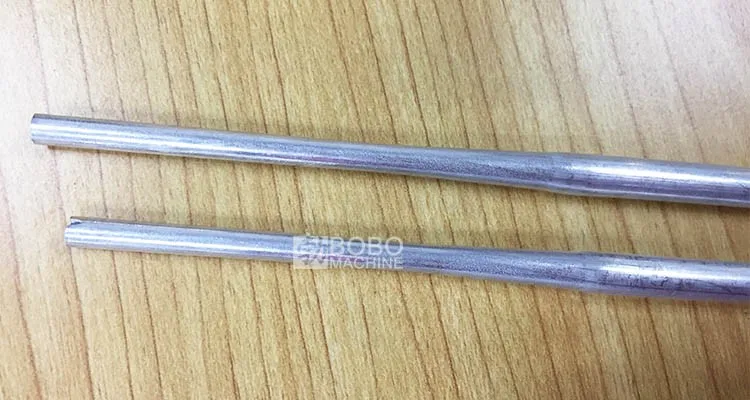

Automatic Shrinking machine is specially used to narrow the diameter of copper, aluminum or steel pipe in order to make good connection during condenser and evaporator manufacturing. It is with PLC control, auto feeding, auto shrinking and auto discharging, easy operation, high efficiency.

NO.
Item
Data
1
Input voltage
3 phase 4 lines, 50HZ
2
Pipe diameter range
4-20mm
3
Working pressure
0.5-0.6Mpa
4
Shrinking length
Normal type 5-50mm
5
Shrinking length
Extended type 10-95mm
6
Speed
10-30 pieces / min
7
Pipe length range
60-305mm
8
Bore control range
Φ1.9~Φ10±0.05
9
Operation
Manual feeding, automatic shrinking
10
Power
1.5kw
11
Dimension
1840*600*1180mm
