Automobile Suspension Spring Making Machine, Spring Coiling Machine Send to Costa Rica

Time:2021-02-26 Comment:

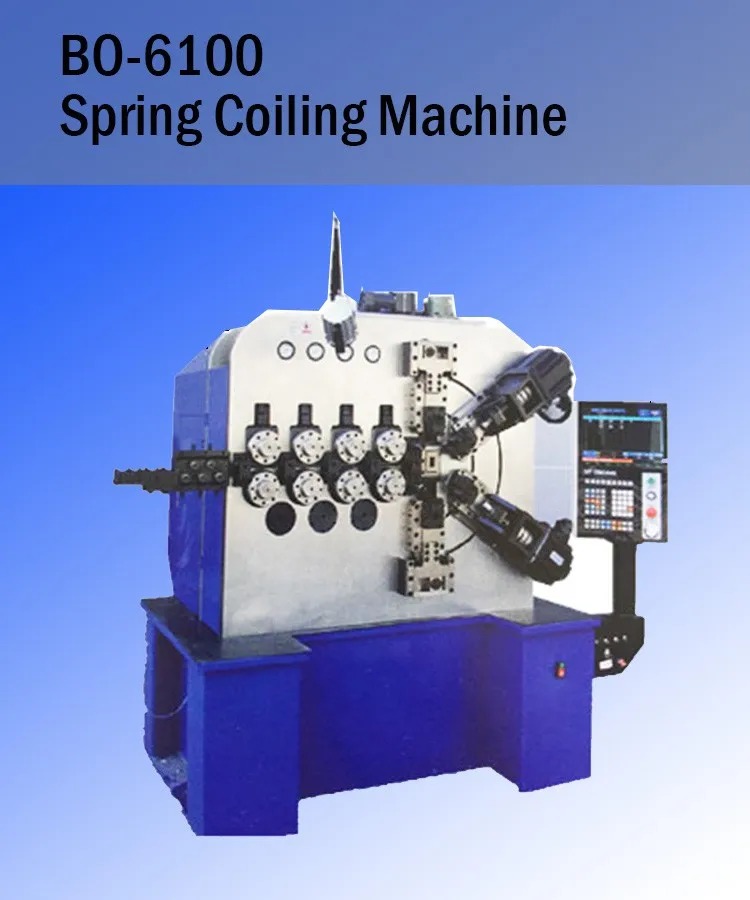

Automatic cnc spring forming machine for car

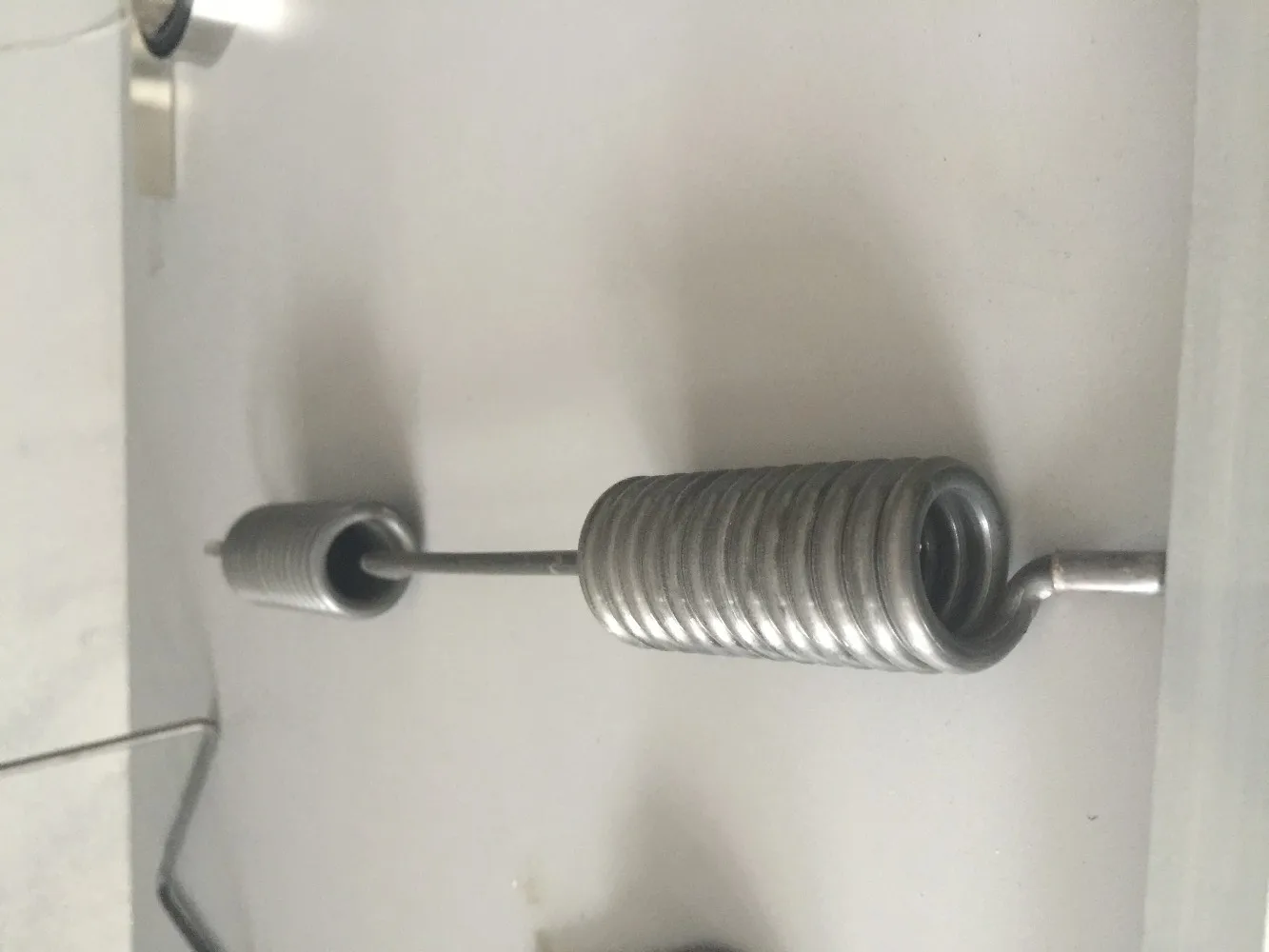

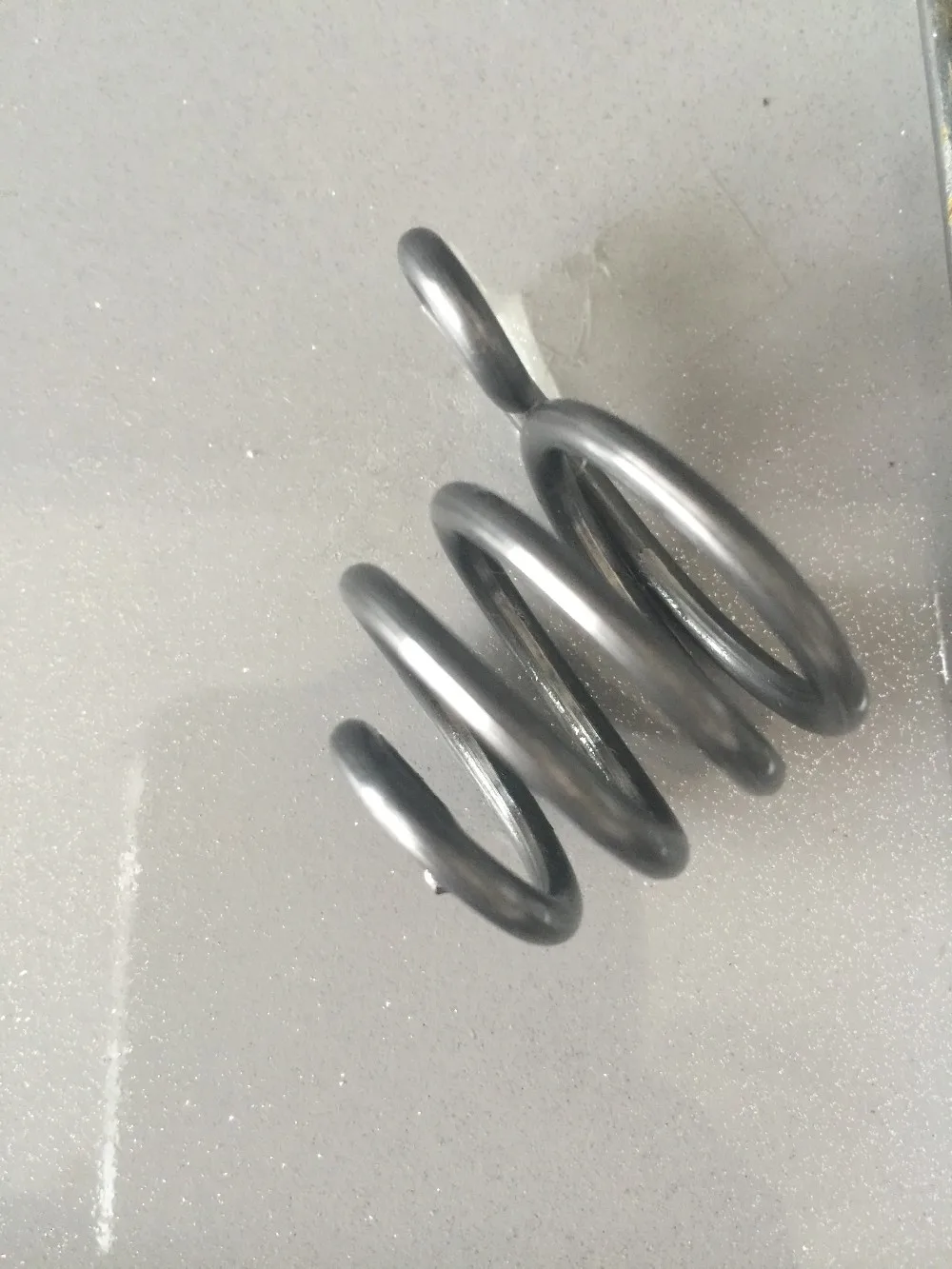

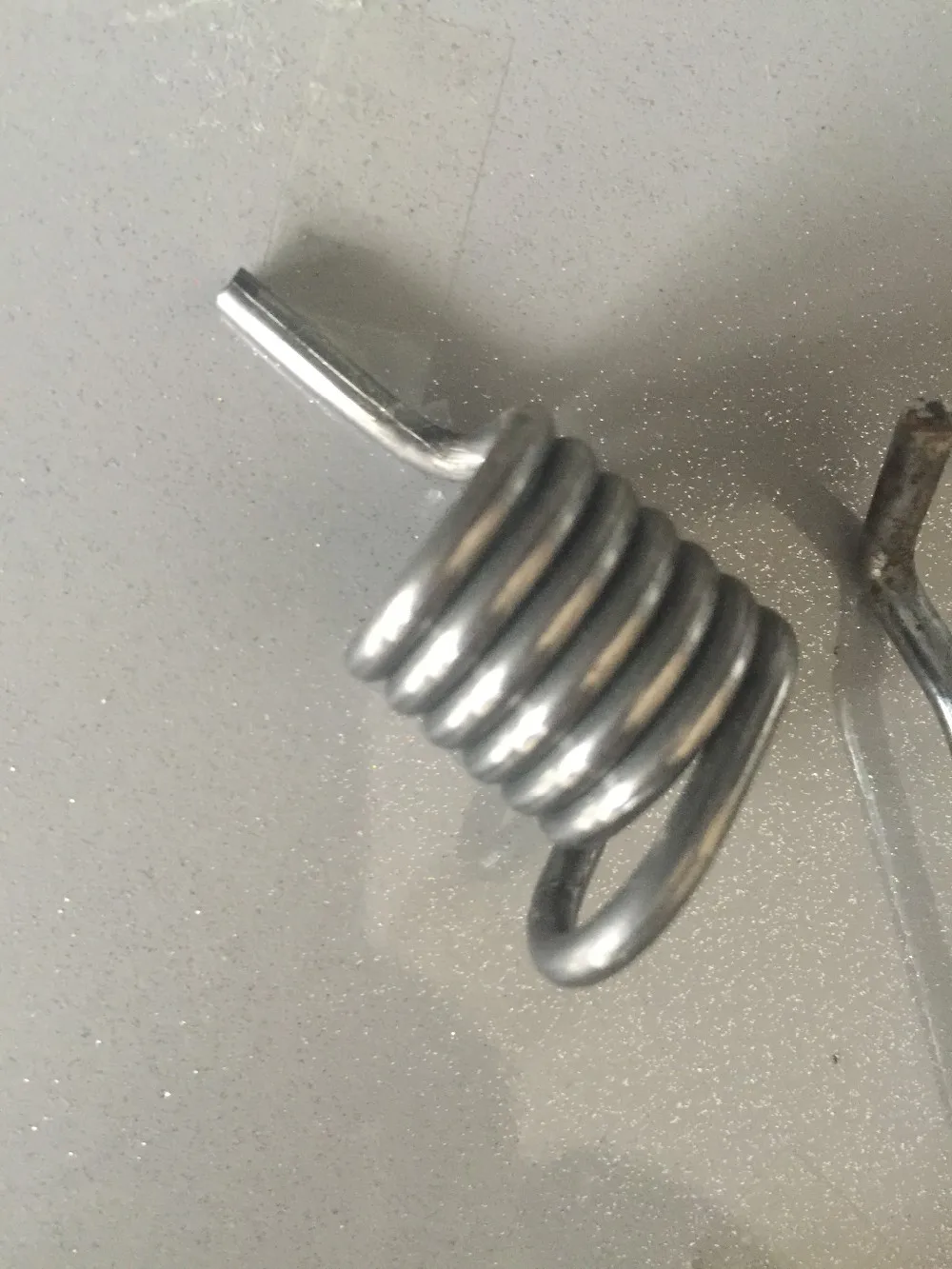

Automatic cnc spring forming machine for car can be used to produce every kinds of big straight spring, tower spring, pullback spring, double twist spring, tension spring, rectangle spring, clockwork spring, fancy spring, deformed spring, and various kinds of wire forming etc..

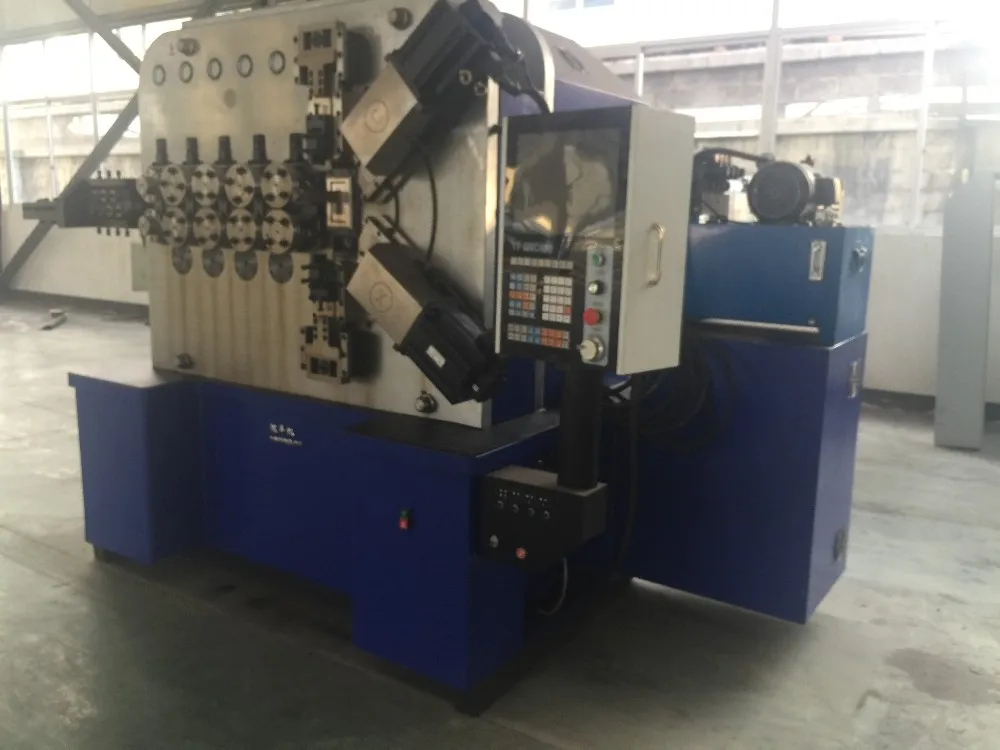

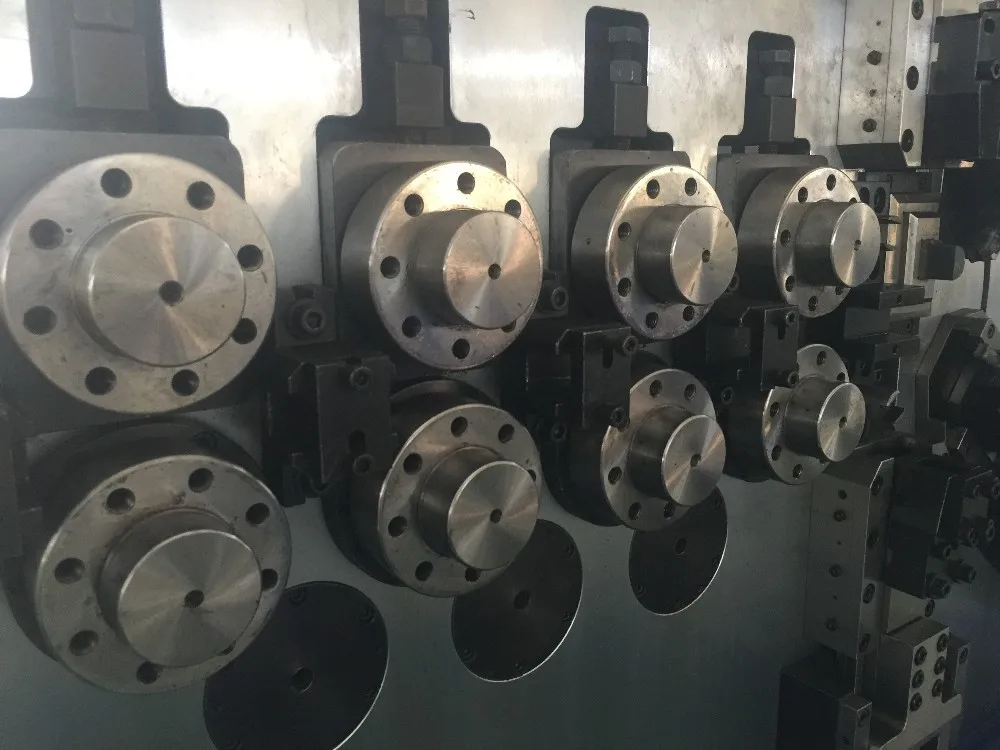

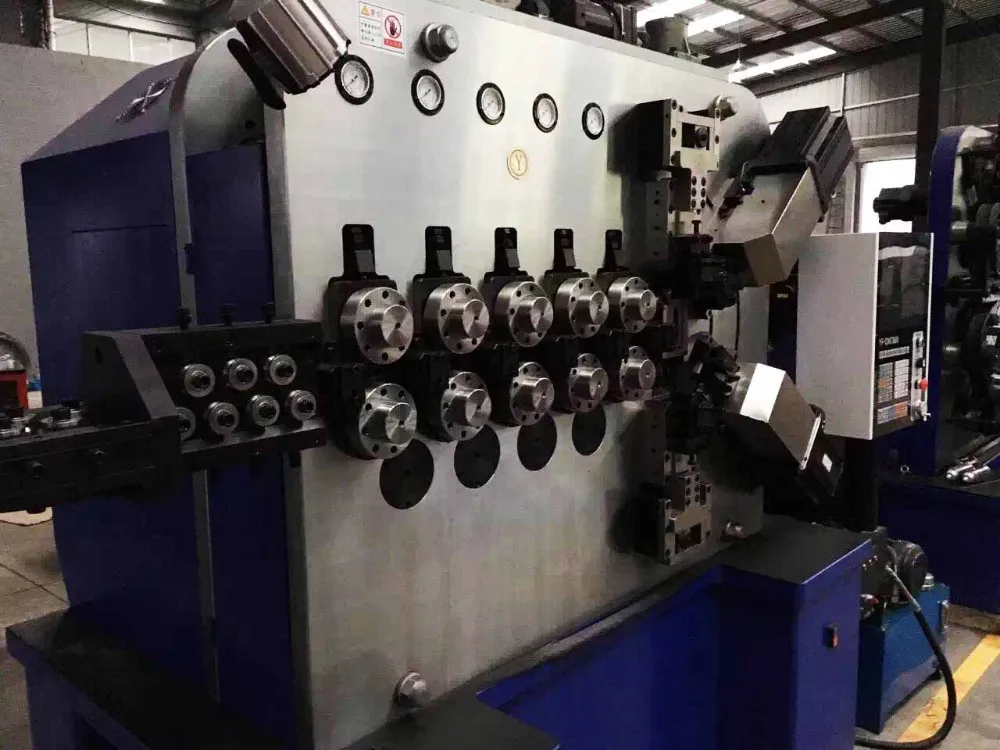

Detailed Images
Detailed Parameter

Model
BO-6100
1
Wire size
Φ2.5-Φ10.0mm
2
Outside diameter
MaxΦ140mm
3
Wire feed
±0.01~±9999.99
4
Speed
Max150pcs/min
5
Cylinder probe
2
6
Outer diameter motor 1
4.4kw
7
Outer diameter motor 2
4.4kw
8
Cutting knife servo motor 1
7.0kw
9
Cutting knife servo motor 2
7.0kw
10
Wire feeding motor
30kw
11
Pitch servo motor
2.9 kw
12
AC
380v customized
13
Dimensions
3000X1500X2200mm
14
Weight
5800KG
15
Item
Automatic cnc spring machine for car
