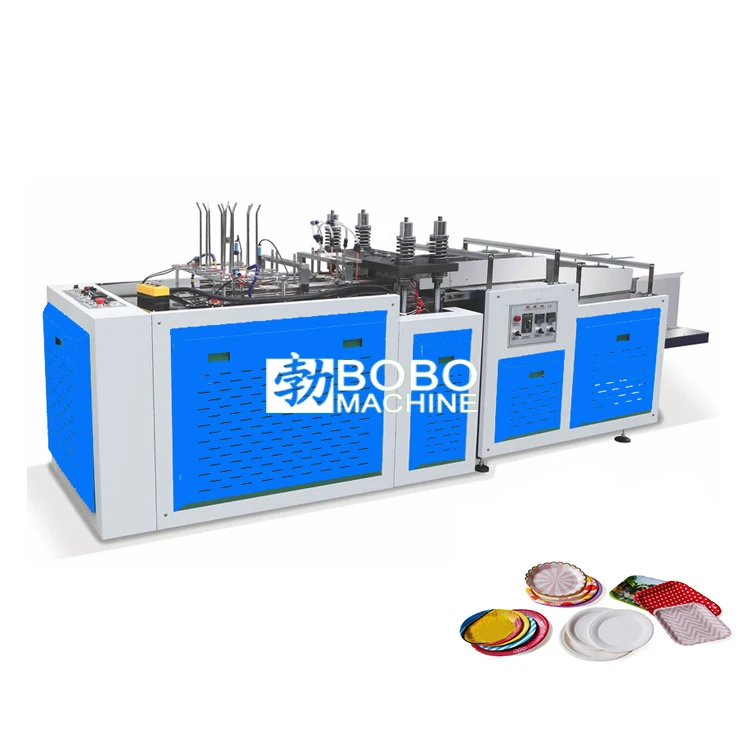

Automatic Paper Plate Dish Printing and Making Machine Send to USA

Time:2021-03-12 Comment:
This type machine high-speed & intelligent paper plate machine is designed according to the market needs, it is an automatic machine with automatic paper feeding, forming, counting etc. and can produce different shaped paper plate, also suitable for production line. It has the advantage of high speed , stable performance, safety operation, energy saving and more humanized designing. It adopts the cam with the machine, the biggest pressure can reach 4t, so it is more environmental protection and energy saving compared with air cylinder. It is the ideal equipment to produce different plate, and that can be achieved by changing different molds.

Features

1.Independent research and development, the latest products, using the fast oil pressure system, each station is 15 - 20 minutes faster than ordinary machine 2.Send paper using mechanical work, stable performance. Compared to the ordinary type of paper drop technology, the waste rate is greatly reduced to 1/1000 3.Can be directly with the packaging machine (paper disc packaging labeling machine (film), good packaging and labeling). Suitable for production. 4.Can automatically produce all kinds of non-standard products, finished product rate of one hundred percent, solved the problem of ordinary machines can not complete
Specification
Main Technical Parameters
Paper Plate Size
3-6.5”
Paper Grams
180-500g/m2
Paper Materials
Base paper, whiteboard paper, white cardboard, aluminum foil paper or others
Capacity
Double Stations 90-160pcs/min
Power Requirements
380V 50HZ
Total Power
8KW
Weight
800kg
Specifications
3700×900×1500mm
Air Supply Requirement
0.4Mpa, 0.3cube/min
Other Notes
Customize
